| Item | Part No. | Part Name | Qty | Serial No. |

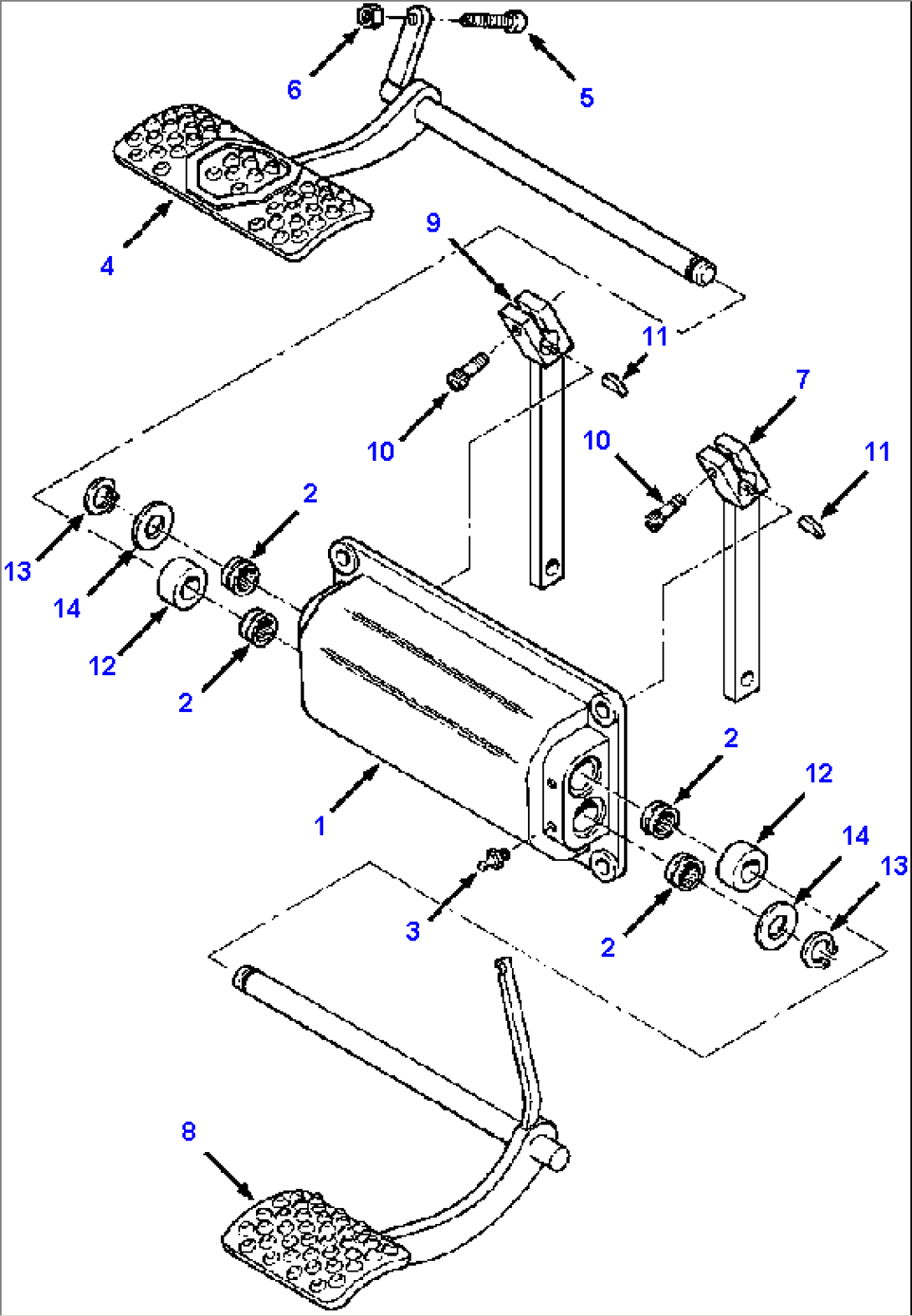

| (1287 001 H91) | SUPPORT AND PEDALS | |||
| (1220 166 H92) | .SUPPORT ASSY, PEDAL | |||
| 1 | 1219 902 H2 | ..SUPPORT, PEDAL | ||
| 2 | 1220 100 H91 | ..BEARING, DOUBLE SEALED | ||
| 3 | 109 461 | ..FITTING, LUBE | ||
| 4 | 1220 104 H91 | .PEDAL, BRAKE | ||
| 5 | 728 346 C1 | .BOLT, ADJUSTING | ||
| 6 | 905 262 R1 | .NUT, LOCK - M10 | ||
| 7 | 1220 308 H91 | .LEVER, BRAKE | ||
| 8 | 1287 043 H91 | .PEDAL, DECELERATOR | ||
| 9 | 1220 307 H91 | .LEVER, DECELERATOR | ||
| 10 | 1220 770 H1 | .BOLT, MOUNTING - M10x25 | ||
| 11 | 728 660 C1 | .KEY, 6MM | ||
| 12 | 1219 967 H1 | .SPACER, PEDAL | ||
| 13 | 933 123 R1 | .RING, RETAINING | ||
| 14 | 103 346 | .WASHER, FLAT - 13/32 | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
