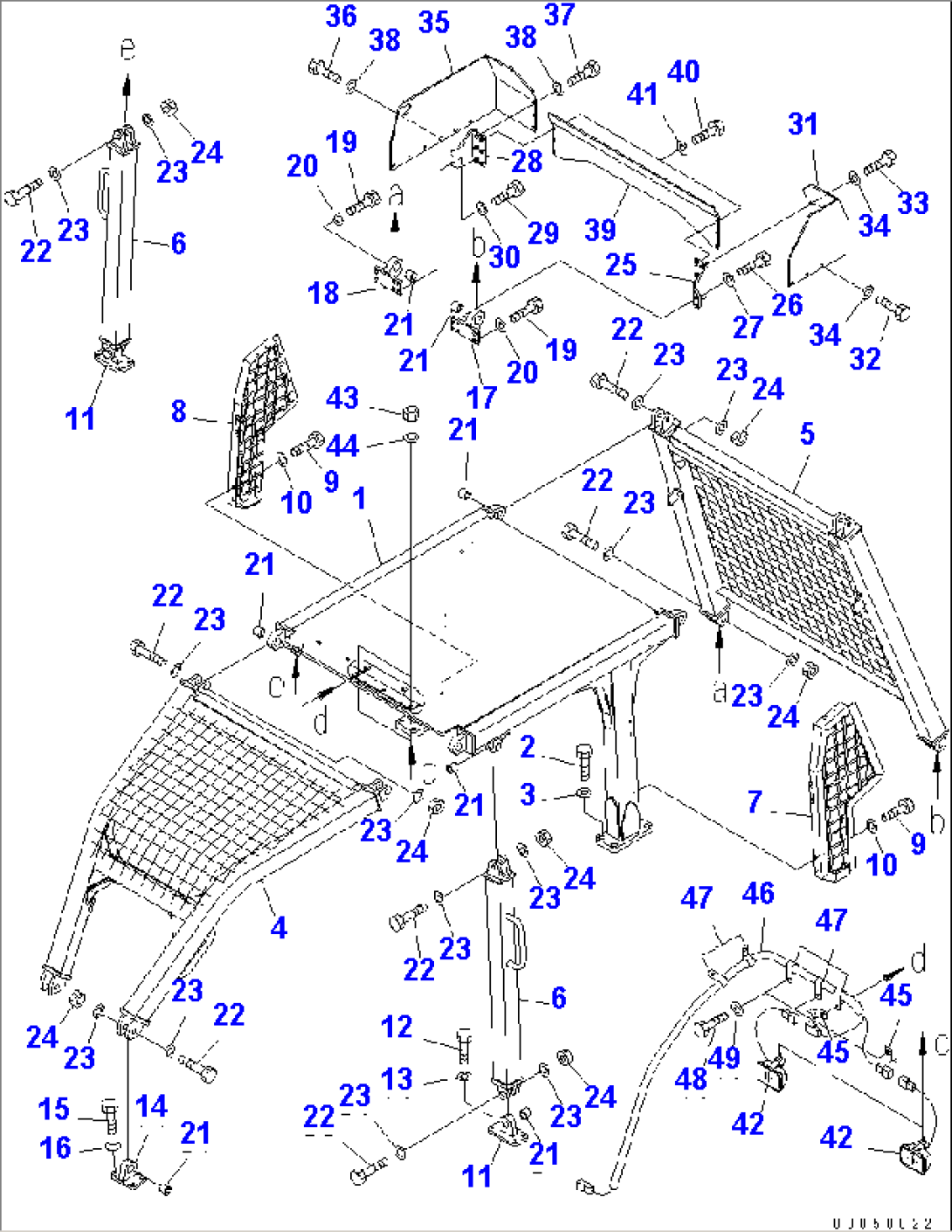

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-X06-2111 | GUARD | 1001- | |
| 2 | 01010-82460 | BOLT | 1001- | |
| 3 | 01643-32460 | WASHER | 1001- | |
| 4 | 134-X06-2121 | SWEEP | 1001- | |
| 5 | 134-X06-2131 | GUARD | 1001- | |
| 6 | 134-X06-2211 | POLE | 1001- | |
| 7 | 134-X06-2350 | NET | 1001- | |
| 8 | 134-X06-2360 | NET | 1001- | |
| 9 | 01010-81230 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 134-X06-2240 | BRACKET | 1001- | |
| 12 | 01010-81645 | BOLT | 1001- | |
| 13 | 01643-31645 | WASHER | 1001- | |
| 14 | 134-X06-2270 | BRACKET | 1001- | |
| 15 | 01010-81645 | BOLT | 1001- | |
| 16 | 01643-31645 | WASHER | 1001- | |
| 17 | 134-X06-2250 | BRACKET | 1001- | |
| 18 | 134-X06-2260 | BRACKET | 1001- | |
| 19 | 01010-81645 | BOLT | 1001- | |
| 20 | 01643-31645 | WASHER | 1001- | |
| 21 | 134-X06-2230 | CUSHION | 1001- | |
| 22 | 01011-82420 | BOLT | 1001- | |
| 23 | 01643-32460 | WASHER | 1001- | |
| 24 | 01596-02419 | NUT | 1001- | |
| 25 | 134-X06-2170 | PLATE | 1001- | |
| 26 | 01010-81230 | BOLT | 1001- | |
| 27 | 01643-31232 | WASHER | 1001- | |
| 28 | 134-X06-2180 | PLATE | 1001- | |
| 29 | 01010-81230 | BOLT | 1001- | |
| 30 | 01643-31232 | WASHER | 1001- | |
| 31 | 134-X06-2151 | COVER | 1001- | |
| 32 | 01010-81230 | BOLT | 1001- | |
| 33 | 01010-81240 | BOLT | 1001- | |
| 34 | 01643-31232 | WASHER | 1001- | |
| 35 | 134-X06-2161 | COVER | 1001- | |
| 36 | 01010-81230 | BOLT | 1001- | |
| 37 | 01010-81240 | BOLT | 1001- | |
| 38 | 01643-31232 | WASHER | 1001- | |
| 39 | 134-X06-2191 | COVER | 1001- | |
| 40 | 01010-81240 | BOLT | 1001- | |
| 41 | 01643-31232 | WASHER | 1001- | |
| 42 | 134-06-61410 | WORK LAMP ASS'Y | 1001- | |
| 43 | 01582-11411 | NUT | 1001- | |
| 44 | 01643-31445 | WASHER | 1001- | |
| 45 | 08053-01512 | CLIP | 1001- | |
| 46 | 134-X06-2290 | WIRING HARNESS | 1001- | |
| 47 | 04434-51512 | CLIP | 1001- | |
| 48 | 01010-81220 | BOLT | 1001- | |
| 49 | 01643-31232 | WASHER | 1001- |
