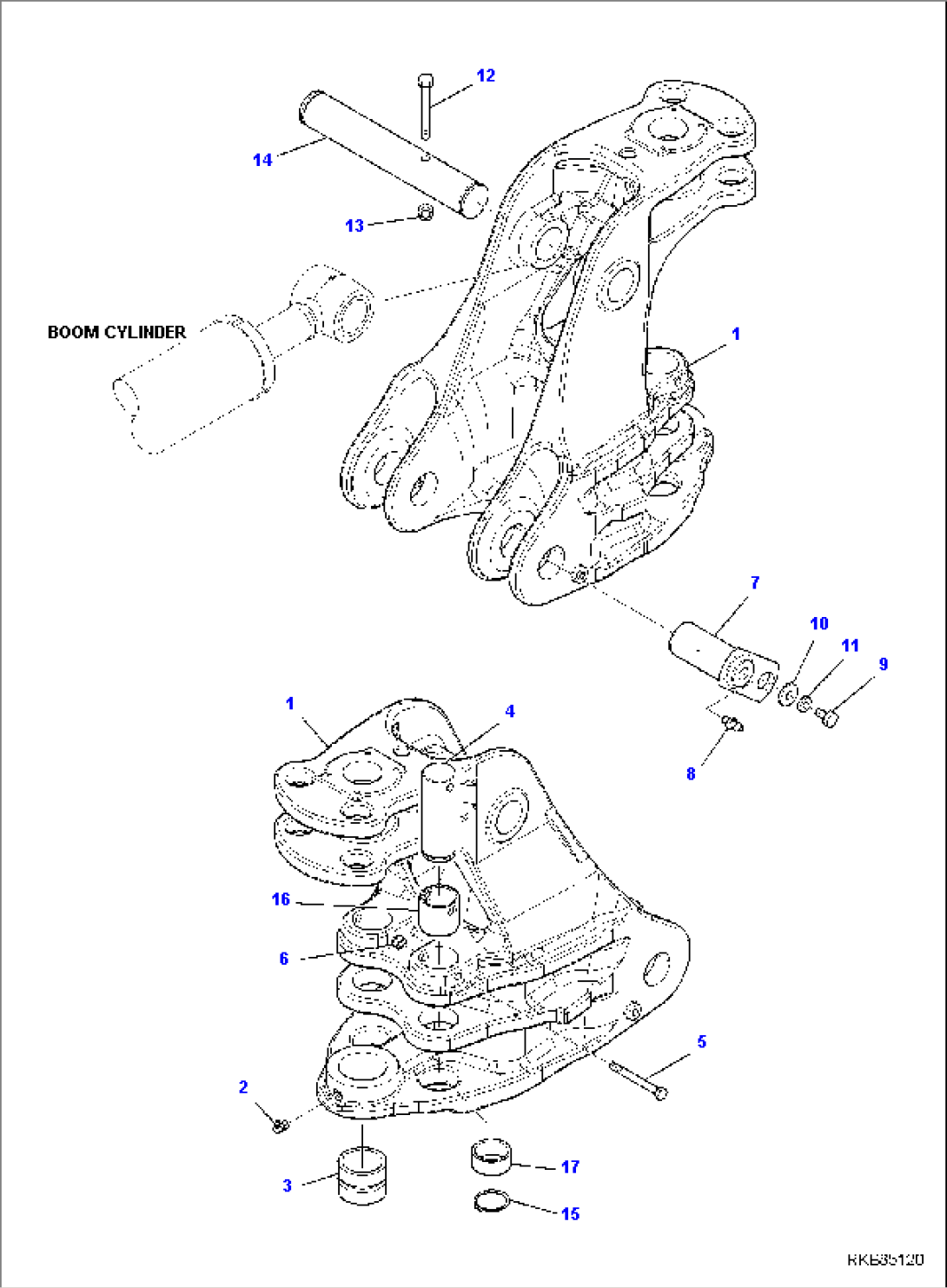

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-2512 | SWING BRACKET, ASSEMBLY | F80243- | |
| 2 | 37A-09-9G004 | FITTING, GREASE | F80243- | |
| 3 | 42N-856-2520 | BUSHING | F80243- | |
| 4 | 42N-856-2222 | PIN | F80243- | |
| 5 | 01011-81210 | BOLT | F80243- | |
| 6 | 21D-09-24200 | NUT | F80243- | |
| 7 | 42N-856-1211 | PIN | F80243- | |
| 8 | 21D-09-89140 | FITTING, GREASE | F80243- | |
| 9 | 01010-81225 | BOLT | F80243- | |
| 10 | 42N-856-2240 | WASHER | F80243- | |
| 11 | 01643-11232 | WASHER | F80243- | |
| 12 | 01011-81210 | BOLT | F80243- | |
| 13 | 21D-09-24200 | NUT | F80243- | |
| 14 | 42N-856-1222 | PIN | F80243- | |
| 15 | 04064-05520 | RING, SNAP | F80243- | |
| 16 | 42N-856-5280 | BUSHING | F80243- | |
| 17 | 42N-856-5290 | BUSHING | F80243- |
