| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20M-25-81201 | CIRCLE | 1027- | |
| 2 | 01010-81045 | BOLT | 1027- | |
| 3 | 01010-81035 | BOLT | 1027- | |
| 4 | 01643-31032 | WASHER | 1027- | |
| 5 | 04020-01228 | PIN,DOWEL | 1027- | |
| 6 | 07020-00000 | FITTING,GREASE | 1027- |
Поиск по каталогу

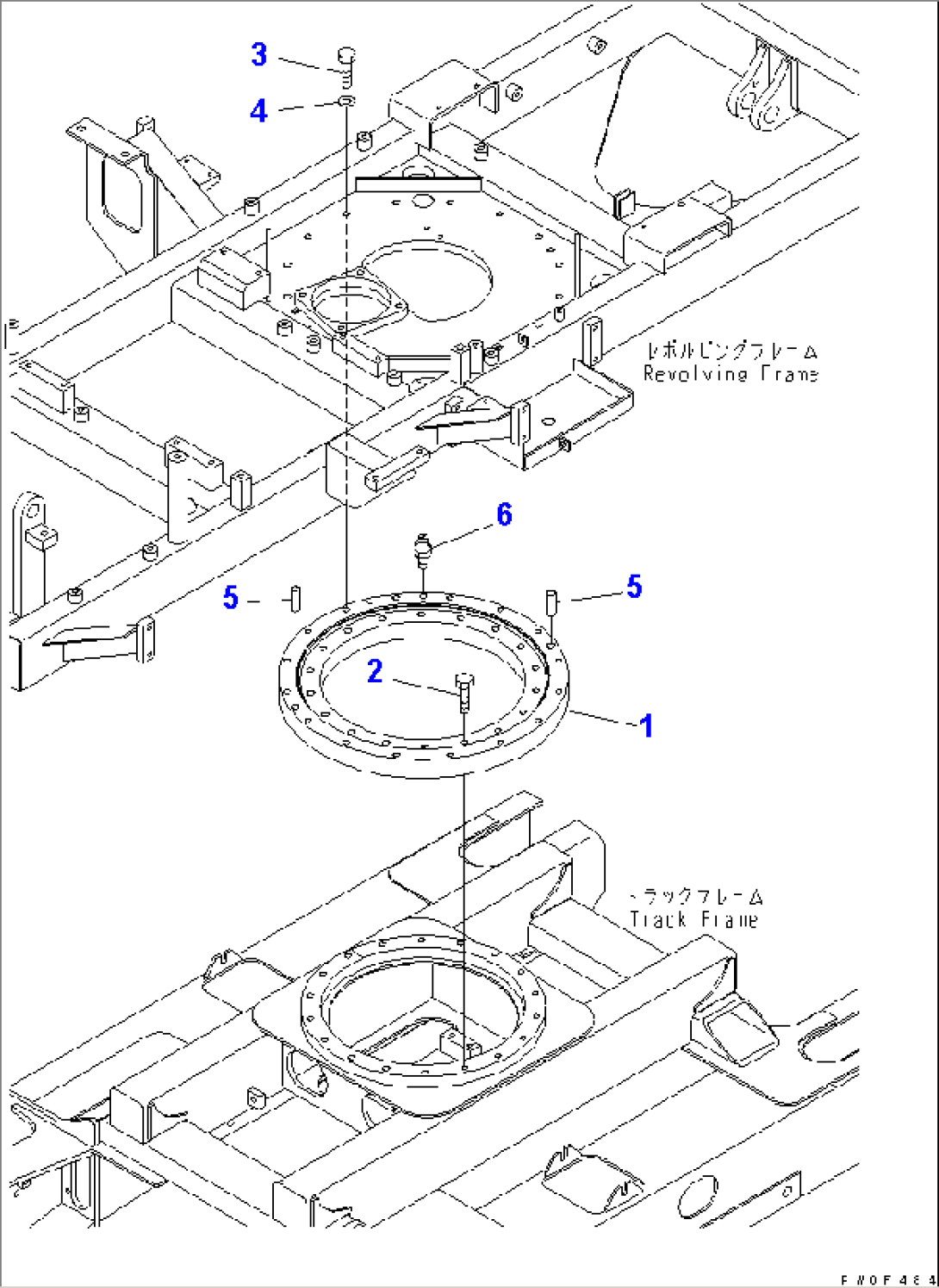

SWING CIRCLE
| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20M-25-81201 | CIRCLE | 1027- | |
| 2 | 01010-81045 | BOLT | 1027- | |
| 3 | 01010-81035 | BOLT | 1027- | |
| 4 | 01643-31032 | WASHER | 1027- | |
| 5 | 04020-01228 | PIN,DOWEL | 1027- | |
| 6 | 07020-00000 | FITTING,GREASE | 1027- |
