| Item | Part No. | Part Name | Qty | Serial No. |

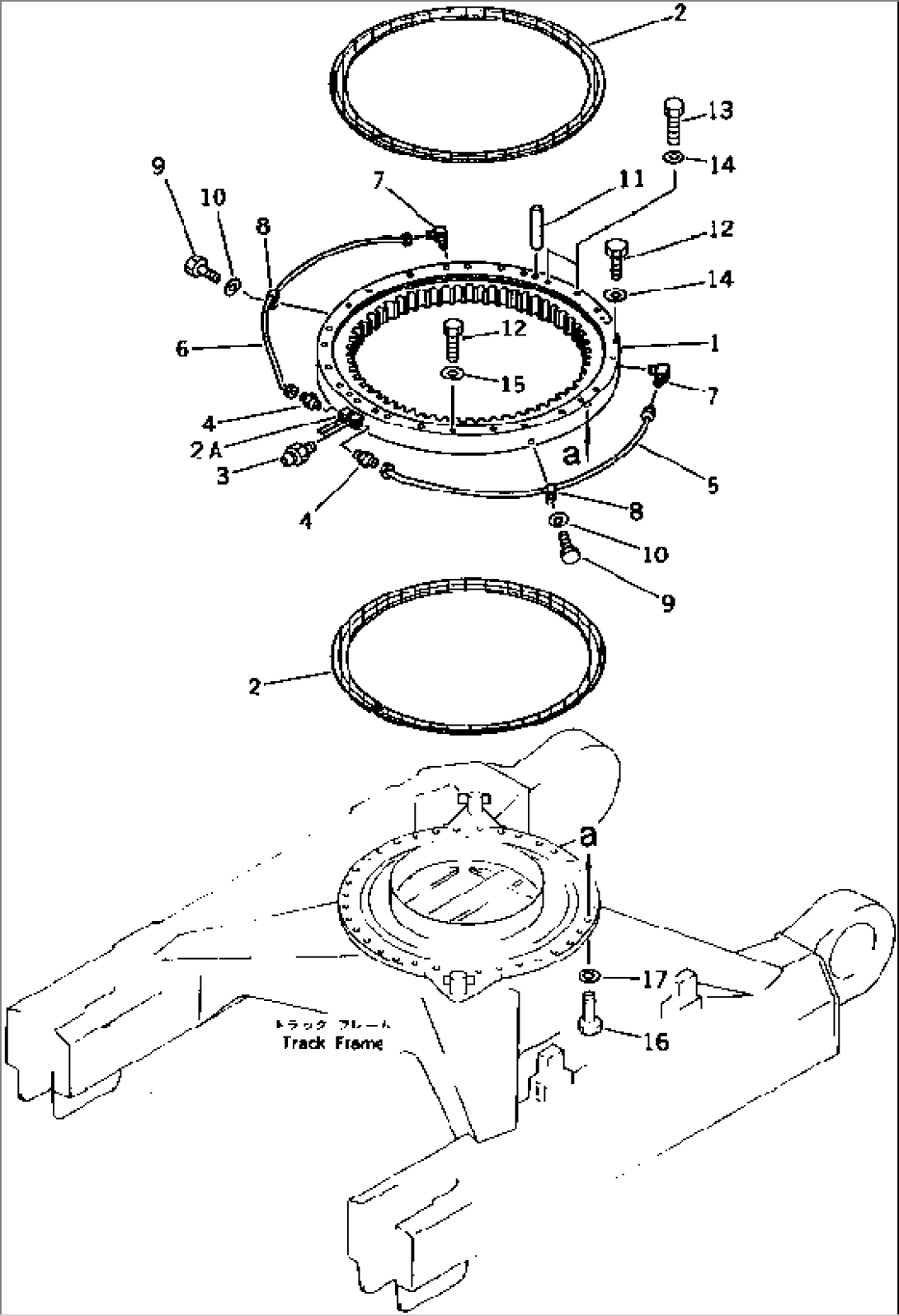

| 205-25-00023 | SWING CIRCLE ASS'Y | 15002-15007 | ||
| \0\205-25-00022 | SWING CIRCLE ASS'Y | 15001-15001 | ||
| 1 | \6\ | CIRCLE,SWING | 15001-@ | |
| 2 | 205-25-71151 | SEAL | 15001-@ | |
| 2A | 205-25-71280 | NIPPLE | 15001-@ | |
| 3 | 07020-00000 | FITTING,GREASE | 15001-@ | |
| 4 | 07213-50813 | CONNECTOR | 15001-@ | |
| 5 | 205-25-71220 | TUBE | 15001-@ | |
| 6 | 205-25-71230 | TUBE | 15001-@ | |
| 7 | 207-70-11740 | ELBOW | 15001-@ | |
| 8 | 08036-00814 | CLIP | 15001-@ | |
| 9 | 01010-51016 | BOLT | 15001-@ | |
| 10 | 01643-31032 | WASHER | 15001-@ | |
| 11 | 04020-01842 | PIN,DOWEL | 15002-@ | |
| 04020-01842 | PIN,DOWEL | 15001-15001 | ||
| 12 | 205-25-71250 | BOLT | 15001-@ | |
| 13 | 205-25-71260 | BOLT | 15001-@ | |
| 14 | 01643-32260 | WASHER | 15002-@ | |
| 01643-32260 | WASHER | 15001-15001 | ||
| 15 | 205-25-71270 | WASHER | 15002-@ | |
| 205-25-71270 | WASHER | 15001-15001 | ||
| 16 | 01018-32070 | BOLT | 15001-@ | |
| 17 | 01643-32060 | WASHER | 15001-@ |
