| Item | Part No. | Part Name | Qty | Serial No. |

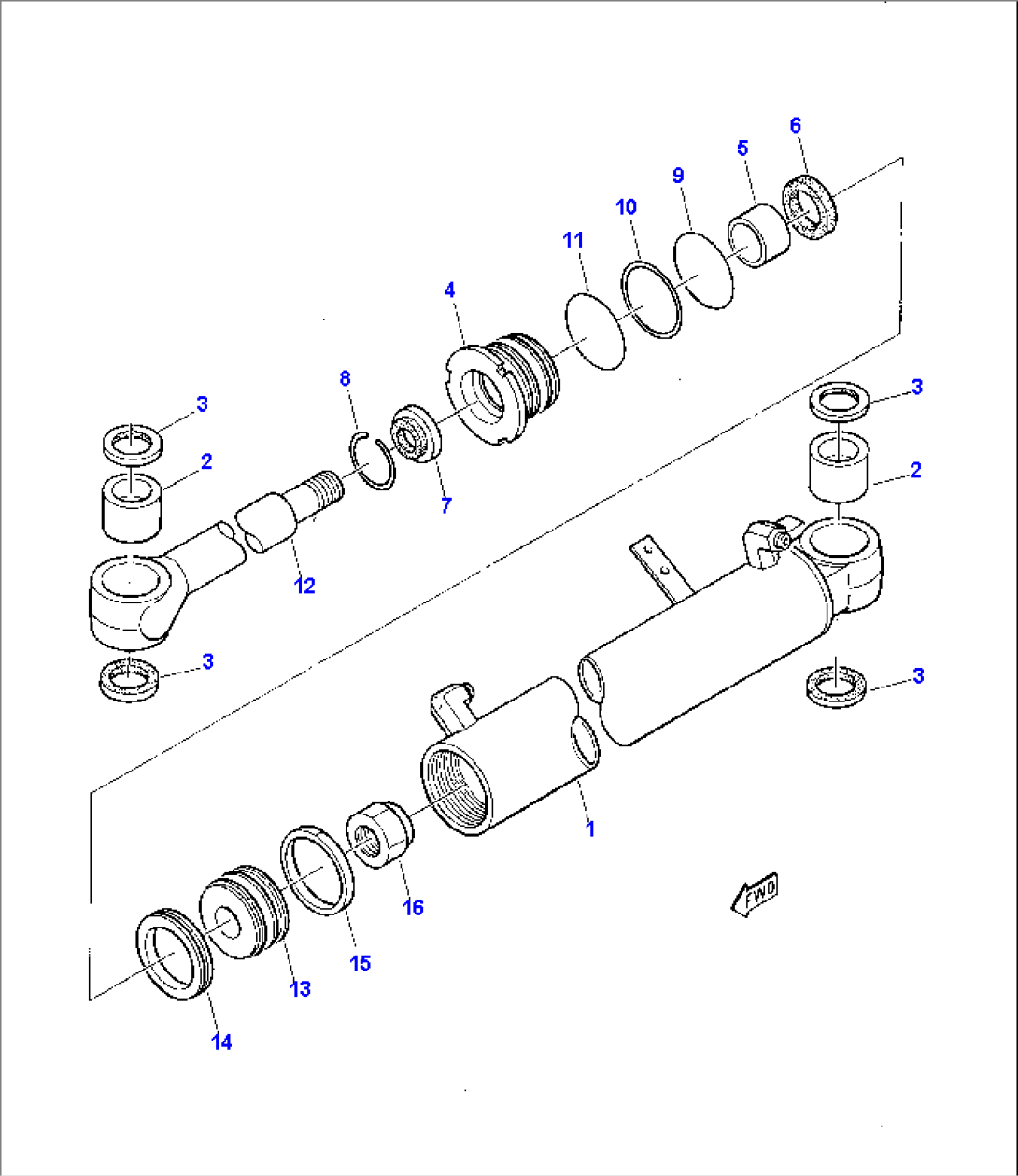

| \0 | 200064618 | SWING CYLINDER, ASSY. | ||
| 1 | 200071035 | CYLINDER | ||
| 2 | 390615005 | BUSHING | ||
| 3 | 500466153 | CYLINDER HEAD | ||
| 4 | 500466169 | BUSHING | ||
| 5 | 855661210 | RING, SNAP | ||
| 6 | 200080375 | PISTON ROD | ||
| 7 | 500466155 | CONTROL SPOOL | ||
| 8 | 801880230 | NUT | ||
| \8 | 878000204 | KIT, GASKET | ||
| 9 | \6\ | GASKET | ||
| 10 | \6\ | GASKET | ||
| 11 | \6\ | GASKET | ||
| 12 | \6\ | O-RING | ||
| 13 | \6\ | RING, WEAR | ||
| 14 | \6\ | O-RING | ||
| 15 | \6\ | GASKET | ||
| 16 | \6\ | PACKING ROD |
