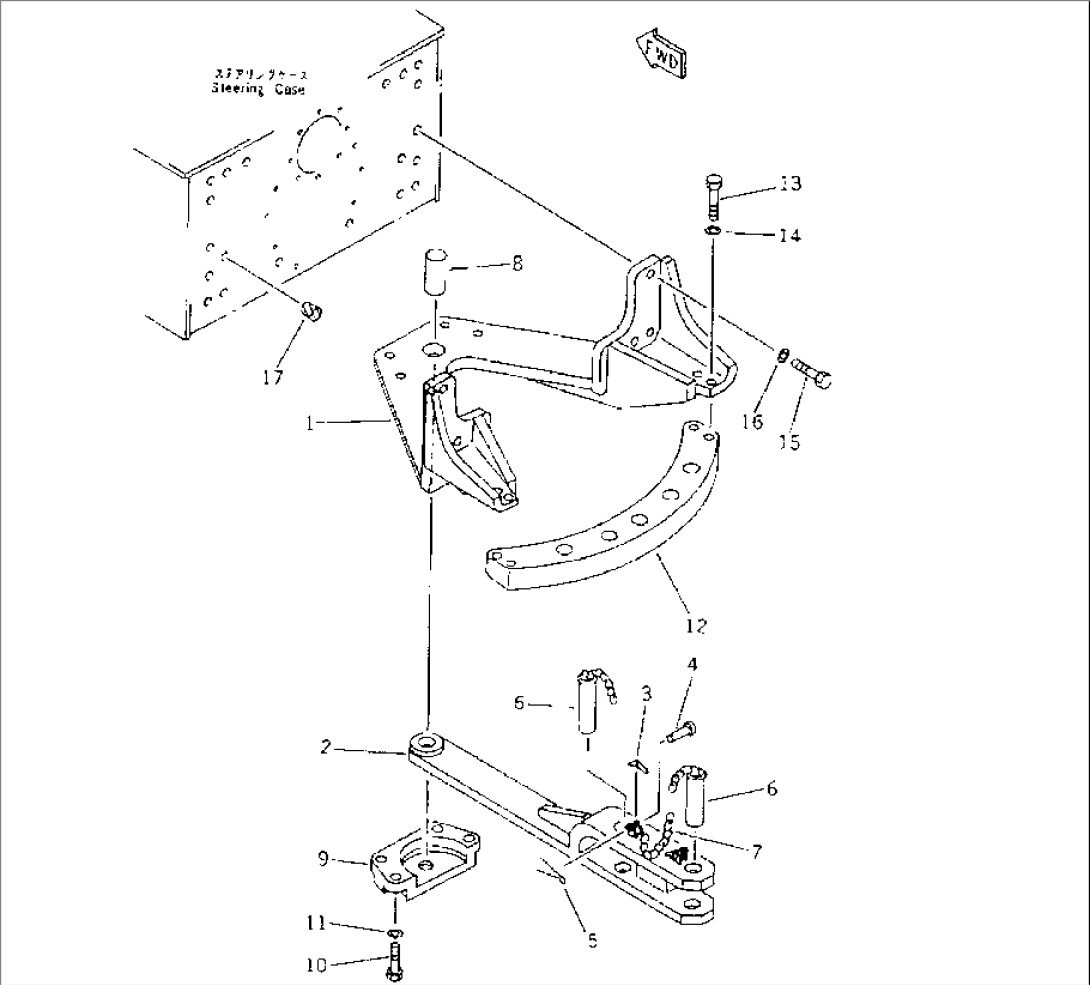

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 113-69-23110 | BRACKET | 3001- | |
| 113-69-00100 | DRAWBAR ASS'Y | 3001- | ||
| 2 | 113-69-23120 | DRAWBAR | 3001- | |
| 3 | 09249-00009 | LATCH | 3001- | |
| 4 | 04205-10825 | PIN | 3001- | |
| 5 | 04050-12012 | PIN,COTTER | 3001- | |
| 6 | 09247-35120 | PIN | 3001- | |
| 7 | 09245-24824 | CHAIN | 3001- | |
| 8 | 113-69-23150 | SHAFT | 3001- | |
| 9 | 113-69-23140 | BRACKET | 3001- | |
| 10 | 01010-52055 | BOLT | 3001- | |
| 11 | 01643-32060 | WASHER | 3001- | |
| 12 | 113-69-23130 | SEAT | 3001- | |
| 13 | 01010-52055 | BOLT | 3001- | |
| 14 | 01643-32060 | WASHER | 3001- | |
| 15 | 01010-52055 | BOLT | 3001- | |
| 16 | 01643-32060 | WASHER | 3001- | |
| 17 | 07049-02025 | PLUG | 3001- |
