| Item | Part No. | Part Name | Qty | Serial No. |

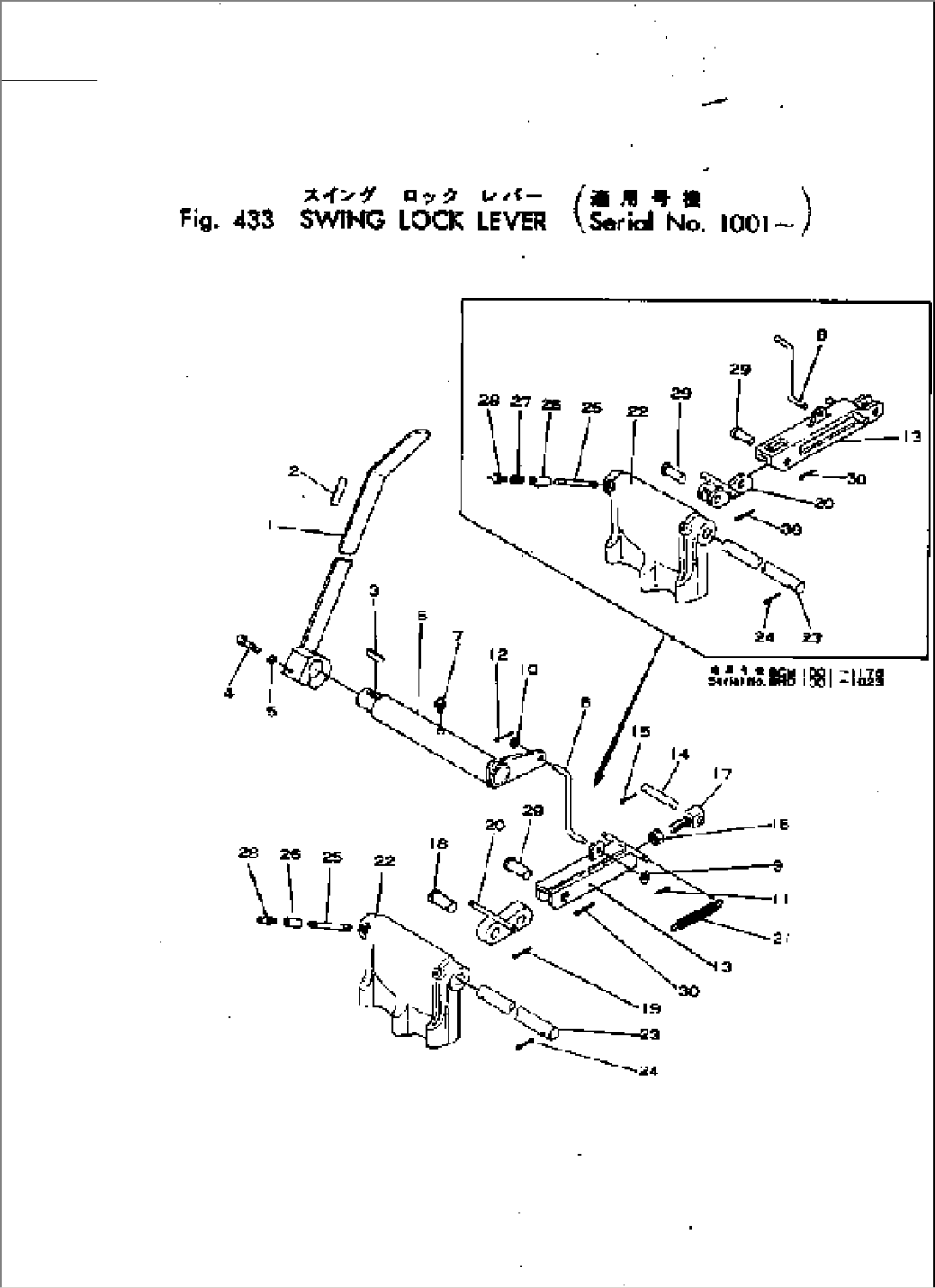

| 22-580481-00 | LEVER ASS'Y,SWING LOCK | 1001- | ||
| 1 | \6\ | LEVER,SWING LOCK | 1001- | |
| 2 | 22-400371-01 | PLATE¤ NAME | 1001- | |
| 3 | 21-520683-01 | KEY | 1001- | |
| 4 | 02010-20851 | BOLT | 1001- | |
| 5 | 01602-01338 | WASHER | 1001- | |
| 6 | 21-520700-21 | SLEEVE | 1001- | |
| 7 | 00570-44260 | FITTING | 1001- | |
| 22-580493-00 | SWING LOCK ASS'Y | 1179- | ||
| \0\22-580492-00 | SWING LOCK ASS'Y | 1001-1178 | ||
| 8 | 21-521056-01 | ROD | 1179- | |
| 21-520699-01 | ROD | 1001-1178 | ||
| 9 | 21-291188-01 | WASHER | 1001- | |
| 10 | 00039-51600 | WASHER | 1001- | |
| 11 | 04050-03050 | PIN | 1001- | |
| 12 | 04050-03025 | PIN | 1001-1178 | |
| 13 | 21-714540-21 | LINK,DOG | 1179- | |
| 21-706392-01 | LINK,DOG | 1001-1178 | ||
| 14 | 22-400068-01 | PIN | 2001- | |
| 22-400068-01 | PIN | 1001-1178 | ||
| 15 | 04050-05030 | PIN | 2001- | |
| 04050-05030 | PIN | 1001-1178 | ||
| 16 | 02206-01614 | NUT | 2001- | |
| 02206-01614 | NUT | 1179-1220 | ||
| 17 | 21-521055-01 | BOLT,EYE | 1001- | |
| 18 | 21-521057-01 | PIN | 1001- | |
| 19 | 04050-00060 | PIN | 1001- | |
| 20 | 21-615875-21 | LINK,DOG | 1179- | |
| 21-607155-01 | LINK,DOG | 1001-1178 | ||
| 21 | 21-500956-01 | SPRING,RETURN | 1001- | |
| 22 | 21-718113-01 | DOG,LOCKING | 1179- | |
| 21-706393-01 | DOG,LOCKING | 1001-1178 | ||
| 23 | 21-521087-01 | PIN | 1179- | |
| 21-520701-01 | PIN | 1001-1178 | ||
| 24 | 04050-00060 | PIN | 1001- | |
| 25 | 00205-03600 | NIPPLE | 1179- | |
| 00205-17050 | NIPPLE | 1001-1178 | ||
| 26 | 00201-10400 | COUPLING | 1179- | |
| 00201-10800 | COUPLING | 1001-1178 | ||
| 27 | 00200-15250 | BUSHING | 1001-1064 | |
| 28 | 00570-44010 | FITTING | 1001- | |
| 29 | 22-400067-01 | PIN | 1179- | |
| 22-400067-01 | PIN | 1001-1178 | ||
| 30 | 04050-05030 | PIN | 1179- | |
| 04050-05030 | PIN | 1001-1178 |
