| Item | Part No. | Part Name | Qty | Serial No. |
| 708-7R-00081 | MOTOR ASS'Y | 30001- | ||

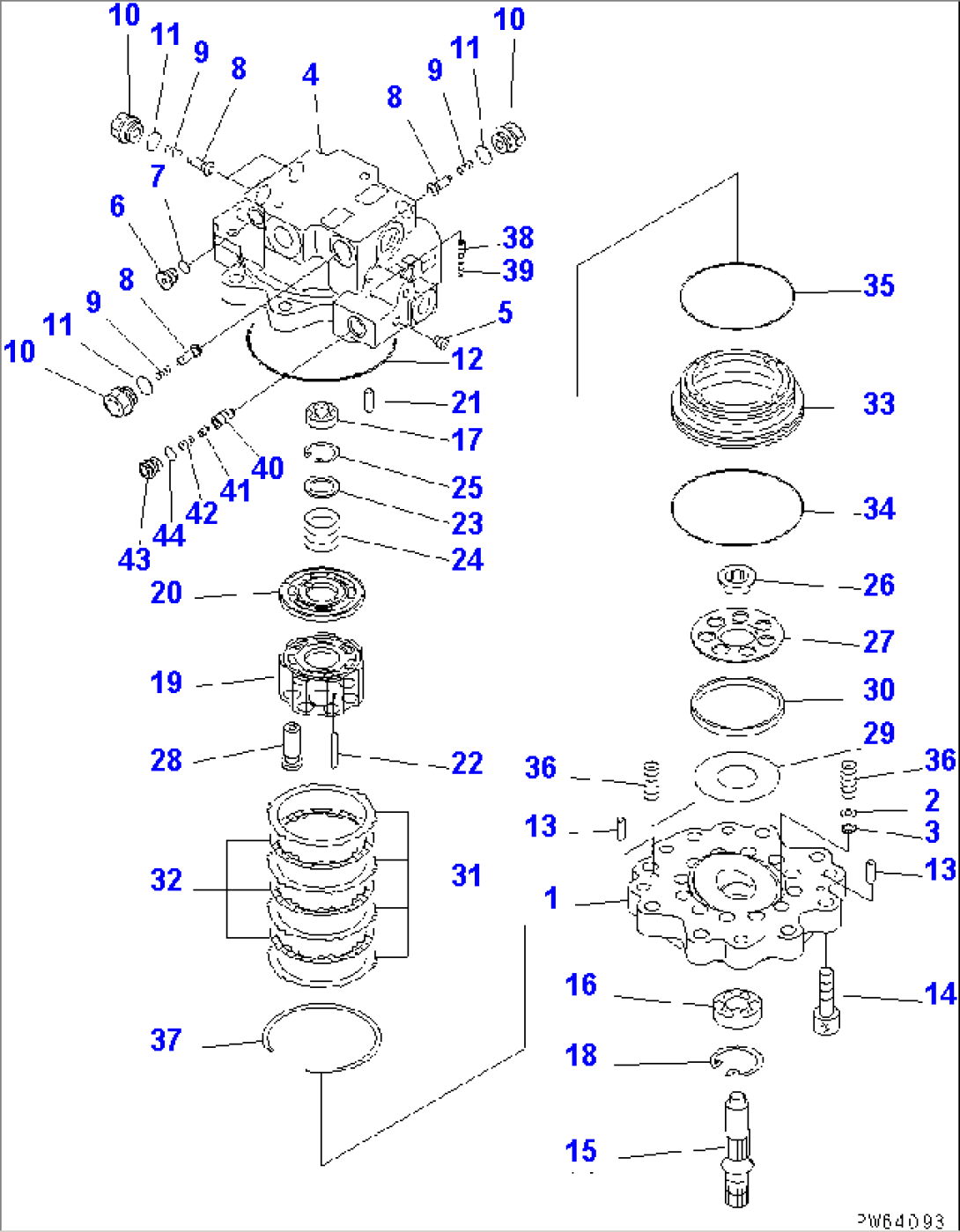

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 AND Y1640-02A0. | ||||
| \6\ | MOTOR SUB ASS'Y | 30001- | ||
| 1 | (\7\708-7R-11621) | PLATE,SWASH | 30001- | |
| 2 | (\7\708-7R-11710) | WASHER | 30001- | |
| 3 | (\7\708-7R-11720) | FILTER | 30001- | |
| (\7\708-7R-04050) | HOUSING SUB ASS'Y | 30001- | ||
| 4 | \6\ | HOUSING | 30001- | |
| 5 | \6\ | PLUG | 30001- | |
| 6 | 708-7R-11220 | PLUG | 30001- | |
| 7 | 07002-11223 | O-RING | 30001- | |
| 8 | 708-7R-11210 | VALVE | 30001- | |
| 9 | 722-10-91130 | SPRING | 30001- | |
| 10 | 709-32-12861 | PLUG | 30001- | |
| 11 | 07002-11823 | O-RING | 30001- | |
| 12 | (\7\431-40-11210) | O-RING | 30001- | |
| 13 | (\7\720-68-19610) | PIN | 30001- | |
| 14 | (\7\01252-61230) | BOLT | 30001- | |
| 15 | (\7\708-7R-12120) | SHAFT | 30001- | |
| 16 | (\7\708-7R-12140) | BEARING | 30001- | |
| 17 | (\7\708-7R-12150) | BEARING | 30001- | |
| 18 | 04065-04218 | RING,SNAP | 30001- | |
| 19 | (\7\708-7R-13111) | BLOCK,CYLINDER | 30001- | |
| 20 | (\7\708-7R-13230) | PLATE,VALVE | 30001- | |
| 21 | (\7\720-68-19610) | PIN | 30001- | |
| 22 | (\7\708-7R-13540) | PIN | 30001- | |
| 23 | (\7\708-7R-13530) | WASHER | 30001- | |
| 24 | (\7\708-7R-13560) | SPRING | 30001- | |
| 25 | (\7\04065-03012) | RING | 30001- | |
| 26 | (\7\708-7R-13510) | GUIDE,RETAINER | 30001- | |
| 27 | (\7\708-7R-13351) | RETAINER,SHOE | 30001- | |
| 28 | (\7\708-7R-13320) | PISTON SUB ASS'Y | 30001- | |
| 29 | (\7\708-7R-13410) | PLATE,THRUST | 30001- | |
| 30 | (\7\708-7R-13581) | SPACER | 30001- | |
| 31 | (\7\708-7R-15130) | PLATE | 30001- | |
| 32 | (\7\708-7R-15121) | DISC | 30001- | |
| 33 | (\7\708-7R-15180) | PISTON,BRAKE | 30001- | |
| 34 | (\7\07000-12115) | O-RING | 30001- | |
| 35 | (\7\07000-12095) | O-RING | 30001- | |
| 36 | (\7\708-7R-15150) | SPRING | 30001- | |
| 37 | (\7\708-7R-15160) | RING | 30001- | |
| 38 | (\7\708-7R-15712) | PISTON | 30001- | |
| 39 | (\7\708-7R-15722) | SPRING | 30001- | |
| 708-7R-03030 | VALVE SUB ASS'Y | 30001- | ||
| 40 | \6\ | VALVE | 30001- | |
| 41 | \6\ | FILTER | 30001- | |
| 42 | 708-7R-15670 | SPRING | 30001- | |
| 43 | 706-73-72680 | PLUG | 30001- | |
| 44 | 07002-11223 | O-RING | 30001- |
