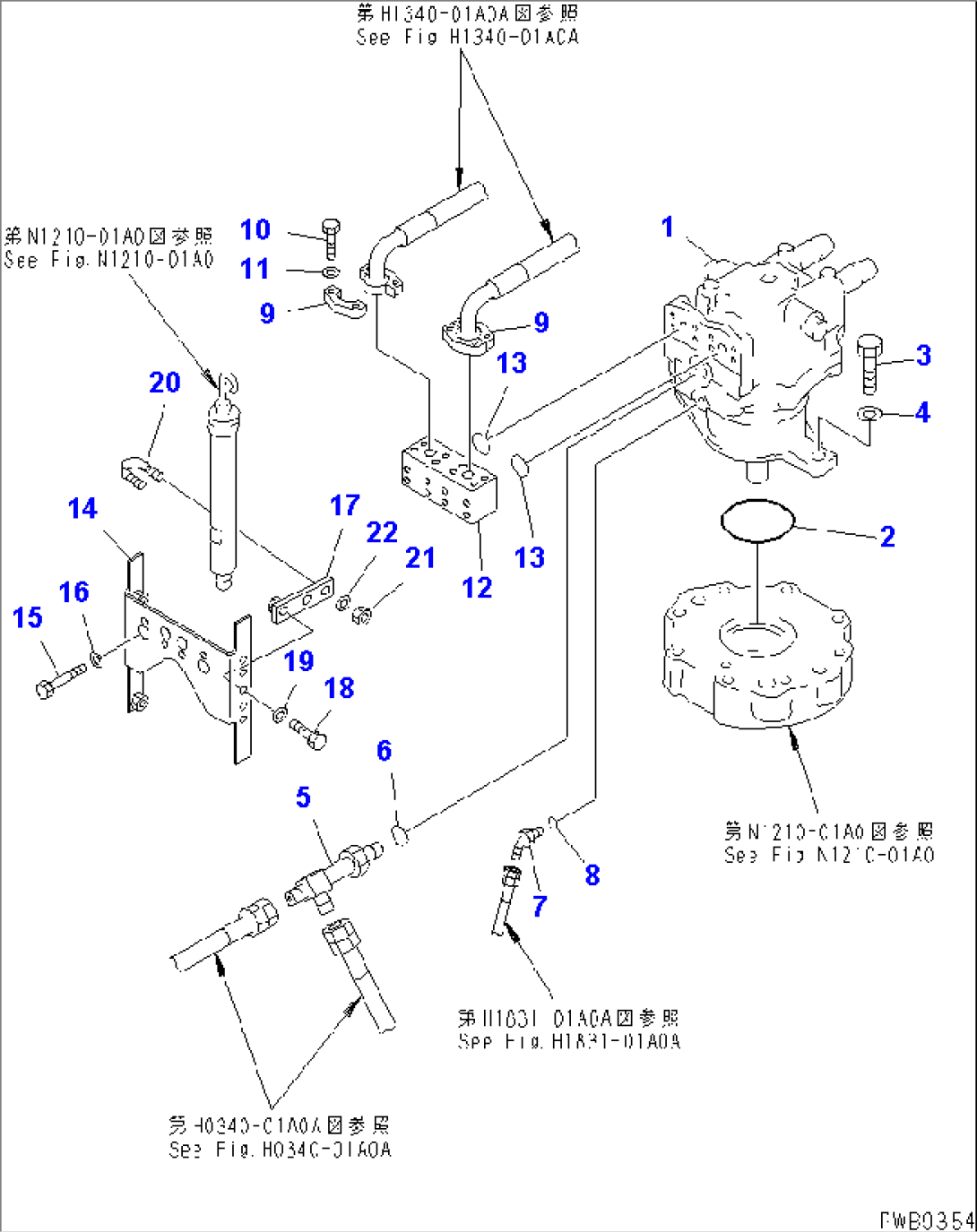

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (706-75-01101) | MOTOR ASS'Y | K30001-K32307 | |
| 2 | 07000-02110 | O-RING | K30001-K32307 | |
| 3 | 01010-82055 | BOLT | K32000-K32307 | |
| 4 | 01643-32060 | WASHER | K30001-K32307 | |
| 5 | 20Y-62-21620 | TEE | K30001-@ | |
| 6 | 07002-02434 | O-RING | K30001-@ | |
| 7 | 07236-10210 | ELBOW | K30001-@ | |
| 8 | 07002-01423 | O-RING | K30001-@ | |
| 9 | 07371-30640 | FLANGE | K30001-@ | |
| 10 | 07372-21035 | BOLT | K30001-@ | |
| 11 | 01643-51032 | WASHER | K30001-@ | |
| 12 | 20Y-62-28420 | BLOCK | K30001-@ | |
| 13 | 21T-09-11450 | O-RING | K30001-@ | |
| 14 | 20Y-62-28330 | BRACKET | K30001-@ | |
| 15 | 01010-81080 | BOLT | K32000-@ | |
| 16 | 01643-51032 | WASHER | K30001-@ | |
| 17 | 20Y-62-28740 | BRACKET | K32000-@ | |
| 18 | 01010-51230 | BOLT | K30001-@ | |
| 19 | 01643-31232 | WASHER | K30001-@ | |
| 20 | 07283-22738 | CLIP | K30001-@ | |
| 21 | 01599-01011 | NUT | K30001-@ | |
| 22 | 01643-31032 | WASHER | K30001-@ |
