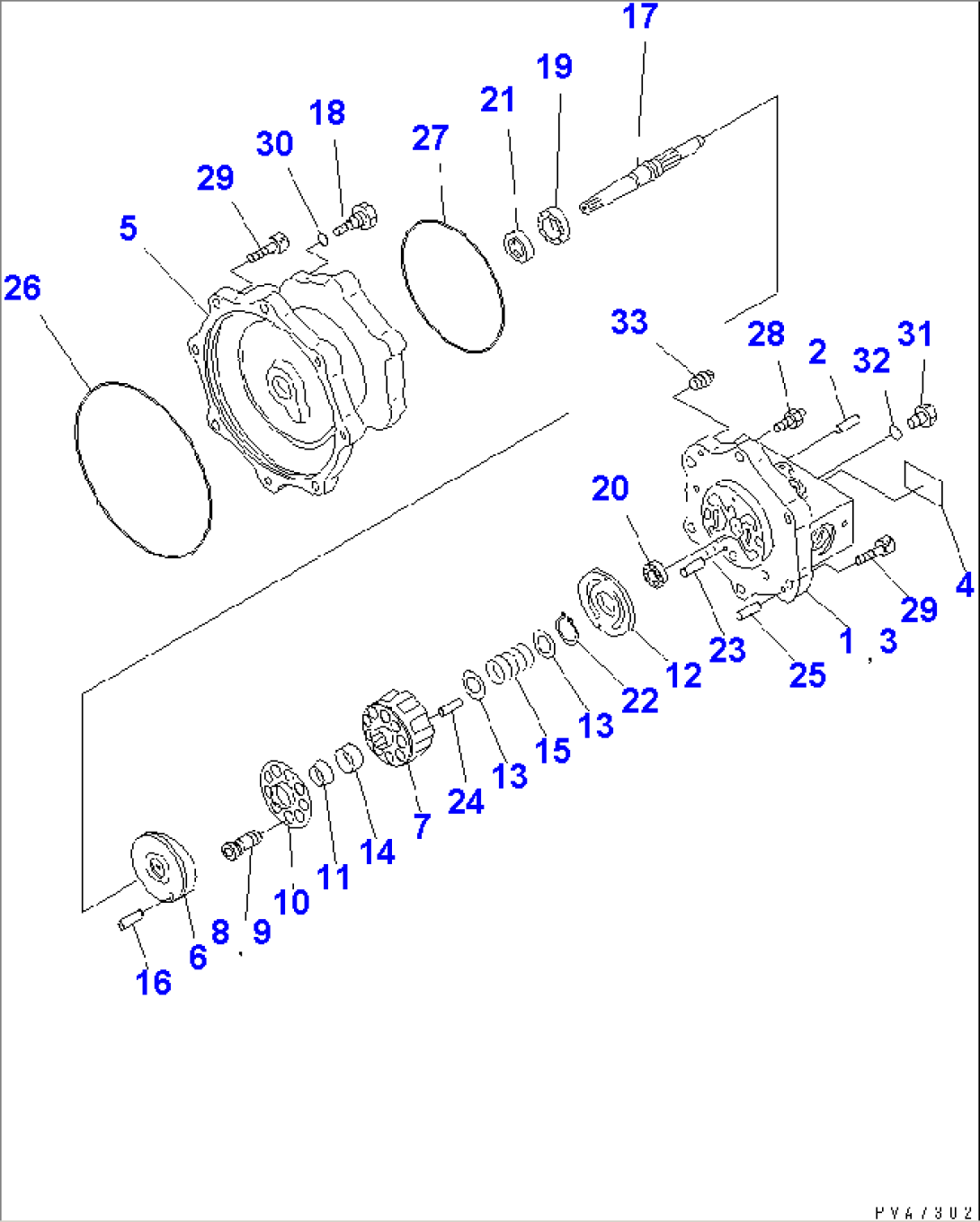

| Item | Part No. | Part Name | Qty | Serial No. |
| (202-966-4911) | MOTOR ASS'Y,SWING (TZ504S000002-A) | K30001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1650-11A0 TO Y1650-13A0. | ||||
| TZ504S200002-A | MOTOR ASS'Y | K30001- | ||
| TZ504S200000-A | MOTOR ASS'Y | K30001- | ||
| TZ501S2101-02 | REAR FLANGE KIT | K30001- | ||
| 1 | TZ501S2001-02 | FLANGE | K30001- | |
| 2 | TZ501S2033-00 | ORIFICE | K30001- | |
| 3 | TZMB700-060 | PLUG | K30001- | |
| 4 | TZ850A0006-00 | PLATE¤ NAME | K30001- | |
| 5 | TZ504S2002-00 | CASE | K30001- | |
| 6 | TZ550A200300-A | PLATE,SWASH | K30001- | |
| 7 | TZ550A2004-00 | BLOCK,CYLINDER | K30001- | |
| TZ550A2105-00 | PISTON SHOE ASS'Y | K30001- | ||
| \6\ | PISTON ASS'Y | K30001- | ||
| 8 | \6\ | PISTON | K30001- | |
| 9 | \6\ | SHOE | K30001- | |
| 10 | TZ550A2007-00 | PLATE | K30001- | |
| 11 | TZ300A2008-00 | BALL,THRUST | K30001- | |
| 12 | TZ550A2009-00 | PLATE,TIMING | K30001- | |
| 13 | TZ310B2010-00 | WASHER | K30001- | |
| 14 | TZ550A2011-00 | WASHER KIT | K30001- | |
| 15 | TZ510B2014-00 | SPRING | K30001- | |
| 16 | TZ300A2017-00 | PIN | K30001- | |
| 17 | TZ501S2018-01 | SHAFT | K30001- | |
| 18 | TZ503S2019-00 | GAUGE,OIL | K30001- | |
| 19 | 06000-06203 | BEARING,BALL | K30001- | |
| 20 | 06000-06001 | BEARING,BALL | K30001- | |
| 21 | TZ15Z-17-35-8 | SEAL,OIL (KIT) | K30001- | |
| 22 | TZIRTW-32 | RING,SNAP | K30001- | |
| 23 | TZJB1354-4-10 | PIN | K30001- | |
| 24 | TZJB15062-118F | PIN | K30001- | |
| 25 | TZ1354-8-25 | PIN | K30001- | |
| 26 | TZJW1516-G45-9 | O-RING (KIT) | K30001- | |
| 27 | TZJW1516-G35-9 | O-RING (KIT) | K30001- | |
| 28 | TZB-2101 | BLEEDER | K30001- | |
| 29 | 01252-31035 | BOLT | K30001- | |
| 30 | 07000-12014 | O-RING (KIT) | K30001- | |
| 31 | 07040-11409 | PLUG | K30001- | |
| 32 | 07000-12011 | O-RING (KIT) | K30001- | |
| 33 | TZSBP-1-8 | PLUG | K30001- |
