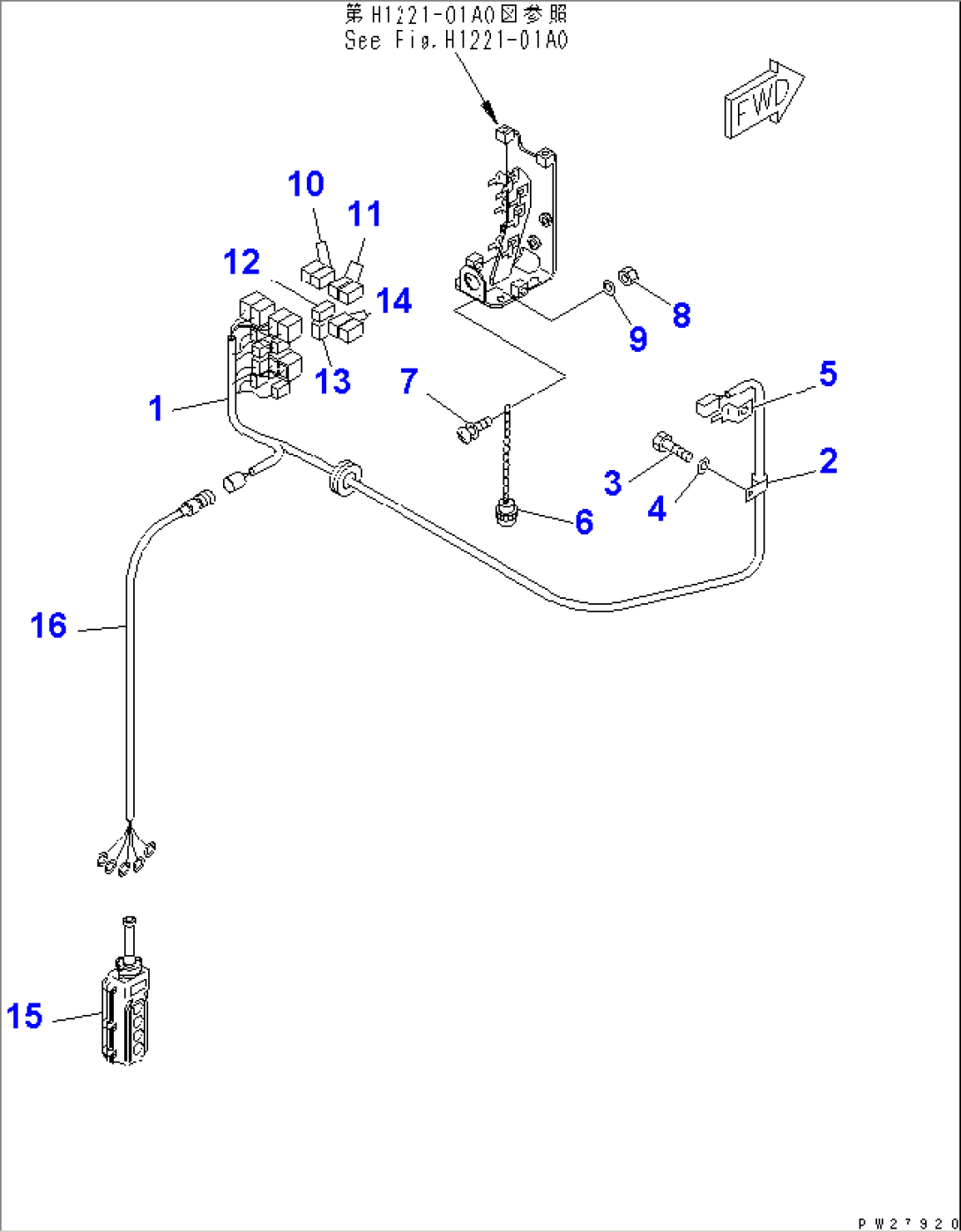

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8295-06-1770 | WIRING HARNESS | 1001- | |
| 1 | 287-06-16430 | CONNECTOR | 1001- | |
| 2 | 08036-01014 | CLIP | 1001- | |
| 3 | 01010-81220 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 08193-21012 | CLIP | 1001- | |
| 6 | 8295-06-1780 | CAP | 1001- | |
| 7 | 01023-10206 | SCREW | 1001- | |
| 8 | 01580-20202 | NUT | 1001- | |
| 9 | 01640-20205 | WASHER | 1001- | |
| 10 | 56B-06-11530 | CONNECTOR | 1001- | |
| 11 | 56B-06-11540 | CONNECTOR | 1001- | |
| 12 | 56B-06-11510 | CONNECTOR | 1001- | |
| 13 | 569-06-61960 | RELAY | 1001- | |
| 14 | 8295-06-1910 | DIODE | 1001- | |
| 8295-06-2100 | BOX ASS'Y,SWITCH | 1001- | ||
| 15 | 8295-06-2110 | BOX | 1001- | |
| 15 | 8295-06-2130 | SWITCH | 1001- | |
| 16 | 8295-06-2120 | WIRING HARNESS | 1001- |
