| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00930) | PUMP ASS'Y | 50027- | ||

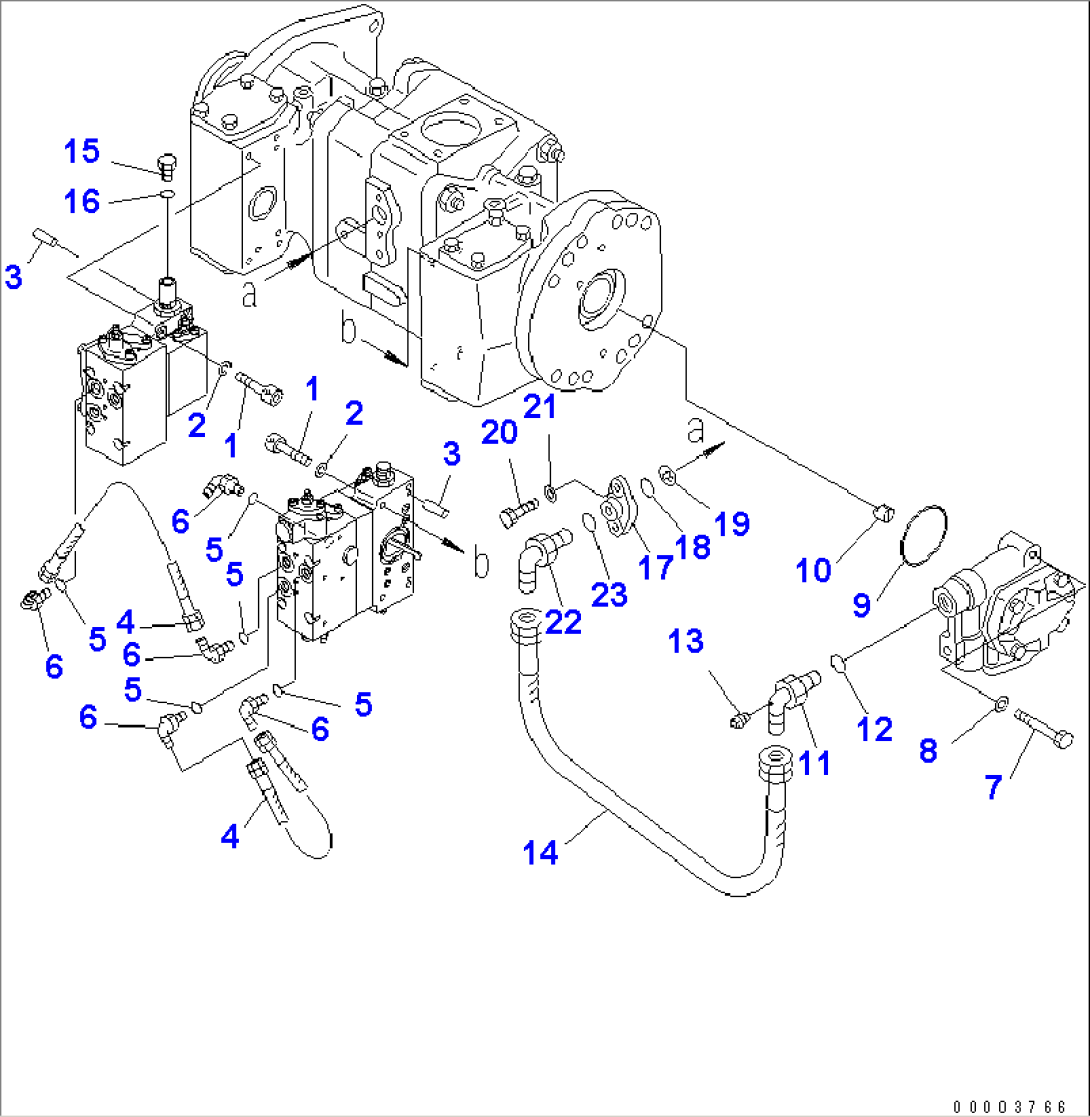

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-21A0A T0 Y1600-36A0A . | ||||
| 1 | 708-25-19130 | BOLT | 50027- | |
| 2 | 01602-20825 | WASHER,SPRING | 50027- | |
| 3 | 04020-00616 | PIN,DOWEL | 50027- | |
| 4 | 07102-20203 | HOSE | 50027- | |
| 5 | 07002-21423 | O-RING | 50027- | |
| 6 | 07235-10210 | ELBOW | 50027- | |
| 7 | 01010-81260 | BOLT | 50027- | |
| 8 | 01643-31232 | WASHER | 50027- | |
| 9 | 708-25-15730 | O-RING | 50027- | |
| 10 | 708-25-32730 | COUPLING | 50027- | |
| 11 | 07235-50425 | ELBOW | 50027- | |
| 12 | 07002-22434 | O-RING | 50027- | |
| 13 | 07042-20108 | PLUG | 50027- | |
| 14 | 07102-20405 | HOSE | 50027- | |
| 15 | 07040-11409 | PLUG | 50027- | |
| 16 | 07002-21423 | O-RING | 50027- | |
| 17 | 708-25-19120 | FLANGE | 50027- | |
| 18 | 07000-E2021 | O-RING | 50027- | |
| 19 | 720-68-15240 | FILTER | 50027- | |
| 20 | 01010-80820 | BOLT | 50027- | |
| 21 | 01643-50823 | WASHER | 50027- | |
| 22 | 07235-10422 | ELBOW | 50027- | |
| 23 | 07002-22034 | O-RING | 50027- |
