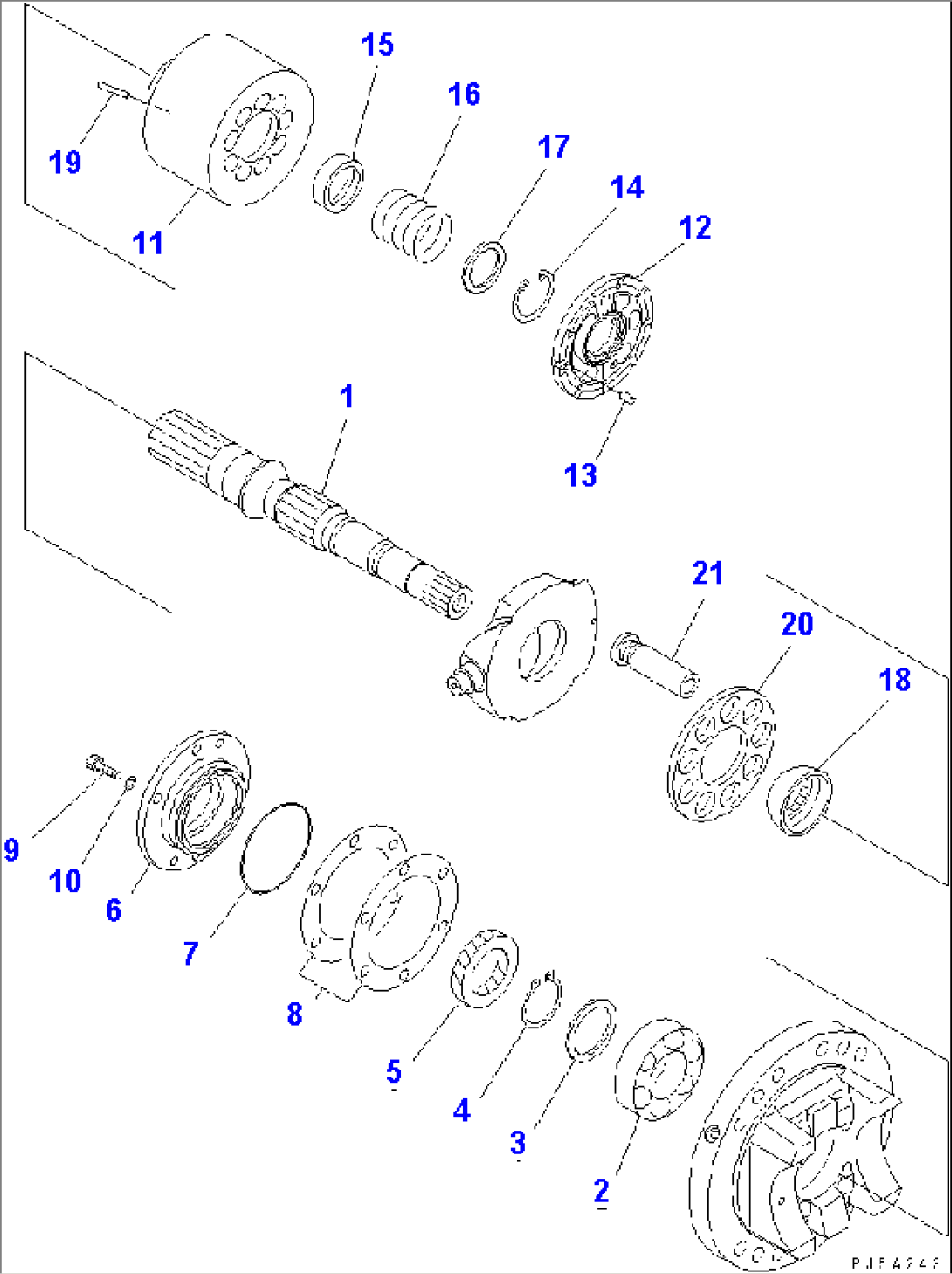

| Item | Part No. | Part Name | Qty | Serial No. |
| \6\ | PUMP ASS'Y | 54001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-61A0 T0 Y1600-70A0. | ||||
| \6\ | PUMP SUB ASS'Y | 54001- | ||
| 1 | (\7\708-2L-22411) | SHAFT,FRONT | 54001- | |
| 2 | (\7\708-2L-32150) | BEARING | 54001- | |
| 3 | (\7\708-2E-05040) | WASHER KIT | 54001- | |
| \6\ | WASHER¤ 3.1MM | 54001- | ||
| \6\ | WASHER¤ 3.0MM | 54001- | ||
| \6\ | WASHER¤ 2.9MM | 54001- | ||
| \6\ | WASHER¤ 2.8MM | 54001- | ||
| 4 | (\7\708-25-12790) | RING,SNAP | 54001- | |
| 5 | 708-25-52861 | SEAL,OIL | 54001- | |
| 6 | (\7\708-25-12812) | HOUSING | 54001- | |
| 7 | 07000-E2080 | O-RING | 54001- | |
| 8 | (\7\708-25-05130) | SHIM KIT | 54001- | |
| \6\ | SHIM¤ 0.2MM | 54001- | ||
| \6\ | SHIM¤ 0.1MM | 54001- | ||
| 9 | 01010-80820 | BOLT | 54001- | |
| 10 | 01643-30823 | WASHER | 54001- | |
| (\7\708-2L-04141) | BLOCK ASS'Y,FRONT | 54001- | ||
| 11 | \6\ | BLOCK,CYLINDER | 54001- | |
| 12 | \6\ | PLATE,VALVE | 54001- | |
| 13 | (\7\720-68-19610) | PIN | 54001- | |
| 14 | (\7\04065-04818) | RING,SNAP | 54001- | |
| 15 | (\7\708-2L-23131) | SEAT | 54001- | |
| 16 | (\7\708-2L-33160) | SPRING | 54001- | |
| 17 | (\7\708-7L-13140) | SEAT | 54001- | |
| 18 | (\7\708-2L-23351) | GUIDE,RETAINER | 54001- | |
| 19 | (\7\708-2L-23360) | PIN | 54001- | |
| 20 | (\7\708-2L-33340) | RETAINER,SHOE | 54001- | |
| 21 | (\7\708-2L-33310) | PISTON SUB ASS'Y | 54001- |
