| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00930) | PUMP ASS'Y | 52001- | ||

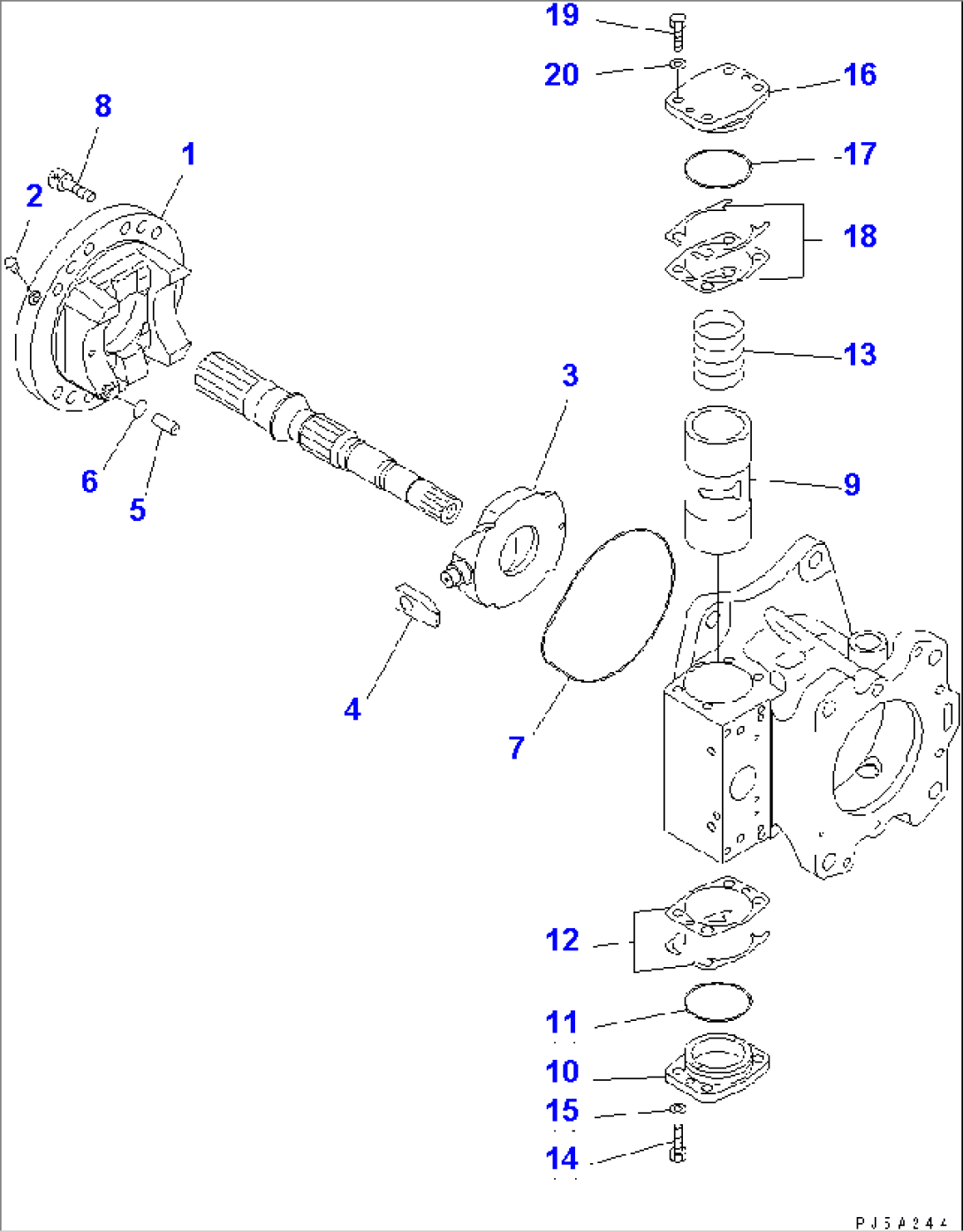

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 T0 Y1600-36A0. | ||||
| (708-2L-01930) | PUMP SUB ASS'Y | 52001- | ||
| (\7\708-2L-04380) | CRADLE ASS'Y,FRONT | 52001- | ||
| (\7\708-2L-04460) | CRADLE SUB ASS'Y,FRONT | 52001- | ||
| 1 | \6\ | CRADLE,FRONT | 52001- | |
| 2 | \6\ | PLUG | 52001- | |
| 3 | \6\ | CAM,ROCKER | 52001- | |
| 4 | (\7\708-2L-23730) | SLIDER | 52001- | |
| 5 | (\7\708-25-12330) | JOINT | 52001- | |
| 6 | (\7\07000-F2015) | O-RING | 52001- | |
| 7 | (\7\708-25-62361) | O-RING | 52001- | |
| 8 | (\7\708-25-12350) | BOLT | 52001- | |
| 9 | (\7\708-25-14112) | PISTON | 52001- | |
| 10 | (\7\708-25-14140) | CAP | 52001- | |
| 11 | 07000-E2065 | O-RING | 52001- | |
| 12 | (\7\708-25-05050) | SHIM KIT | 52001- | |
| 12 | \6\ | SHIM, 0.5MM | 52001- | |
| 12 | \6\ | SHIM, 0.2MM | 52001- | |
| 12 | \6\ | SHIM, 0.1MM | 52001- | |
| 12 | \6\ | SHIM, 0.1MM | 52001- | |
| 13 | 708-25-14130 | SPRING | 52001- | |
| 14 | 01016-51035 | BOLT | 52001- | |
| 15 | 01643-31032 | WASHER | 52001- | |
| 16 | (\7\708-25-64150) | CAP | 52001- | |
| 17 | 07000-E2065 | O-RING | 52001- | |
| 18 | (\7\708-25-05050) | SHIM KIT | 52001- | |
| 18 | \6\ | SHIM, 0.5MM | 52001- | |
| 18 | \6\ | SHIM, 0.2MM | 52001- | |
| 18 | \6\ | SHIM, 0.1MM | 52001- | |
| 18 | \6\ | SHIM, 0.1MM | 52001- | |
| 19 | 01016-51035 | BOLT | 52001- | |
| 20 | 01643-31032 | WASHER | 52001- |
