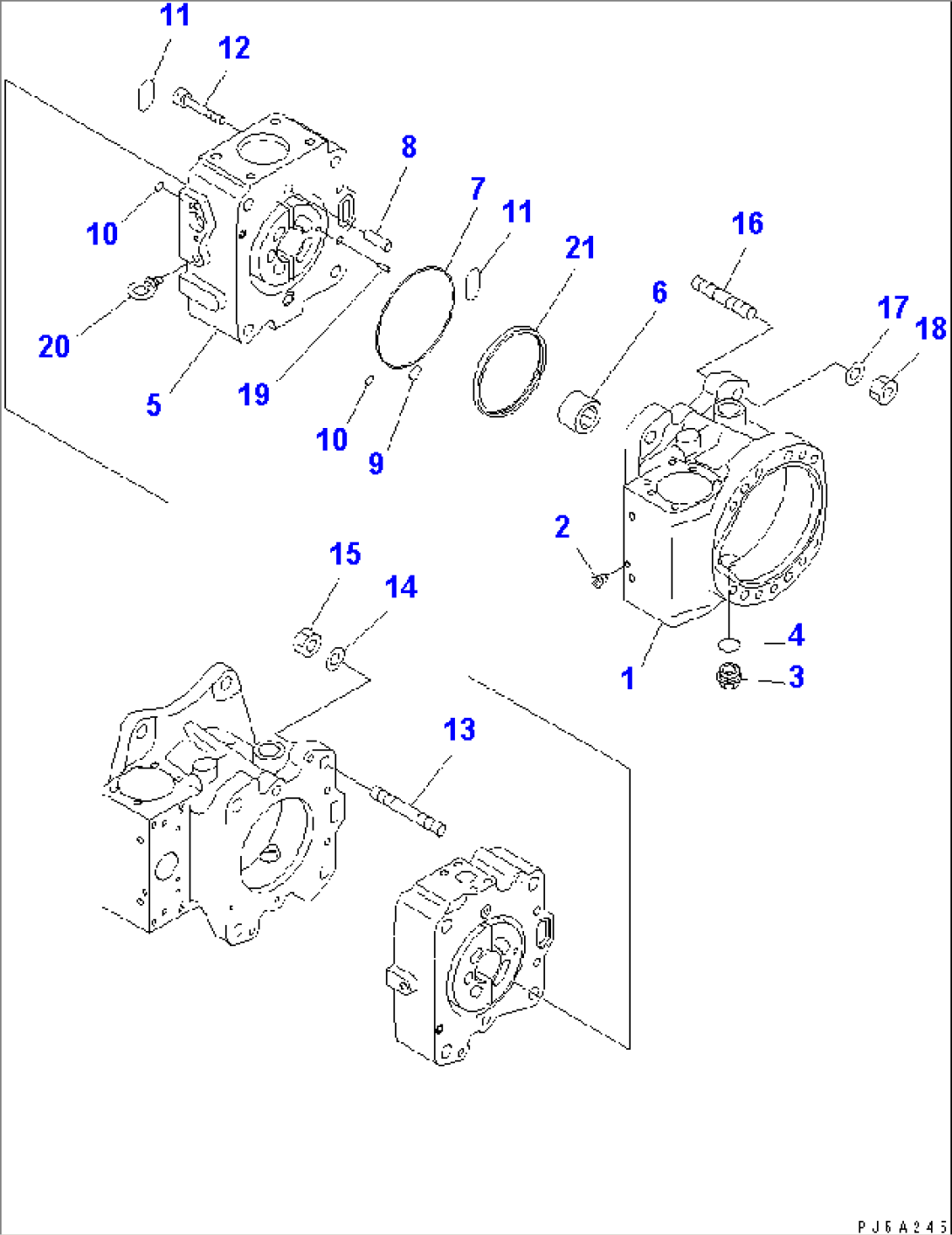

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00930) | PUMP ASS'Y | 52001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 T0 Y1600-36A0. | ||||
| (708-2L-01930) | PUMP SUB ASS'Y | 52001- | ||
| (\7\708-2L-05520) | CASE ASS'Y,REAR | 52001- | ||
| 1 | \6\ | CASE,REAR | 52001- | |
| 2 | \6\ | PLUG | 52001- | |
| 3 | 07044-12412 | PLUG | 52001- | |
| 4 | 07002-22434 | O-RING | 52001- | |
| 5 | (\7\708-2L-21960) | CAP,END | 52001- | |
| 6 | (\7\708-2L-32260) | BEARING | 52001- | |
| 7 | (\7\07000-E2135) | O-RING | 52001- | |
| 8 | (\7\6130-21-1910) | PIN,DOWEL | 52001- | |
| 9 | (\7\07000-F2015) | O-RING | 52001- | |
| 10 | (\7\07000-F1009) | O-RING | 52001- | |
| 11 | (\7\07000-F3032) | O-RING | 52001- | |
| 12 | (\7\708-25-12530) | BOLT | 52001- | |
| 13 | (\7\01141-81620) | STUD | 52001- | |
| 14 | (\7\01643-31645) | WASHER | 52001- | |
| 15 | (\7\01582-01613) | NUT | 52001- | |
| 16 | (\7\01140-81645) | STUD | 52001- | |
| 17 | (\7\01643-31645) | WASHER | 52001- | |
| 18 | (\7\01582-01613) | NUT | 52001- | |
| 19 | (\7\720-68-19610) | PIN | 52001- | |
| 20 | 04530-11018 | BOLT,EYE | 52001- | |
| 21 | (\7\708-25-13630) | RING | 52001- |
