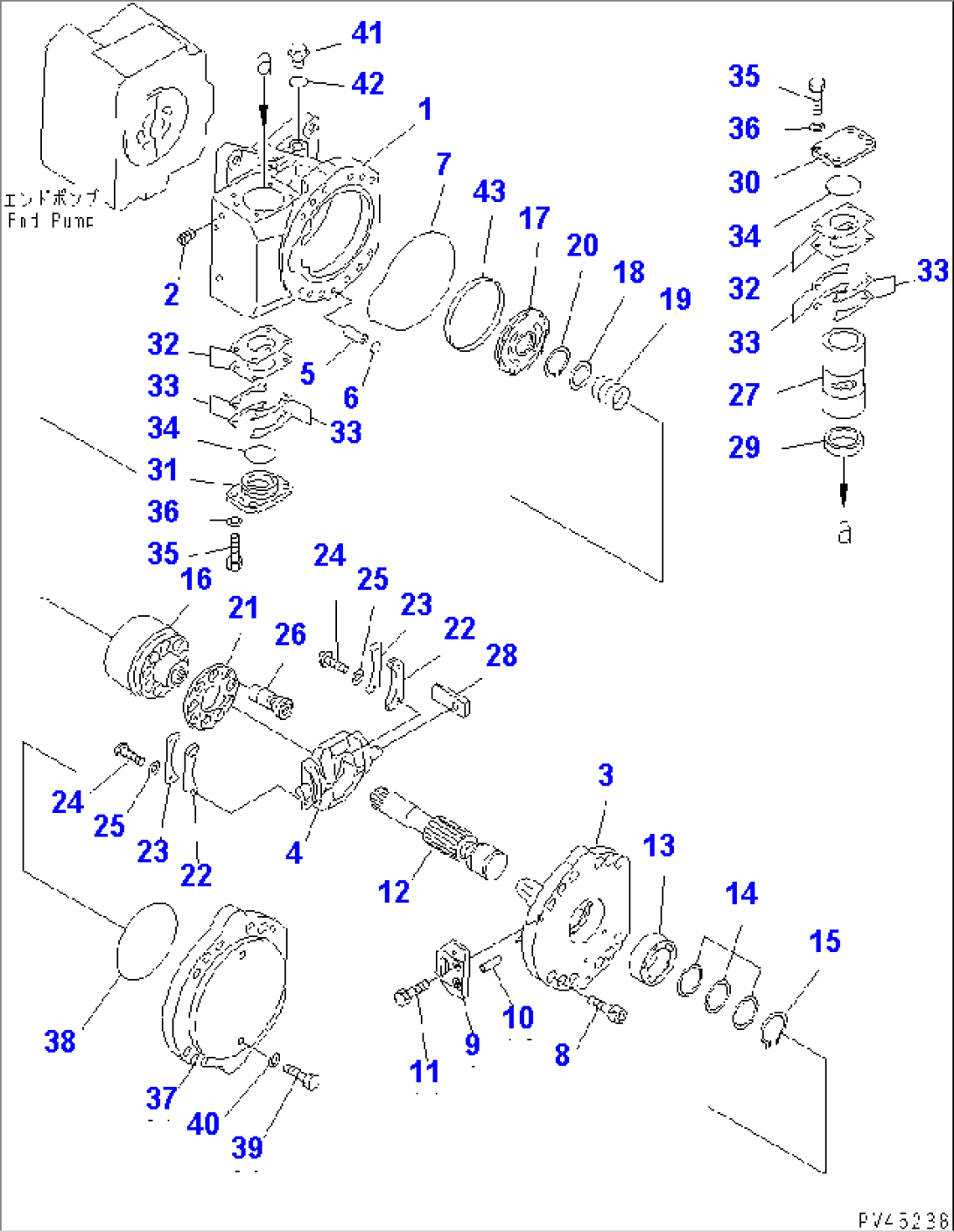

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-45-01021) | PUMP ASS'Y | 10001- | ||
| (708-45-01121) | PUMP SUB ASS'Y | 10001- | ||
| (\7\708-25-00360) | CASE ASS'Y,REAR | 10001- | ||
| 1 | \6\ | CASE,REAR | 10001- | |
| 2 | \6\ | PLUG | 10001- | |
| 3 | (\7\708-25-62320) | CRADLE,REAR | 10001- | |
| 4 | (\7\708-25-23411) | CAM,ROCKER | 10001- | |
| 5 | (\7\708-25-12330) | JOINT | 10001- | |
| 6 | (\7\07000-52015) | O-RING | 10001- | |
| 7 | (\7\708-25-62340) | O-RING | 10001- | |
| 8 | (\7\708-25-12350) | BOLT | 10001- | |
| 9 | (\7\708-25-12360) | PLATE | 10001- | |
| 10 | (\7\04020-00820) | PIN,DOWEL | 10001- | |
| 11 | (\7\01010-30816) | BOLT | 10001- | |
| 12 | (\7\708-25-52721) | SHAFT,REAR | 10001- | |
| 13 | (\7\708-25-12731) | BEARING | 10001- | |
| 14 | (\7\708-25-05010) | WASHER KIT | 10001- | |
| 14 | \6\ | WASHER, 2.0MM | 10001- | |
| 14 | \6\ | WASHER, 2.1MM | 10001- | |
| 14 | \6\ | WASHER, 2.2MM | 10001- | |
| 15 | (\7\708-25-12790) | RING,SNAP | 10001- | |
| (\7\708-25-00411) | CYLINDER BLOCK ASS'Y | 10001- | ||
| 16 | (\7\708-25-13151) | BLOCK,CYLINDER | 10001- | |
| 17 | (\7\708-25-13621) | PLATE,VALVE | 10001- | |
| 18 | (\7\708-25-13120) | WASHER | 10001- | |
| 19 | (\7\708-25-13130) | SPRING | 10001- | |
| 20 | (\7\708-25-13140) | RING,SNAP | 10001- | |
| 21 | (\7\708-25-13422) | RETAINER,SHOE | 10001- | |
| 22 | (\7\708-25-05061) | SPACER KIT | 10001- | |
| 22 | \6\ | SPACER, 11.540MM | 10001- | |
| 22 | \6\ | SPACER, 11.560MM | 10001- | |
| 22 | \6\ | SPACER, 11.575MM | 10001- | |
| 23 | (\7\708-25-13441) | RETAINER | 10001- | |
| 24 | (\7\708-25-13470) | SCREW | 10001- | |
| 25 | (\7\01643-30623) | WASHER | 10001- | |
| 26 | (\7\708-25-13312) | PISTON SUB ASS'Y,PUMP | 10001- | |
| 27 | (\7\708-25-64110) | PISTON | 10001- | |
| 28 | (\7\708-25-14121) | SLIDER | 10001- | |
| 29 | 708-45-14370 | COLLAR | 10001- | |
| 30 | (\7\708-25-14140) | CAP | 10001- | |
| 31 | (\7\708-25-14150) | CAP | 10001- | |
| 32 | (\7\708-25-05050) | SHIM KIT | 10001- | |
| 32 | \6\ | SHIM, 0.1MM | 10001- | |
| 32 | \6\ | SHIM, 0.2MM | 10001- | |
| 32 | \6\ | SHIM, 0.5MM | 10001- | |
| 33 | \6\ | SHIM, 0.1MM | 10001- | |
| 34 | 07000-42065 | O-RING | 10001- | |
| 35 | 01016-31035 | BOLT | 10001- | |
| 36 | 01643-31032 | WASHER | 10001- | |
| 37 | 708-45-19990 | COVER | 10001- | |
| 38 | 07000-42120 | O-RING | 10001- | |
| 39 | 01010-31230 | BOLT | 10001- | |
| 40 | 01643-31232 | WASHER | 10001- | |
| 41 | 07044-12412 | PLUG | 10001- | |
| 42 | 07002-42434 | O-RING | 10001- | |
| 43 | (\7\708-25-13630) | RING | 10001- |
