| Item | Part No. | Part Name | Qty | Serial No. |

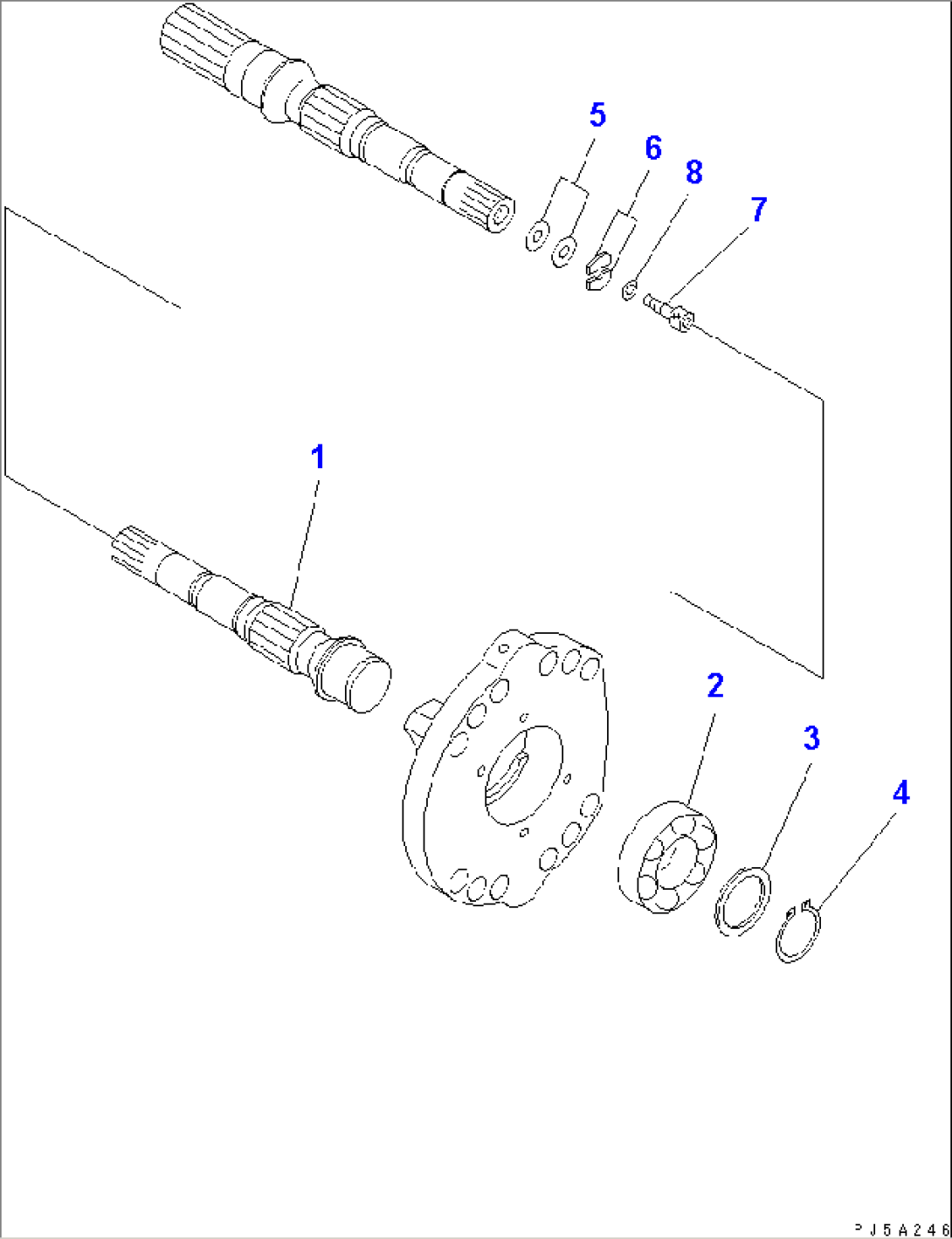

| (708-2L-00930) | PUMP ASS'Y | 50027- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-21A0A T0 Y1600-36A0A . | ||||
| (708-2L-01930) | PUMP SUB ASS'Y | 50027- | ||
| 1 | (\7\708-2L-22460) | SHAFT,REAR | 50027- | |
| 2 | (\7\708-2L-32150) | BEARING | 50027- | |
| 3 | (\7\708-2E-05040) | WASHER KIT | 50027- | |
| \6\ | WASHER¤ 3.1MM | 50027- | ||
| \6\ | WASHER¤ 3.0MM | 50027- | ||
| \6\ | WASHER¤ 2.9MM | 50027- | ||
| \6\ | WASHER¤ 2.8MM | 50027- | ||
| 4 | (\7\708-25-12790) | RING,SNAP | 50027- | |
| 5 | (\7\708-25-05021) | SHIM KIT | 50027- | |
| \6\ | SHIM¤ 0.5MM | 50027- | ||
| \6\ | SHIM¤ 0.2MM | 50027- | ||
| \6\ | SHIM¤ 0.15MM | 50027- | ||
| \6\ | SHIM¤ 0.1MM | 50027- | ||
| 6 | (\7\708-25-12950) | PLATE | 50027- | |
| 7 | (\7\706-74-40320) | BOLT | 50027- | |
| 8 | (\7\01643-31032) | WASHER | 50027- |
