| Item | Part No. | Part Name | Qty | Serial No. |

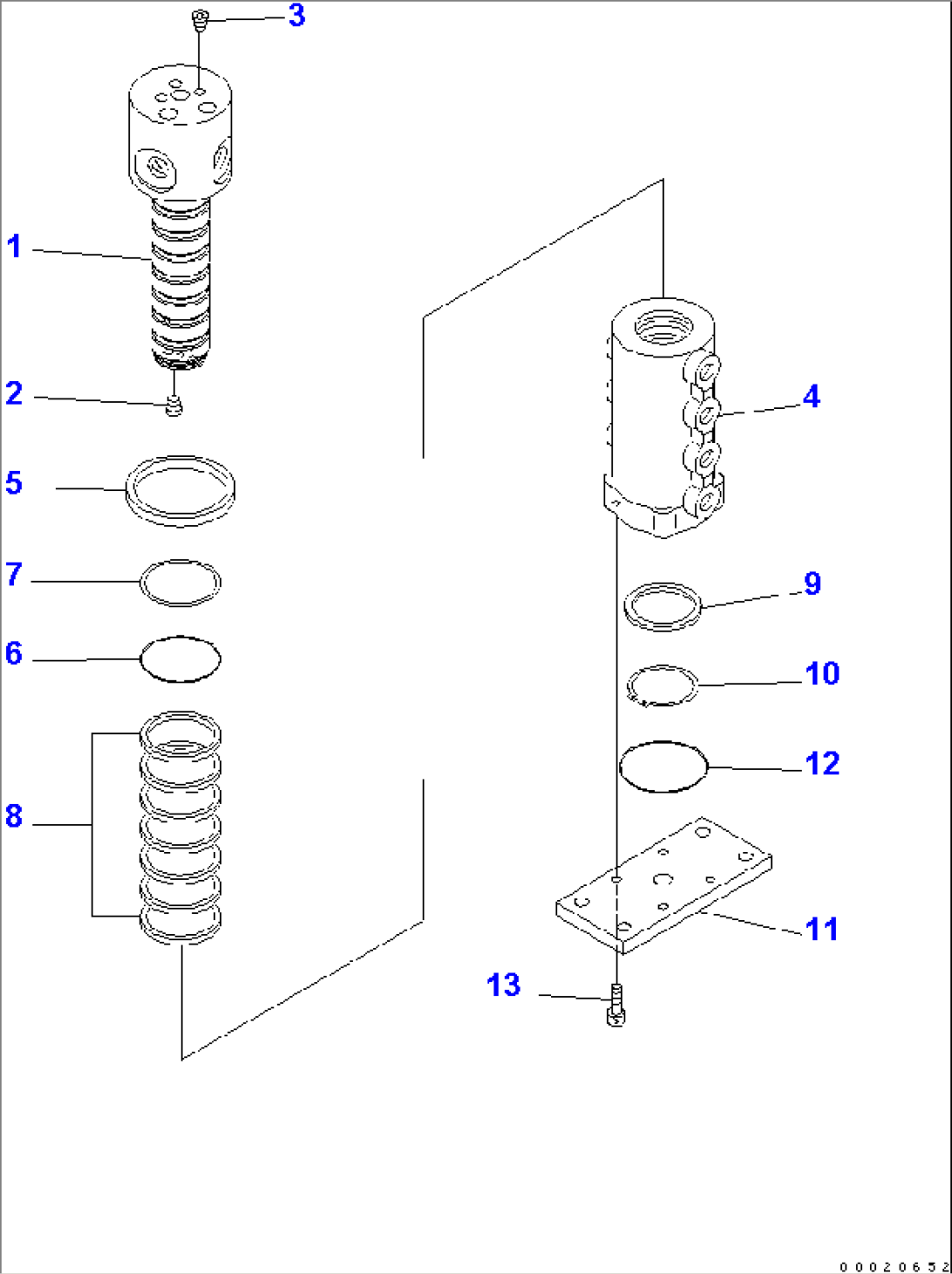

| 460-024 | SWIVEL JOINT ASS'Y | 3001- | ||
| 1 | 459-985 | SHAFT | 3001- | |
| 2 | 450-673 | PLUG | 3001- | |
| 3 | 325-316 | PLUG | 3001- | |
| 4 | 459-973 | ROTOR | 3001- | |
| 5 | 452-198 | SEAL,DUST | 3001- | |
| 6 | 453-593 | O-RING | 3001- | |
| 7 | 450-965 | RING,BACK-UP | 3001- | |
| 8 | 459-927 | O-RING | 3001- | |
| 9 | 450-964 | RING | 3001- | |
| 10 | 457-502 | RING,SNAP | 3001- | |
| 11 | 459-962 | PLATE | 3001- | |
| 12 | 453-592 | O-RING | 3001- | |
| 13 | 456-595 | BOLT | 3001- |
