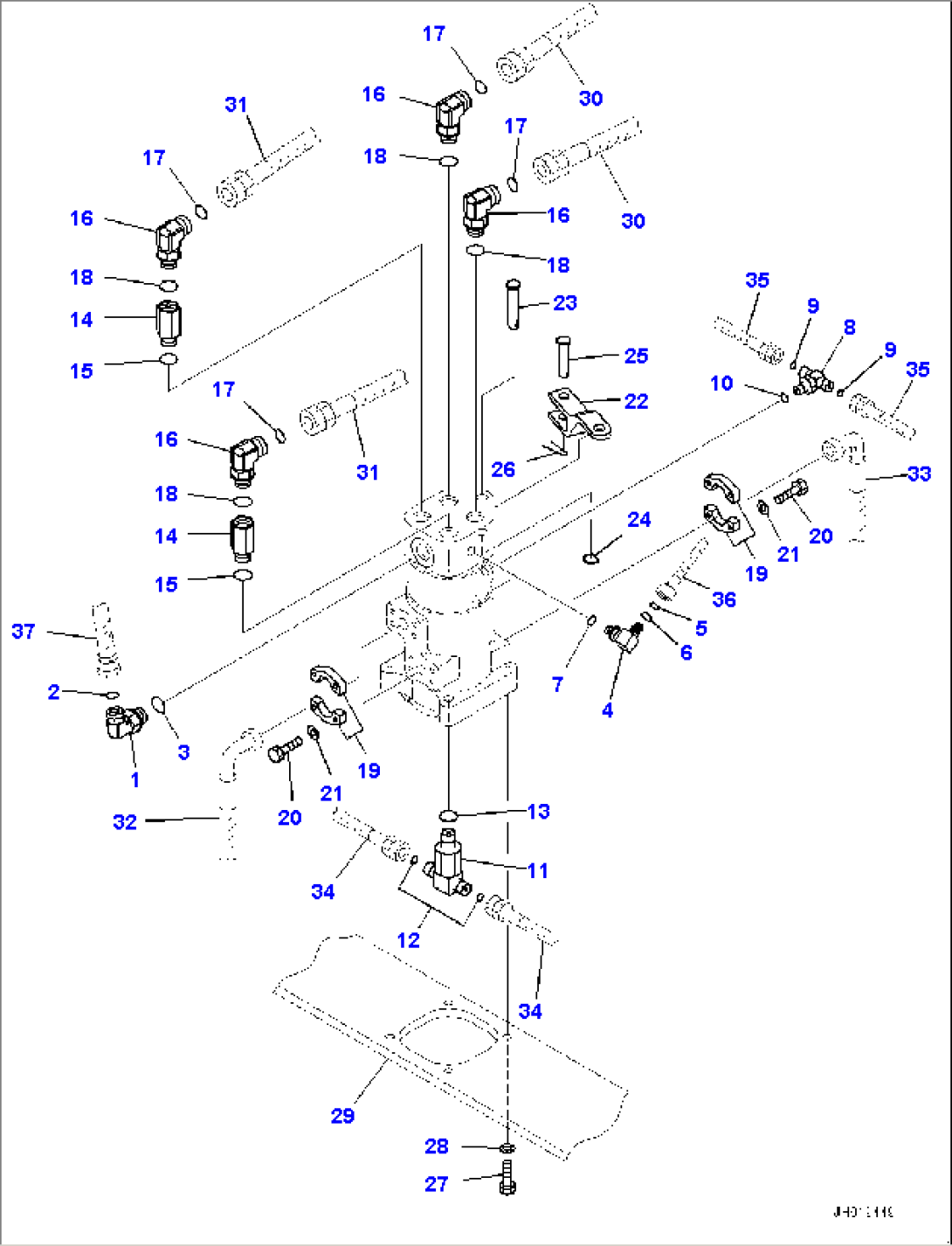

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02782-10522 | Elbow | 35001- | |
| 2 | 02896-11015 | O-ring | 35001- | |
| 3 | 07002-12434 | O-ring | 35001- | |
| 4 | 20Y-62-22271 | Elbow | 35001- | |
| 5 | 201-60-11390 | O-ring | 35001- | |
| 6 | 20Y-62-19560 | O-ring | 35001- | |
| 7 | 07002-11423 | O-ring | 35001- | |
| 8 | 11Y-62-12250 | Tee | 35001- | |
| 9 | 02896-11008 | O-ring | 35001- | |
| 10 | 07002-11423 | O-ring | 35001- | |
| 11 | 20Y-62-41930 | Tee | 35001- | |
| 12 | 02896-11012 | O-ring | 35001- | |
| 13 | 07002-12434 | O-ring | 35001- | |
| 14 | 201-62-71820 | Joint | 35001- | |
| 15 | 07002-62434 | O-ring | 35001- | |
| 16 | 02782-10628 | Elbow | 35001- | |
| 17 | 02896-61018 | O-ring | 35001- | |
| 18 | 07002-62434 | O-ring | 35001- | |
| 19 | 07371-30640 | Flange, Split | 35001- | |
| 20 | 07372-21035 | Bolt | 35001- | |
| 21 | 01643-51032 | Washer | 35001- | |
| 22 | 21K-62-51120 | Bracket | 35001- | |
| 23 | 22U-62-21870 | Pin | 35001- | |
| 24 | 22U-62-24420 | Pin | 35001- | |
| 25 | 201-60-11230 | Pin | 35001- | |
| 26 | 04050-14028 | Pin, Cotter | 35001- | |
| 27 | 01010-81240 | Bolt | 35001- | |
| 28 | 01643-31232 | Washer | 35001- | |
| 29 | (21K-30-71B50) | Plate | - | |
| 30 | (02756-006A7) | Hose, Face Seal Type | - | |
| 31 | (02756-00608) | Hose, Face Seal Type | - | |
| 32 | (20Y-62-12540) | Hose | - | |
| 33 | (07098-00618) | Hose, Flange Type | - | |
| 34 | (02774-00418) | Hose | - | |
| 35 | (02774-00219) | Hose | - | |
| 36 | (21K-62-41941) | Hose | - | |
| 37 | (21K-62-41611) | Hose Assembly | - |
