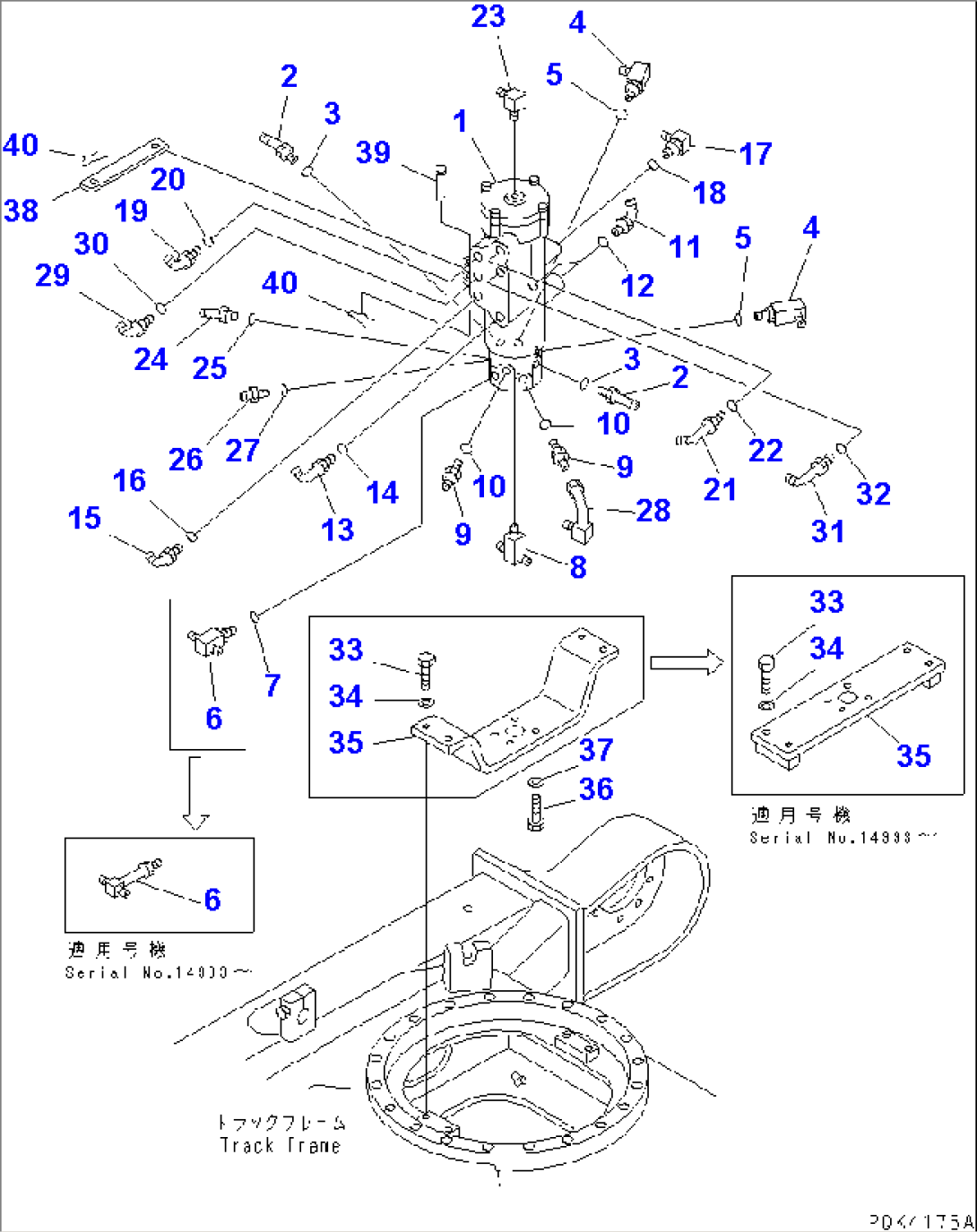

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (703-08-23121) | SWIVEL JOINT ASS'Y,(SEE FIG.Y1627-01A2) | 8001- | |
| 2 | 20S-62-32180 | ELBOW | 8001- | |
| 3 | 07002-12034 | O-RING | 8001- | |
| 4 | 20T-62-67110 | ELBOW | 8001- | |
| 5 | 07002-12034 | O-RING | 8001- | |
| 6 | 201-62-64340 | TEE | 14993- | |
| 6 | 20T-62-71610 | TEE | 8001-14992 | |
| 7 | 07002-01423 | O-RING | 8001- | |
| 8 | 20T-62-67180 | TEE | 8001- | |
| 9 | 20T-62-56710 | UNION | 8001- | |
| 10 | 07002-11823 | O-RING | 8001- | |
| 11 | 07235-10422 | ELBOW | 8001- | |
| 12 | 07002-12034 | O-RING | 8001- | |
| 13 | 20U-62-11450 | ELBOW | 8001- | |
| 14 | 07002-12034 | O-RING | 8001- | |
| 15 | 07235-10422 | ELBOW | 8001- | |
| 16 | 07002-12034 | O-RING | 8001- | |
| 17 | 20Y-970-1731 | ELBOW | 8001- | |
| 18 | 07002-01423 | O-RING | 8001- | |
| 19 | 07235-10315 | ELBOW | 8001- | |
| 20 | 07002-12034 | O-RING | 8001- | |
| 21 | 20R-62-11511 | ELBOW | 8001- | |
| 22 | 07002-12034 | O-RING | 8001- | |
| 23 | 205-43-74190 | ELBOW | 8001- | |
| 24 | 20S-62-21670 | ELBOW | 8001- | |
| 25 | 07002-11823 | O-RING | 8001- | |
| 26 | 20T-62-56710 | UNION | 8001- | |
| 27 | 07002-11823 | O-RING | 8001- | |
| 28 | 20T-910-4350 | TUBE | 8001- | |
| 29 | 07235-10315 | ELBOW | 8001- | |
| 30 | 07002-12034 | O-RING | 8001- | |
| 31 | 20R-62-11511 | ELBOW | 8001- | |
| 32 | 07002-12034 | O-RING | 8001- | |
| 33 | 01010-81260 | BOLT | 14993- | |
| 33 | 01010-51235 | BOLT | 8001-14992 | |
| 34 | 01643-31232 | WASHER | 8001- | |
| 35 | 20U-910-2450 | BRACKET | 14993- | |
| 35 | 20T-30-71411 | BRACKET | 8001-14992 | |
| 36 | 01010-51235 | BOLT | 8001- | |
| 37 | 01643-31232 | WASHER | 8001- | |
| 38 | 203-60-52160 | LINK | 8001- | |
| 39 | 201-60-11230 | PIN | 8001- | |
| 40 | 04052-01664 | PIN,SNAP | 8001- |
