| Item | Part No. | Part Name | Qty | Serial No. |

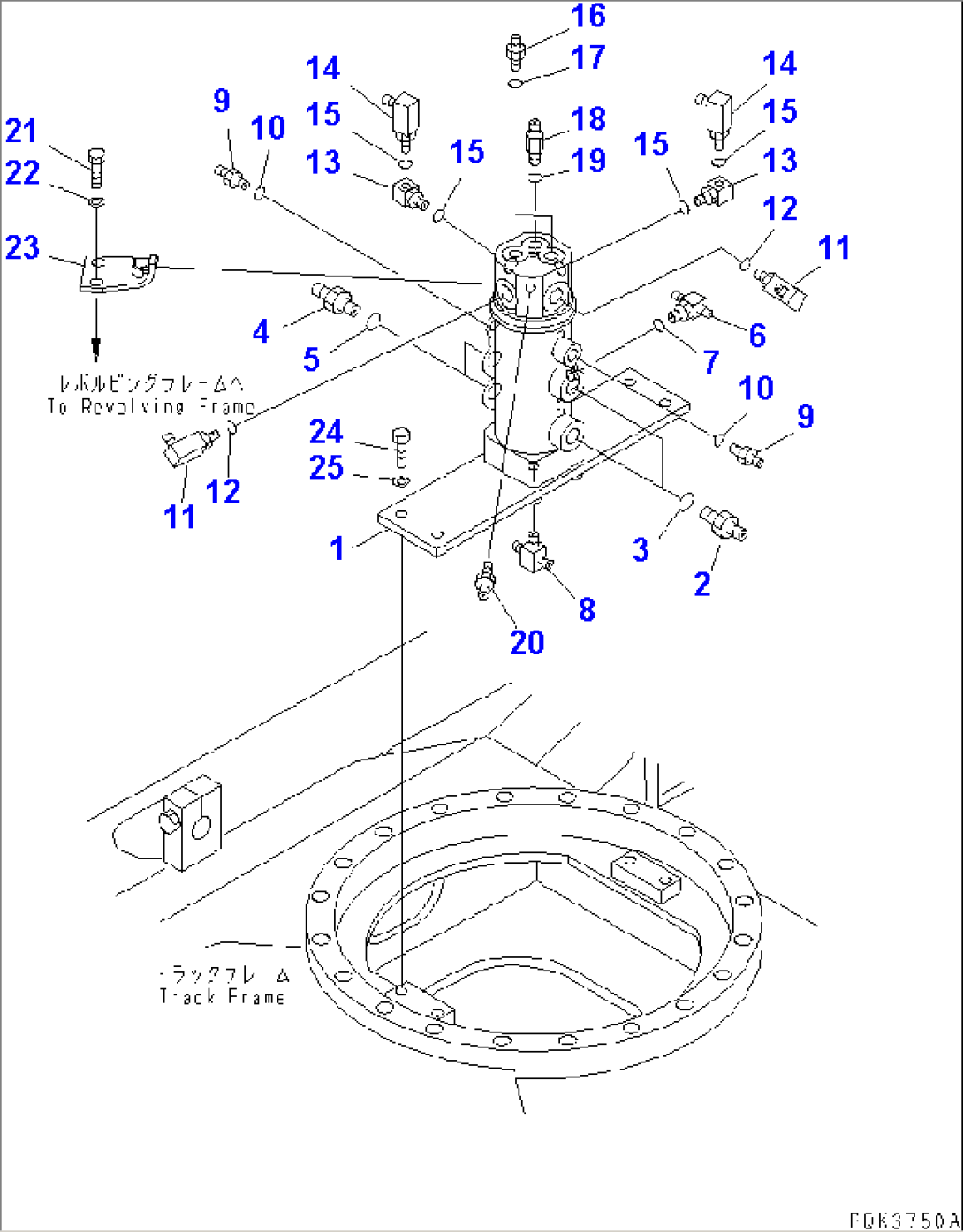

| 1 | (703-06-22111) | SWIVEL JOINT ASS'Y,(SEE FIG.Y1627-01A0A) | 12800-12811 | |
| 2 | 10E-60-16141 | NIPPLE | 12800-@ | |
| 3 | 07002-12034 | O-RING | 12800-@ | |
| 4 | 10E-60-16141 | NIPPLE | 12800-@ | |
| 5 | 07002-12034 | O-RING | 12800-@ | |
| 6 | 208-26-11611 | TEE | 12800-@ | |
| 7 | 07002-11423 | O-RING | 12800-12811 | |
| 8 | 20U-62-12350 | TEE | 12800-@ | |
| 9 | 205-62-55270 | NIPPLE | 12800-@ | |
| 10 | 07002-11423 | O-RING | 12800-@ | |
| 11 | 20R-62-21550 | ELBOW | 12800-12811 | |
| 12 | 07002-11823 | O-RING | 12800-@ | |
| 13 | 203-62-61511 | ELBOW | 12800-@ | |
| 14 | 20R-62-21550 | ELBOW | 12800-@ | |
| 15 | 07002-11823 | O-RING | 12800-@ | |
| 16 | 205-62-55270 | NIPPLE | 12800-12811 | |
| 17 | 07002-11423 | O-RING | 12800-@ | |
| 18 | 207-62-33950 | NIPPLE | 12800-@ | |
| 19 | 07002-11423 | O-RING | 12800-@ | |
| 20 | 203-62-51710 | NIPPLE | 12800-12811 | |
| 21 | 01010-81225 | BOLT | 12800-12811 | |
| 22 | 01643-31232 | WASHER | 12800-12811 | |
| 23 | 20T-60-81211 | PLATE | 12801-12811 | |
| 20T-60-81210 | PLATE | 12800-12800 | ||
| 24 | 01010-81230 | BOLT | 12800-12811 | |
| 25 | 01643-31232 | WASHER | 12800-12811 |
