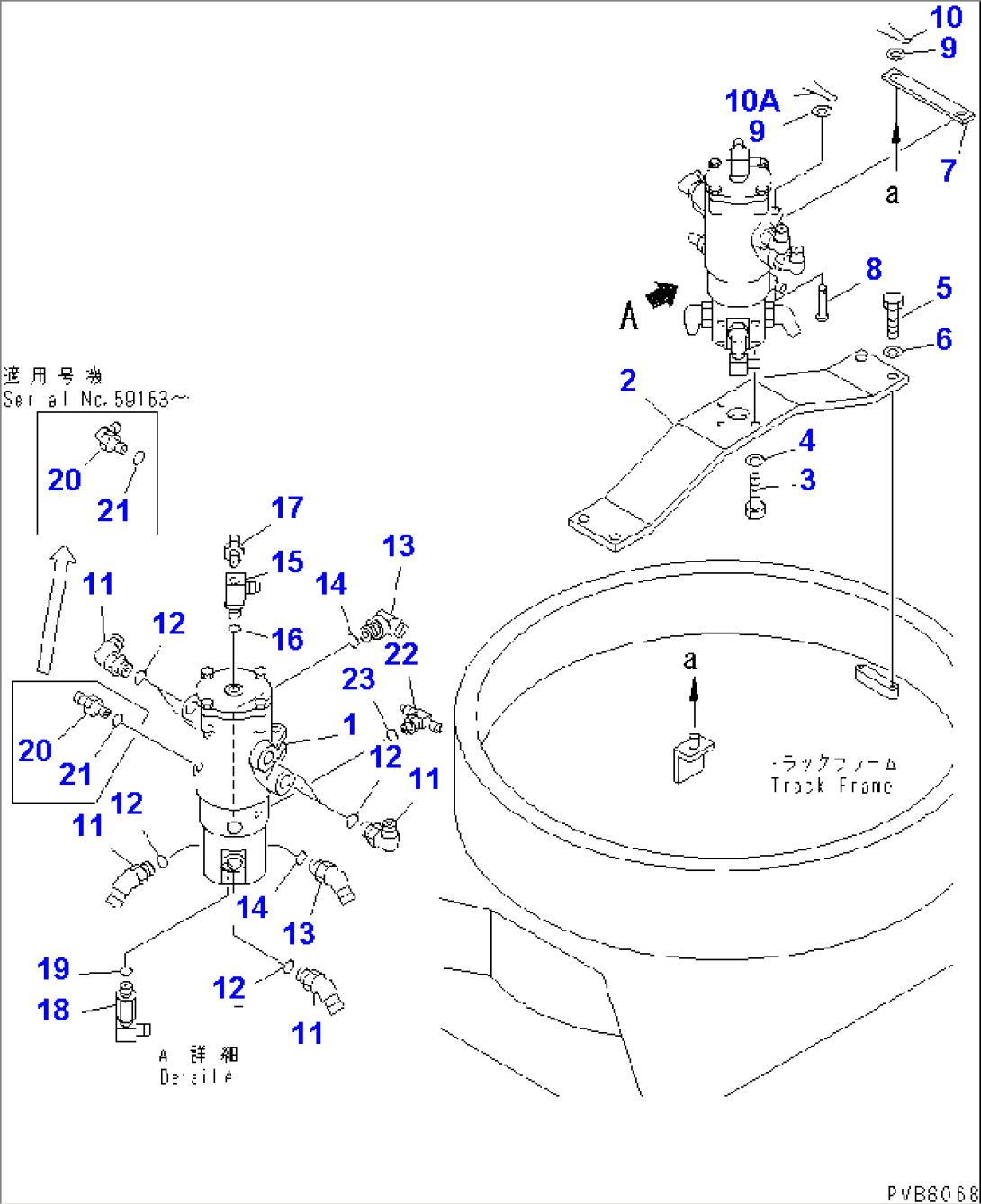

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (703-08-00110) | SWIVEL JOINT ASS'Y | 60664- | |
| (703-08-33232) | SWIVEL JOINT ASS'Y,(SEE FIG.Y1627-01A0) | 47571-60663 | ||
| (703-08-33232) | SWIVEL JOINT ASS'Y,(SEE FIG.Y1627-01A0) | 60664- | ||
| 2 | 203-30-66122 | BRACKET | 52401- | |
| 3 | 01010-81235 | BOLT | 52401- | |
| 4 | 01643-31232 | WASHER | 45001- | |
| 5 | 01010-81640 | BOLT | 52401- | |
| 6 | 01643-31645 | WASHER | 45001- | |
| 7 | 203-60-52160 | LINK | 45001- | |
| 8 | 209-62-52560 | PIN | 54625- | |
| 201-60-11230 | PIN | 45001-54624 | ||
| 9 | 01641-21626 | WASHER | 45001- | |
| 10 | 04050-14025 | PIN,COTTER | 45001- | |
| 10A | 04052-11664 | PIN,COTTER | 54625- | |
| 04050-14025 | PIN,COTTER | 45001-54624 | ||
| 11 | 07235-10522 | ELBOW | 52401- | |
| 12 | 07002-12434 | O-RING | 45001- | |
| 13 | 07236-10522 | ELBOW | 45001- | |
| 14 | 07002-12434 | O-RING | 45001- | |
| 15 | 203-62-56710 | ELBOW | 45001- | |
| 16 | 07002-02034 | O-RING | 45001- | |
| 17 | 07238-10315 | CONNECTOR | 45001- | |
| 18 | 203-62-57891 | ELBOW | 45001- | |
| 19 | 07002-02034 | O-RING | 45001- | |
| 20 | 07235-10210 | ELBOW | 59163- | |
| 07230-20210 | UNION | 45001-59162 | ||
| 21 | 07002-01423 | O-RING | 45001- | |
| 22 | 208-26-11611 | TEE | 45001- | |
| 23 | 07002-01423 | O-RING | 45001- |
