| Item | Part No. | Part Name | Qty | Serial No. |
| 2A7-70-00060 | ARM ASSEMBLY | |||
| 1 | (NSS) | ARM | ||
| 2 | 207-70-72341 | BUSHING | ||
| 3 | 207-70-32150 | BUSHING | ||
| 4 | 207-70-72460 | BUSHING | ||
| 5 | 07020-00000 | FITTING, GREASE | ||
| 6 | 07145-00110 | SEAL, DUST |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc390lc 11 s/n a30401 up
- Work equipment
- T1200 002001 arm, 3200 mm arm and bushing
Поиск по каталогу

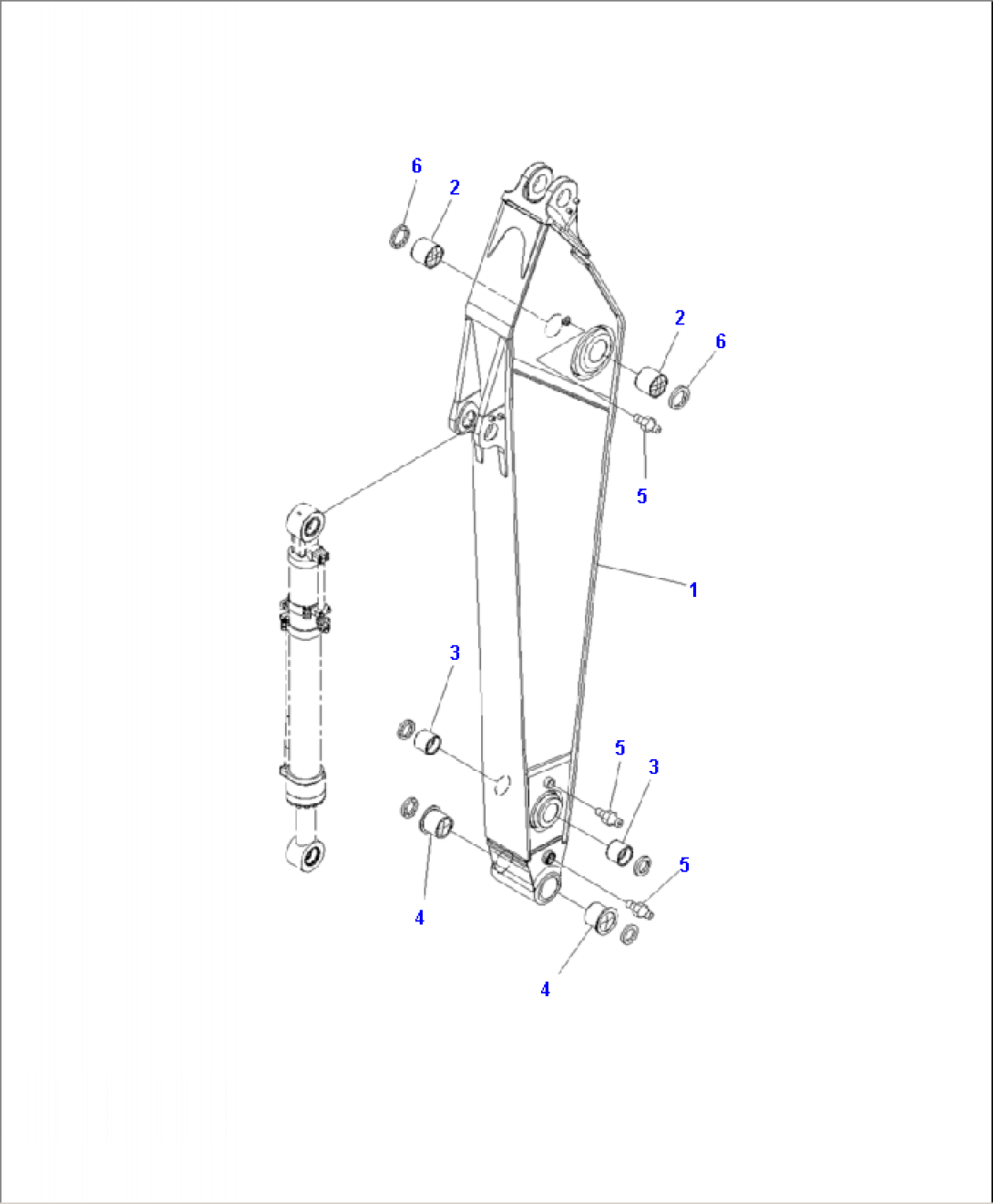

T1200-002001 ARM, 3200 MM ARM AND BUSHING
