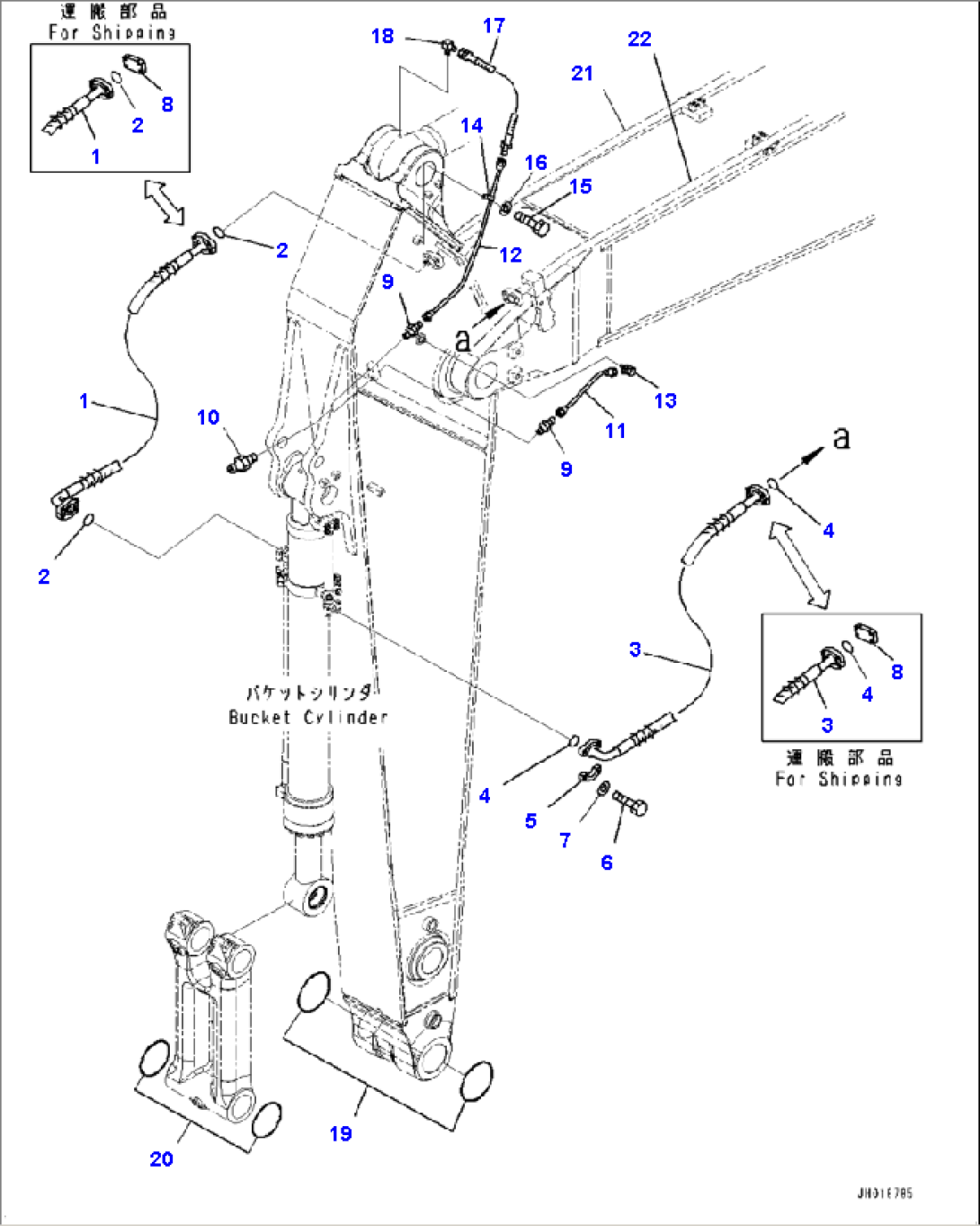

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-54680 | HOSE | ||
| 2 | 07000-13032 | O-RING | ||
| 3 | 208-62-27180 | HOSE | ||
| 4 | 07000-13032 | O-RING | ||
| 5 | 07371-31049 | FLANGE, SPLIT | ||
| 6 | 07372-21035 | BOLT | ||
| 7 | 01643-51032 | WASHER | ||
| 8 | 07379-01044 | FLANGE | ||
| 9 | 20Y-70-11540 | CONNECTOR | ||
| 10 | 07020-00000 | FITTING, GREASE | ||
| 11 | 208-70-42110 | TUBE | ||
| 12 | 208-70-42120 | TUBE | ||
| 13 | 20Y-25-11270 | ELBOW | ||
| 14 | 04434-50812 | CLIP | ||
| 15 | 01010-81220 | BOLT | ||
| 16 | 01643-31232 | WASHER | ||
| 17 | 208-70-65770 | HOSE | ||
| 18 | 205-70-51380 | ELBOW | ||
| 19 | 208-70-33181 | O-RING | ||
| 20 | 207-70-33181 | O-RING | ||
| 21 | TUBE (SEE FIG. T1110-001003 ) | |||
| 22 | TUBE (SEE FIG. T1110-001003 ) |
