| Item | Part No. | Part Name | Qty | Serial No. |

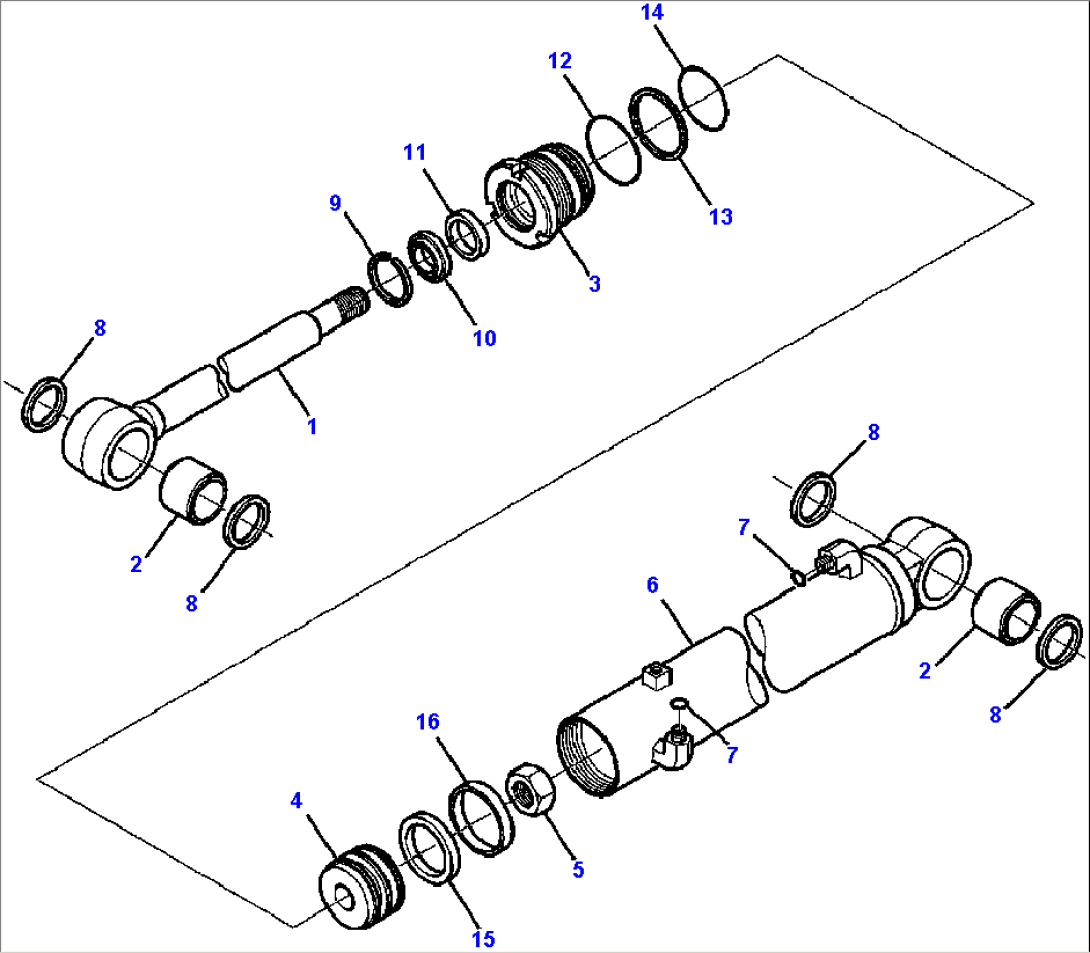

| 37C-6C-11200 | DUMP CYLINDER, L.H. | A40001-- | ||
| 1 | 37C-6C-11D00 | PISTON ROD | A40001-- | |
| 2 | 3F0582621 | BUSHING | A40001-- | |
| 3 | 3F10A7603 | CYLINDER HEAD | A40001-- | |
| 4 | 500466150 | PISTON | A40001-- | |
| 5 | 801920113 | NUT | A40001-- | |
| 6 | 37C-6C-11C00 | CYLINDER | A40001-- | |
| 7 | 02896-11012 | O-RING | A40001-- | |
| 878010284 | KIT, GASKET | A40001-- | ||
| 8 | (NSS) | GASKET | A40001-- | |
| 9 | (NSS) | RING, SNAP | A40001-- | |
| 10 | (NSS) | GASKET | A40001-- | |
| 11 | (NSS) | GASKET | A40001-- | |
| 12 | (NSS) | O-RING | A40001-- | |
| 13 | (NSS) | RING, WEAR | A40001-- | |
| 14 | (NSS) | O-RING | A40001-- | |
| 15 | (NSS) | GASKET | A40001-- | |
| 16 | (NSS) | PACKING ROD | A40001-- |
