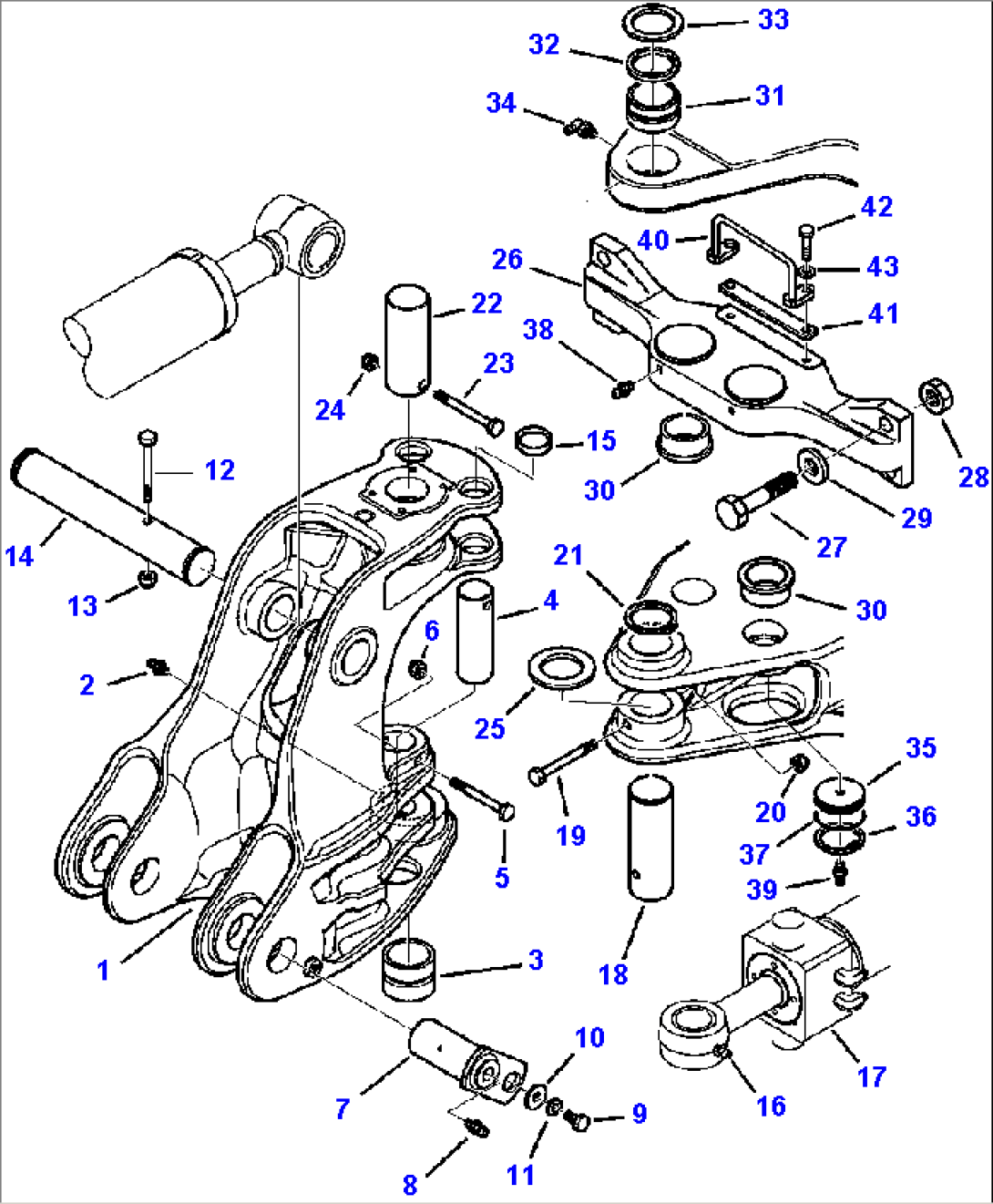

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-2511 | SWING BRACKET | A43001-- | |
| 2 | 21D-09-89140 | FITTING, GREASE | A43001-- | |
| 3 | 42N-856-2520 | BUSHING | A43001-- | |
| 4 | 42N-856-2220 | PIN, 55 MM OD SWING CYLINDER | A43001-- | |
| 5 | 01011-81210 | BOLT | A43001-- | |
| 6 | 21D-09-24200 | NUT | A43001-- | |
| 7 | 42N-856-1211 | PIN, 60 MM OD BOOM | A43001-- | |
| 8 | 21D-09-89140 | FITTING, GREASE | A43001-- | |
| 9 | 01011-81225 | BOLT | A43001-- | |
| 10 | 42N-856-2240 | WASHER | A43001-- | |
| 11 | 01643-31232 | WASHER | A43001-- | |
| 12 | 01011-81210 | BOLT | A43001-- | |
| 13 | 21D-09-24200 | NUT | A43001-- | |
| 14 | 42N-856-1222 | PIN, 60 MM OD BOOM CYLINDER | A43001-- | |
| 15 | 500 610 633 | PLUG, CUP | A43001-- | |
| 16 | 21D-09-89140 | FITTING, GREASE | A43001-- | |
| 17 | SWING CYLINDER ( SEE FIG. H7000-01A0 ) | A43001-- | ||
| 18 | 42N-856-1740 | PIN, 65 MM OD BOTTOM | A43001-- | |
| 19 | 01011-81230 | BOLT | A43001-- | |
| 20 | 21D-09-24200 | NUT | A43001-- | |
| 21 | 42N-70-12330 | SNAP RING | A43001-- | |
| 22 | 42N-856-1780 | PIN, 65 MM OD TOP | A43001-- | |
| 23 | 01011-81230 | BOLT | A43001-- | |
| 24 | 21D-09-24200 | NUT | A43001-- | |
| 25 | 37B-09-4F064 | SHIM | A43001-- | |
| 26 | 42N-856-2360 | TOP BRACKET | A43001-- | |
| 27 | 01010-82475 | BOLT | A43001-- | |
| 28 | 01580-12419 | NUT | A43001-- | |
| 29 | 37A-09-3Z024 | WASHER | A43001-- | |
| 30 | 42N-856-2331 | BUSHING, CYLINDER | A43001-- | |
| 31 | 42N-856-2470 | BUSHING, TOP | A43001-- | |
| 32 | 42N-6C-11990 | SEAL | A43001-- | |
| 33 | 42N-856-2251 | RING | A43001-- | |
| 34 | 21D-09-89300 | FITTING, GREASE | A43001-- | |
| 35 | 42N-856-2350 | COVER, LOWER | A43001-- | |
| 36 | 04065-07525 | SNAP RING | A43001-- | |
| 37 | 37B-09-11842 | O-RING | A43001-- | |
| 38 | 21D-09-89140 | FITTING, GREASE | A43001-- | |
| 39 | 21D-09-89300 | FITTING, GREASE | A43001-- | |
| 40 | 42N-43-14910 | CLAMP, HOSE | A43001-- | |
| 41 | 42N-43-14920 | MAT, RUBBER | A43001-- | |
| 42 | 01010-81025 | BOLT | A43001-- | |
| 43 | 01643-31032 | WASHER | A43001-- |
