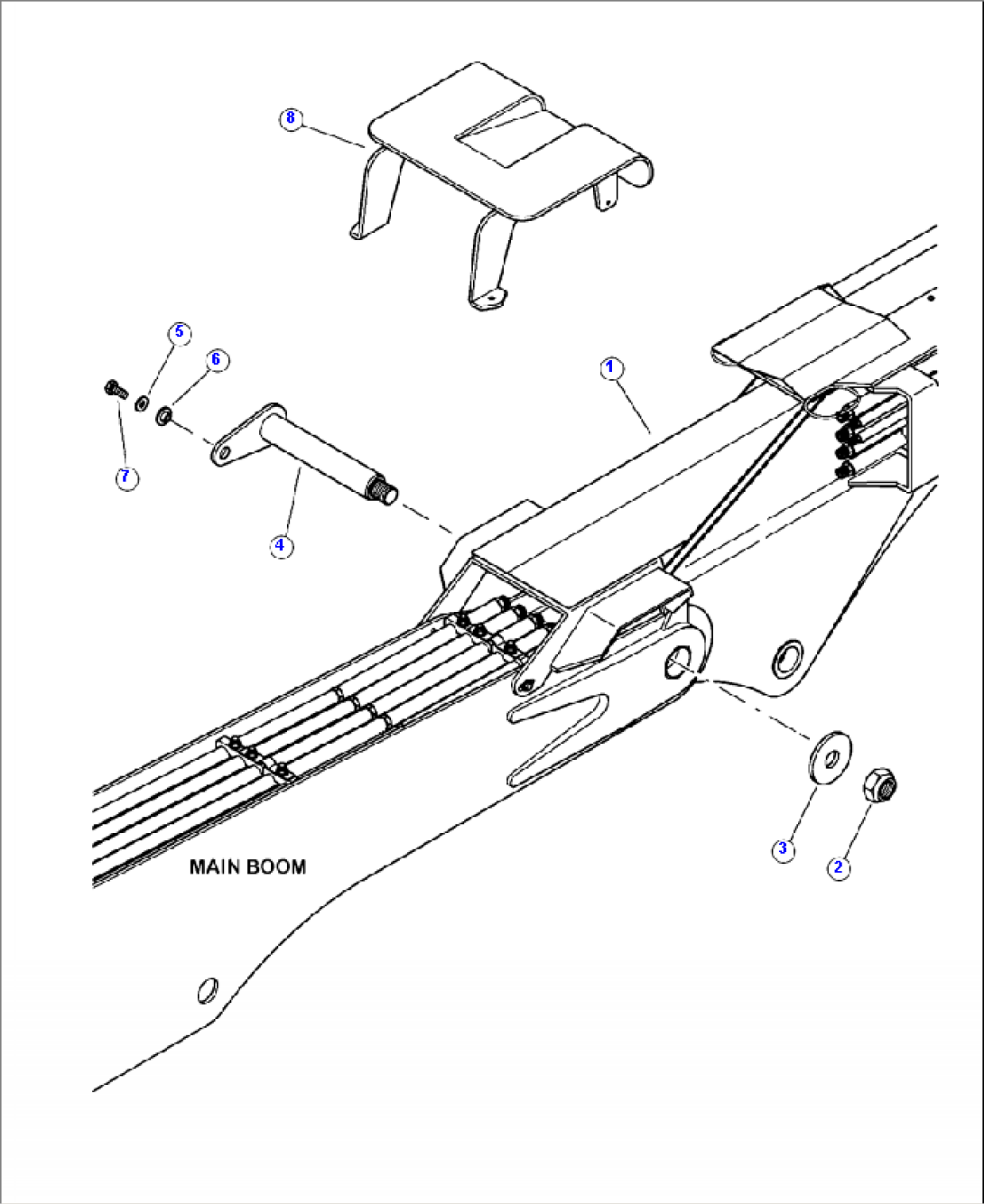

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ARM, TELESCOPIC ( SEE FIG. T3000-01A0 ) | A10001-- | ||
| 2 | 10728KF | NUT, ZINC PLATED NYLOCK (2 IN - 12) | A10001-- | |
| 3 | 19384KF | WASHER, BURNED | A10001-- | |
| 4 | 82783KF | PIN (3.5 IN x 17.5 IN) | A10001-- | |
| 5 | 15550KF | WASHER, SAE FLAT (3/4 IN) | A10001-- | |
| 6 | 18570KF | BUSHING, PIN RETAINING | A10001-- | |
| 7 | 15549KF | BOLT (3/4 IN x 2 IN) | A10001-- | |
| 8 | 80524KF | GUARD, HOSE | A10001-- |
