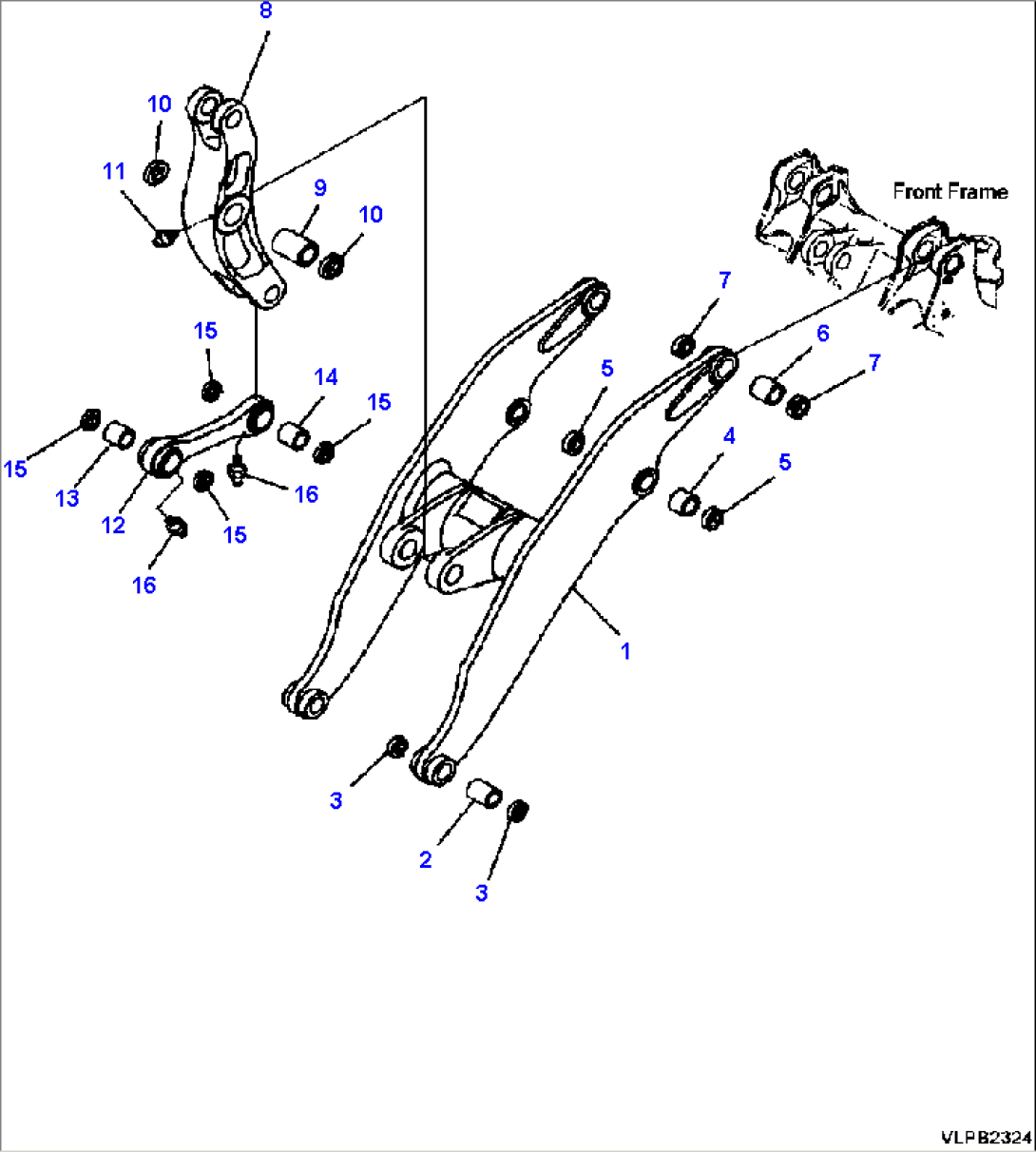

| Item | Part No. | Part Name | Qty | Serial No. |
| 426-V84-2660 | BOOM - LOGGER | A52001-- | ||
| 1 | (NSS) | BOOM | A52001-- | |
| 2 | 426-70-11710 | BUSHING | A52001-- | |
| 3 | 421-09-11330 | SEAL, DUST | A52001-- | |
| 4 | 426-70-11871 | BUSHING | A52001-- | |
| 5 | 421-09-11330 | SEAL, DUST | A52001-- | |
| 6 | 426-70-11890 | BUSHING | A52001-- | |
| 7 | 425-09-11110 | SEAL, DUST. | A52001-- | |
| 426-857-2710 | BELLCRANK - LOGGER | A52001-- | ||
| 8 | (NSS) | BELLCRANK | A52001-- | |
| 9 | 426-70-11860 | BUSHING | A52001-- | |
| 10 | 426-09-11110 | SEAL, DUST | A52001-- | |
| 11 | 07020-00000 | FITTING GREASE | A52001-- | |
| 426-857-0034 | BUCKET LINK - LOGGER | A52001-- | ||
| 12 | (NSS) | LINK | A52001-- | |
| 13 | 426-70-11720 | BUSHING | A52001-- | |
| 14 | 426-70-11820 | BUSHING | A52001-- | |
| 15 | 425-09-11110 | SEAL, DUST | A52001-- | |
| 16 | 07020-00000 | FITTING, GREASE | A52001-- |
