| Item | Part No. | Part Name | Qty | Serial No. |

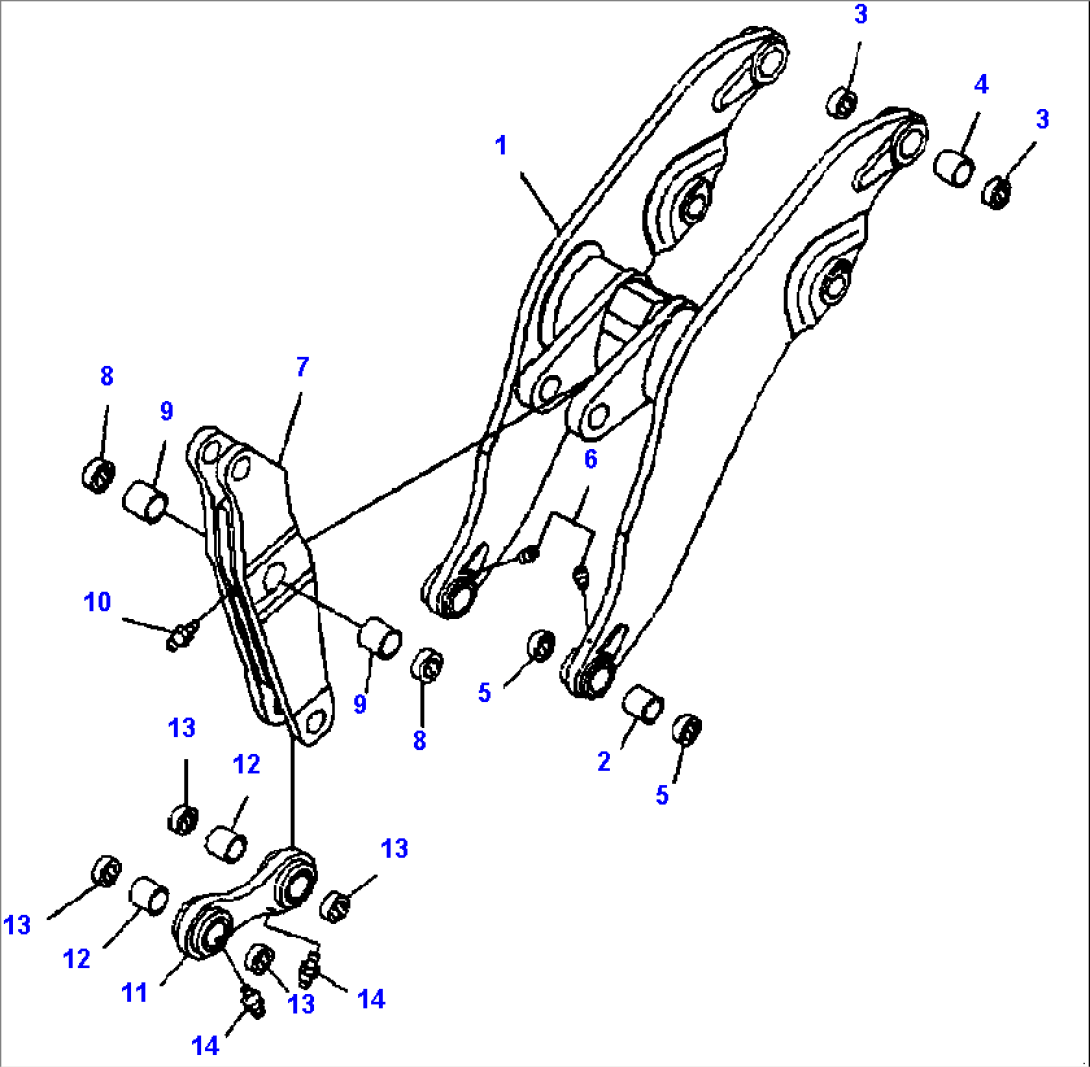

| 427-858-2101 | BOOM ASSEMBLY, LOAD & CARRY | A50001-- | ||
| 1 | (NSS) | BOOM | A50001-- | |
| 2 | 427-N42-1133 | BUSHING | A50001-- | |
| 3 | 428-70-11895 | BUSHING | A50001-- | |
| 4 | 427-09-11120 | SEAL | A50001-- | |
| 5 | 427-09-11110 | SEAL | A50001-- | |
| 6 | 07042-70108 | PLUG | A50001-- | |
| 427-858-2201 | BELLCRANK ASSEMBLY | A50001-- | ||
| 7 | (NSS) | BELLCRANK | A50001-- | |
| 8 | 427-09-11110 | SEAL | A50001-- | |
| 9 | 428-70-11861 | BUSHING | A50001-- | |
| 10 | 07020-00000 | FITTING, GREASE | A50001-- | |
| 427-858-2301 | LINK ASSEMBLY | A50001-- | ||
| 11 | (NSS) | LINK | A50001-- | |
| 12 | 427-N42-1133 | BUSHING | A50001-- | |
| 13 | 427-09-11120 | SEAL | A50001-- | |
| 14 | 07020-00000 | FITTING, GREASE | A50001-- |
