| Item | Part No. | Part Name | Qty | Serial No. |

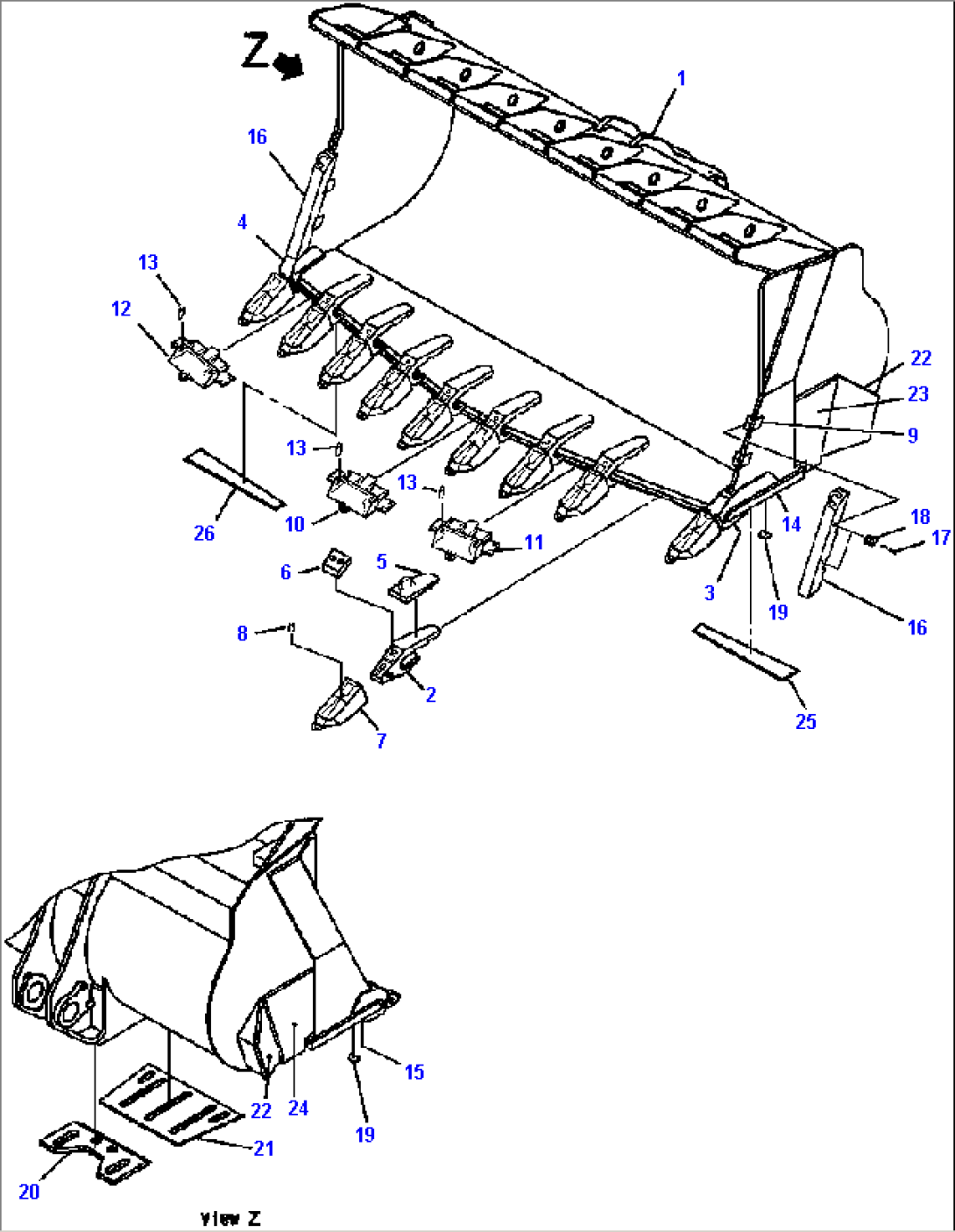

| 427-818-A300 | BUCKET ASSEMBLY, 13 CUBIC METERS | A50001-- | ||
| 1 | 427-818-A310 | BUCKET | A50001-- | |
| 427-70-A3100 | EDGE ASSEMBLY | A50001-- | ||
| 2 | 427-70-A3120 | ADAPTER, CENTER | A50001-- | |
| 3 | 427-70-A3130 | ADAPTER, LH | A50001-- | |
| 4 | 427-70-A3140 | ADAPTER, RH | A50001-- | |
| 5 | 427-70-A3150 | CAP | A50001-- | |
| 6 | 427-70-A3160 | CAP | A50001-- | |
| 7 | 427-70-A3170 | TOOTH | A50001-- | |
| 8 | 427-70-A3180 | LOCK, TOOTH | A50001-- | |
| 9 | 427-70-A3190 | BRACKET | A50001-- | |
| 10 | 427-70-A3210 | PROTECTOR, CENTER | A50001-- | |
| 11 | 427-70-A3220 | PROTECTOR, LH | A50001-- | |
| 12 | 427-70-A3230 | PROTECTOR, RH | A50001-- | |
| 13 | 427-70-A3240 | LOCK, PROTECTOR | A50001-- | |
| 14 | 427-70-A3250 | WEAR CORNER, LH | A50001-- | |
| 15 | 427-70-A3260 | WEAR CORNER, RH | A50001-- | |
| 16 | 427-70-A3270 | SHROUD | A50001-- | |
| 17 | 427-70-A3280 | PIN | A50001-- | |
| 18 | 427-70-A3290 | RUBBER | A50001-- | |
| 19 | 427-70-A3310 | STABILIZER | A50001-- | |
| 20 | (NSS) | PLATE | A50001-- | |
| 21 | (NSS) | PLATE | A50001-- | |
| 22 | (NSS) | GUARD | A50001-- | |
| 23 | (NSS) | PLATE, LH | A50001-- | |
| 24 | (NSS) | PLATE, RH | A50001-- | |
| 25 | (NSS) | PLATE, LH | A50001-- | |
| 26 | (NSS) | PLATE, RH | A50001-- |
