| Item | Part No. | Part Name | Qty | Serial No. |

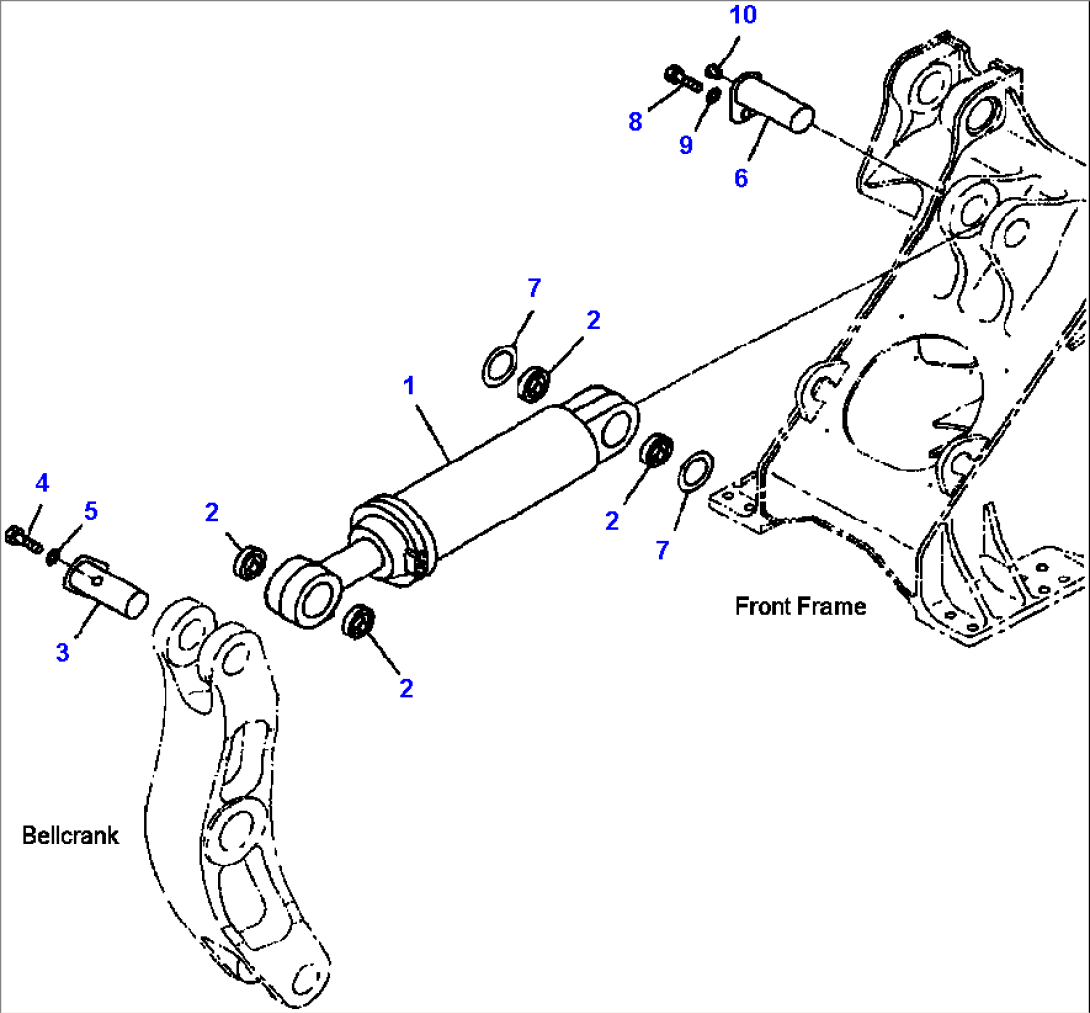

| 1 | CYLINDER ASSEMBLY, DUMP (SEE FIG. T4150-01A1 ) | A52001-- | ||
| 2 | ||||
| 2 | ||||
| 2 | 425-09-11110 | SEAL, DUST | A52001-- | |
| 3 | 426-70-11941 | PIN | A52001-- | |
| 4 | 01010-81630 | BOLT | A52001-- | |
| 5 | 425-70-11290 | WASHER | A52001-- | |
| 6 | 426-70-11950 | PIN | A52001-- | |
| 7 | 426-70-11320 | SHIM, 1.5 MM | A52001-- | |
| 8 | 01010-81630 | BOLT | A52001-- | |
| 9 | 425-70-11290 | WASHER | A52001-- | |
| 10 | 07049-03342 | PLUG | A52001-- |
