| Item | Part No. | Part Name | Qty | Serial No. |

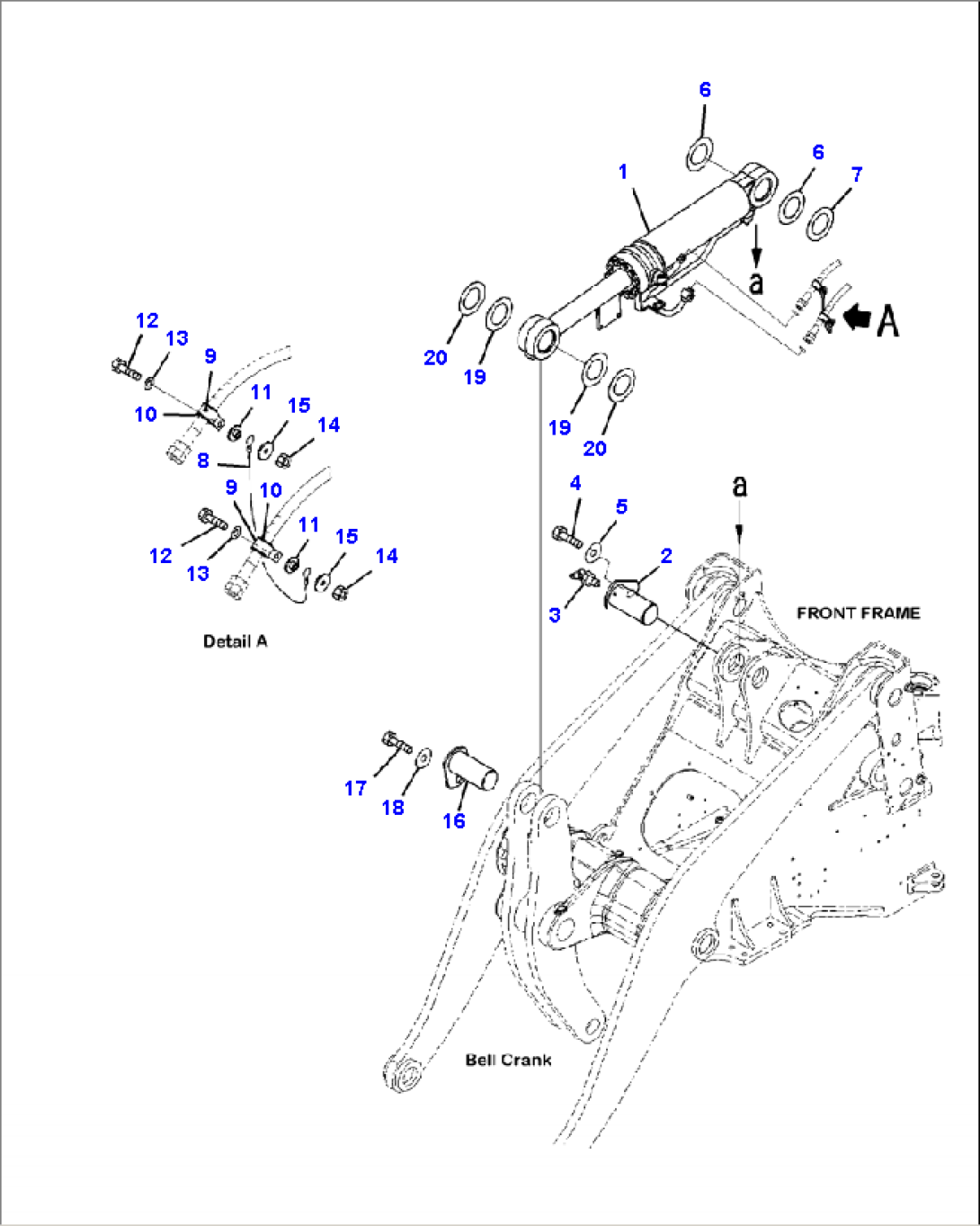

| 1 | CYLINDER, BUCKET ( SEE FIG. T4150-02A1 ) | |||
| 2 | 424-70-11950 | PIN | ||
| 3 | 07020-00900 | FITTING | ||
| 4 | 01010-61630 | BOLT | ||
| 5 | 421-70-11280 | WASHER | ||
| 6 | 423-70-41980 | SHIM, 1.0 MM | ||
| 7 | 421-70-11481 | SHIM, 3.0 MM | ||
| 8 | 419-62-13460 | WIRE | ||
| 9 | 04434-53411 | CLIP | ||
| 10 | 07095-20627 | CUSHION | ||
| 11 | 201-54-35890 | COLLAR | ||
| 12 | 01010-80830 | BOLT | ||
| 13 | 01643-30823 | WASHER | ||
| 14 | 01580-10806 | NUT | ||
| 15 | 11Y-54-18190 | WASHER | ||
| 16 | 424-70-11940 | PIN | ||
| 17 | 01010-61630 | BOLT | ||
| 18 | 421-70-11280 | WASHER | ||
| 19 | 423-70-41980 | SHIM, 1.0 MM | ||
| 20 | 421-70-11481 | SHIM, 3.0 MM |
