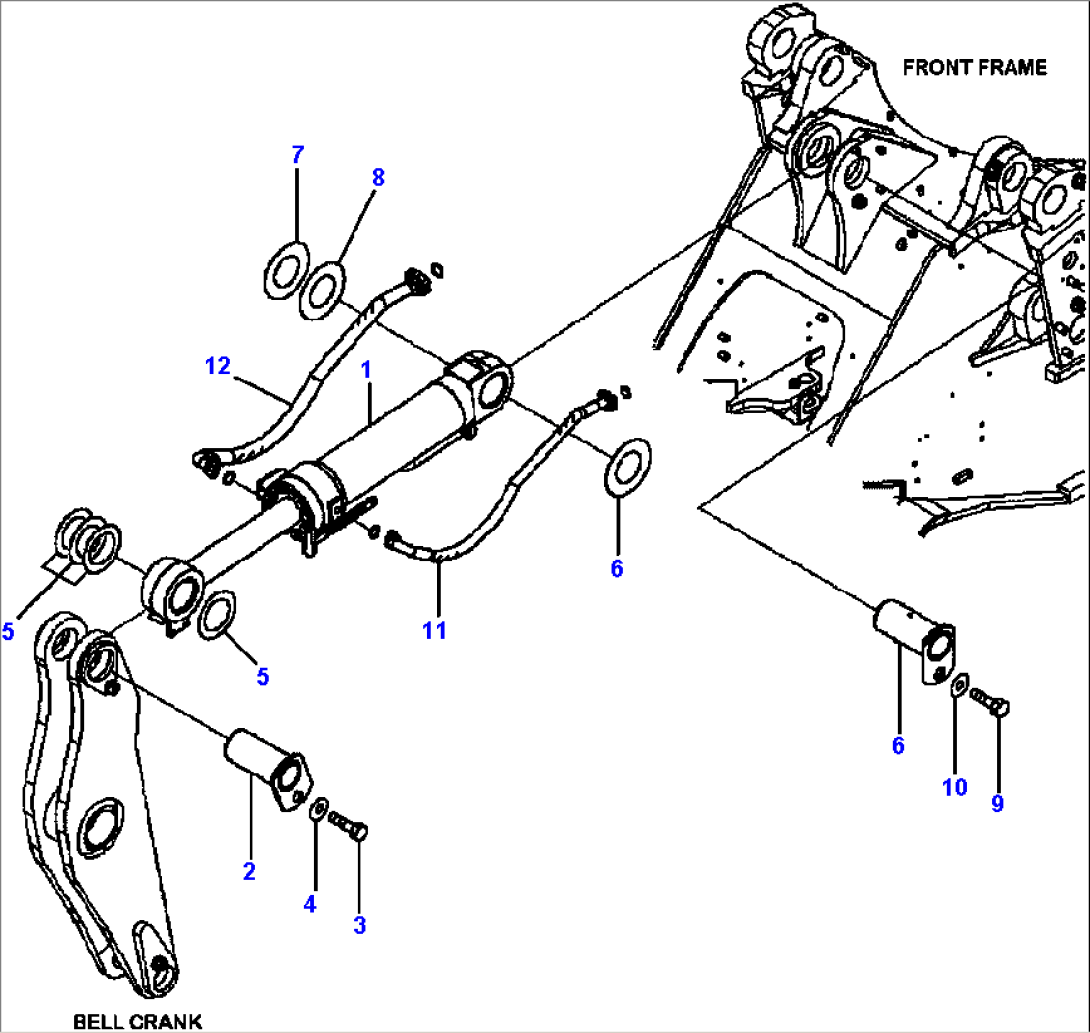

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CYLINDER (SEE FIG. T4150-01A0) | A45001-- | ||
| 2 | 421-70-11940 | PIN, CYLINDER TO BELL CRANK | A45001-- | |
| 3 | 01010-81630 | BOLT | A45001-- | |
| 4 | 421-70-11280 | WASHER | A45001-- | |
| 5 | 421-70-41410 | SHIM, T=1.0 | A45001-- | |
| 6 | 421-70-21960 | PIN, CYLINDER TO FRAME | A45001-- | |
| 7 | 421-70-41450 | SHIM, T=1.0 | A45001-- | |
| 8 | 208-70-31310 | SPACER, 0.8 MM | A45001-- | |
| 9 | 01010-81630 | BOLT | A45001-- | |
| 10 | 421-70-11280 | WASHER | A45001-- | |
| 11 | HOSE (SEE FIG. H4200-05A2 ) | A45001-- | ||
| 12 | HOSE (SEE FIG. H4200-05A2 ) | A45001-- |
