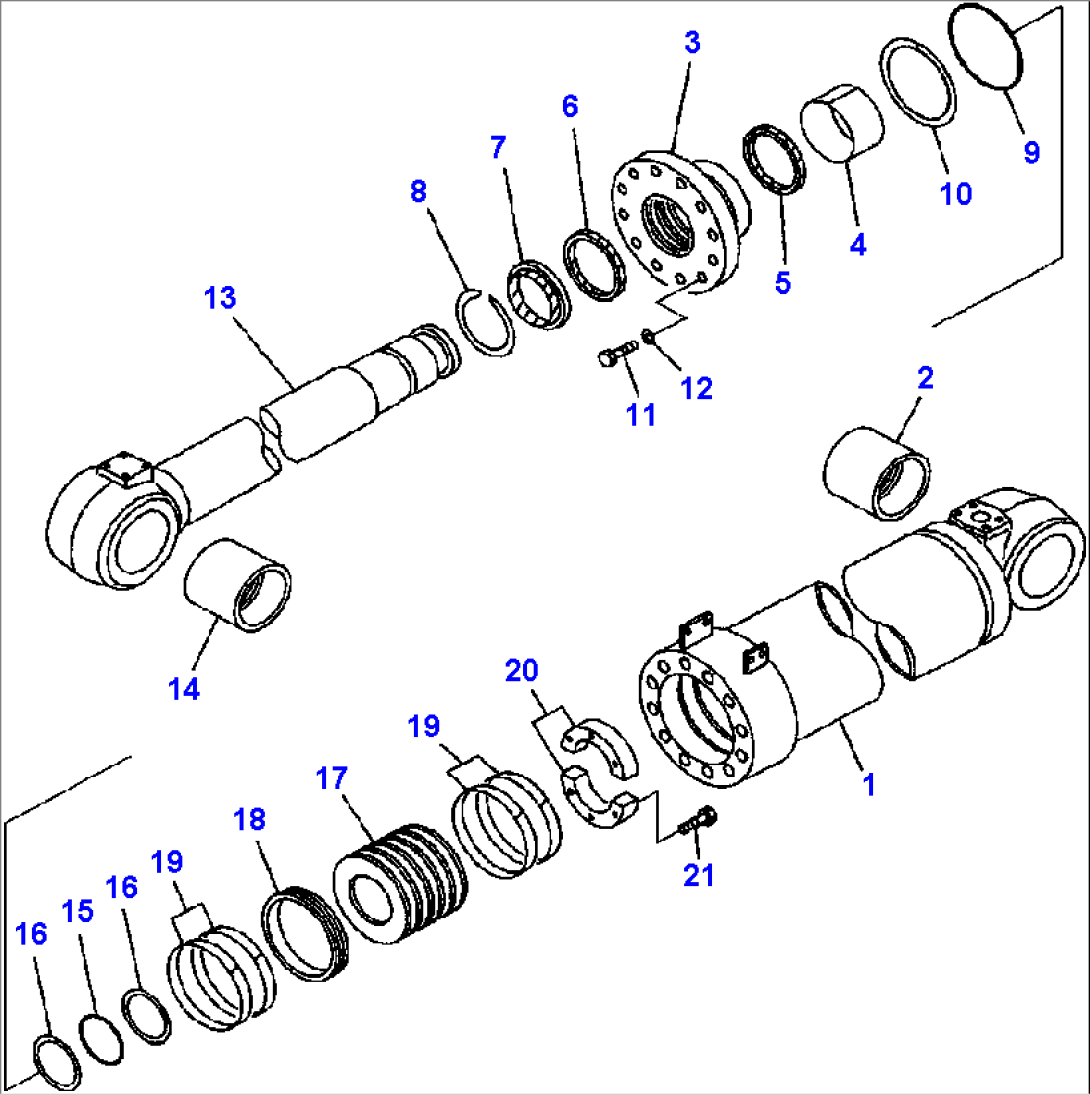

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-03212 | CYLINDER, DUMP | A50001-- | ||
| 1 | 707-13-30081 | CYLINDER | A50001-- | |
| 2 | 707-76-18040 | BUSHING | A50001-- | |
| 3 | 707-27-30031 | HEAD, CYLINDER | A50001-- | |
| 4 | 707-52-91550 | BUSHING | A50001-- | |
| 5 | 707-51-18640 | RING BUFFER | A50001-- | |
| 6 | 707-51-18130 | PACKING, ROD | A50001-- | |
| 7 | 707-56-18520 | SEAL, DUST | A50001-- | |
| 8 | 07179-15200 | RING, SNAP | A50001-- | |
| 9 | 07000-15290 | O-RING | A50001-- | |
| 10 | 707-35-93020 | RING, BACK-UP | A50001-- | |
| 11 | 01011-83660 | BOLT | A50001-- | |
| 12 | 01643-33690 | WASHER | A50001-- | |
| 13 | 707-58-18013 | ROD, PISTON | A50001-- | |
| 14 | 707-76-18040 | BUSHING | A50001-- | |
| 15 | 07000-15150 | O-RING | A50001-- | |
| 16 | 707-35-52991 | RING, BACK-UP | A50001-- | |
| 17 | 707-36-30013 | PISTON | A50001-- | |
| 18 | 707-44-30180 | RING, PISTON | A50001-- | |
| 19 | 707-39-30820 | RING, WEAR | A50001-- | |
| 20 | 707-40-30013 | SPACER | A50001-- | |
| 21 | 01010-61670 | BOLT | A50001-- | |
| F1 - INCLUDED IN SERVICE KIT 707-99-96200. |
