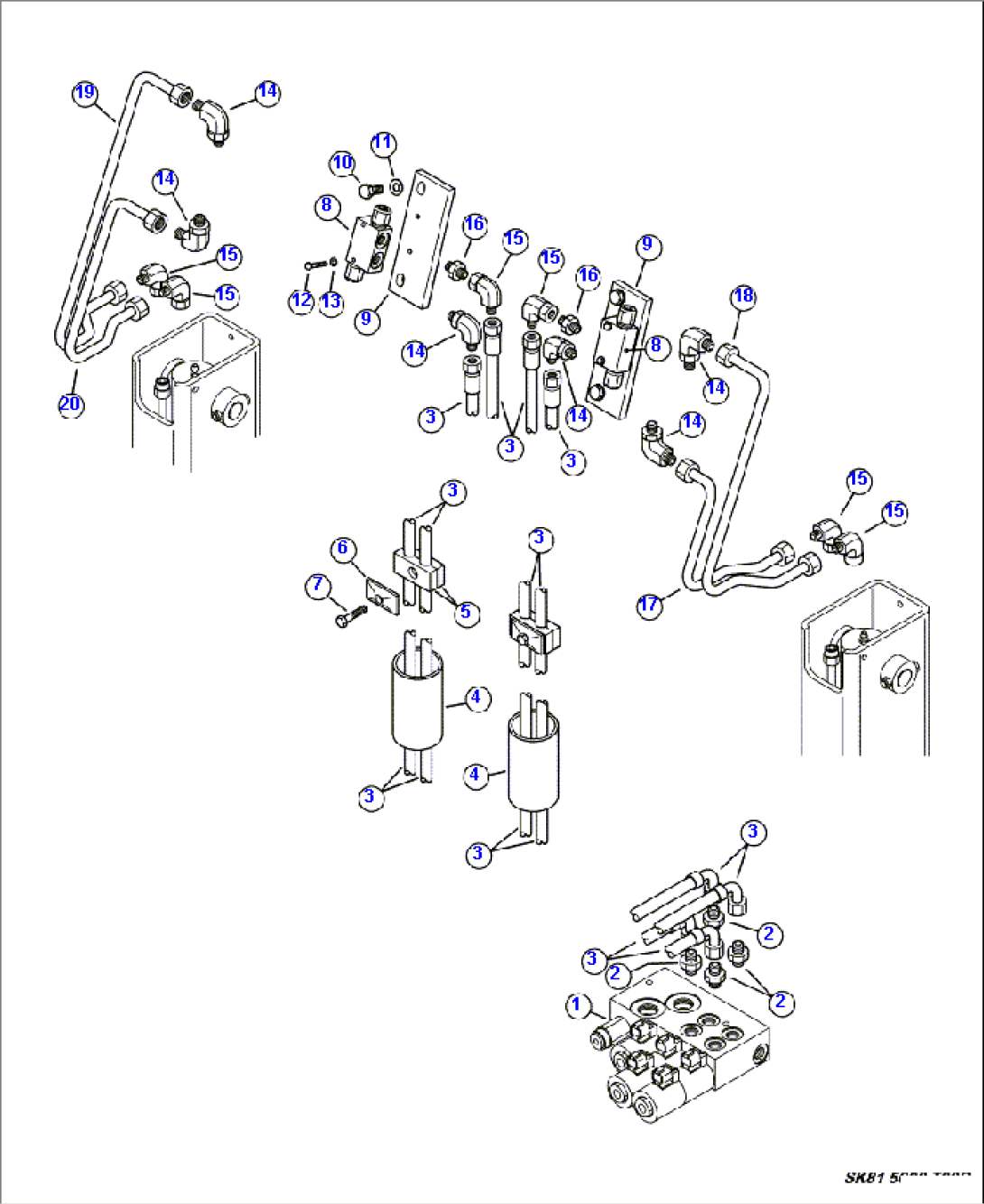

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VALVE, PILOT (SEE FIG. T6104-01A0 ) | A10001 and UP- | ||
| 2 | 42N-833-1350 | CONNECTOR | A10001 and UP- | |
| 21D-09-69910 | O-RING, PORT | A10001 and UP- | ||
| 02896-11009 | O-RING, HOSE | A10001 and UP- | ||
| 3 | 37A-846-1720 | HOSE, TO VALVE | A10001 and UP- | |
| 4 | 37A-846-1730 | WRAP, HOSE - CUT TO FIT | A10001 and UP- | |
| 5 | 37A-846-1740 | CLAMP, RUBBER | A10001 and UP- | |
| 6 | 37A-62-14180 | PLATE, CLAMP | A10001 and UP- | |
| 7 | 01016-50845 | BOLT | A10001 and UP- | |
| 8 | 37A-62-12540 | VALVE | A10001 and UP- | |
| 9 | 37A-846-1781 | SUPPORT, VALVE | A10001 and UP- | |
| 10 | 01010-81040 | BOLT | A10001 and UP- | |
| 11 | 01643-31032 | WASHER | A10001 and UP- | |
| 12 | 37A-09-11030 | BOLT | A10001 and UP- | |
| 13 | 01640-20508 | WASHER | A10001 and UP- | |
| 14 | 37D-09-6Z503 | ELBOW | A10001 and UP- | |
| 21D-09-69960 | O-RING, PORT | A10001 and UP- | ||
| 02896-11009 | O-RING, HOSE | A10001 and UP- | ||
| 15 | 37D-09-6X641 | ELBOW | A10001 and UP- | |
| 02896-11009 | O-RING, HOSE | A10001 and UP- | ||
| 16 | 37D-09-66103 | CONNECTOR | A10001 and UP- | |
| 21D-09-69960 | O-RING, PORT | A10001 and UP- | ||
| 02896-11009 | O-RING, HOSE | A10001 and UP- | ||
| 17 | 37A-846-1620 | TUBE, LEFT PISTON | A10001 and UP- | |
| 18 | 37A-846-1630 | TUBE, LEFT ROD | A10001 and UP- | |
| 19 | 37A-846-1640 | TUBE, RIGHT PISTON | A10001 and UP- | |
| 20 | 37A-846-1650 | TUBE, RIGHT ROD | A10001 and UP- |
