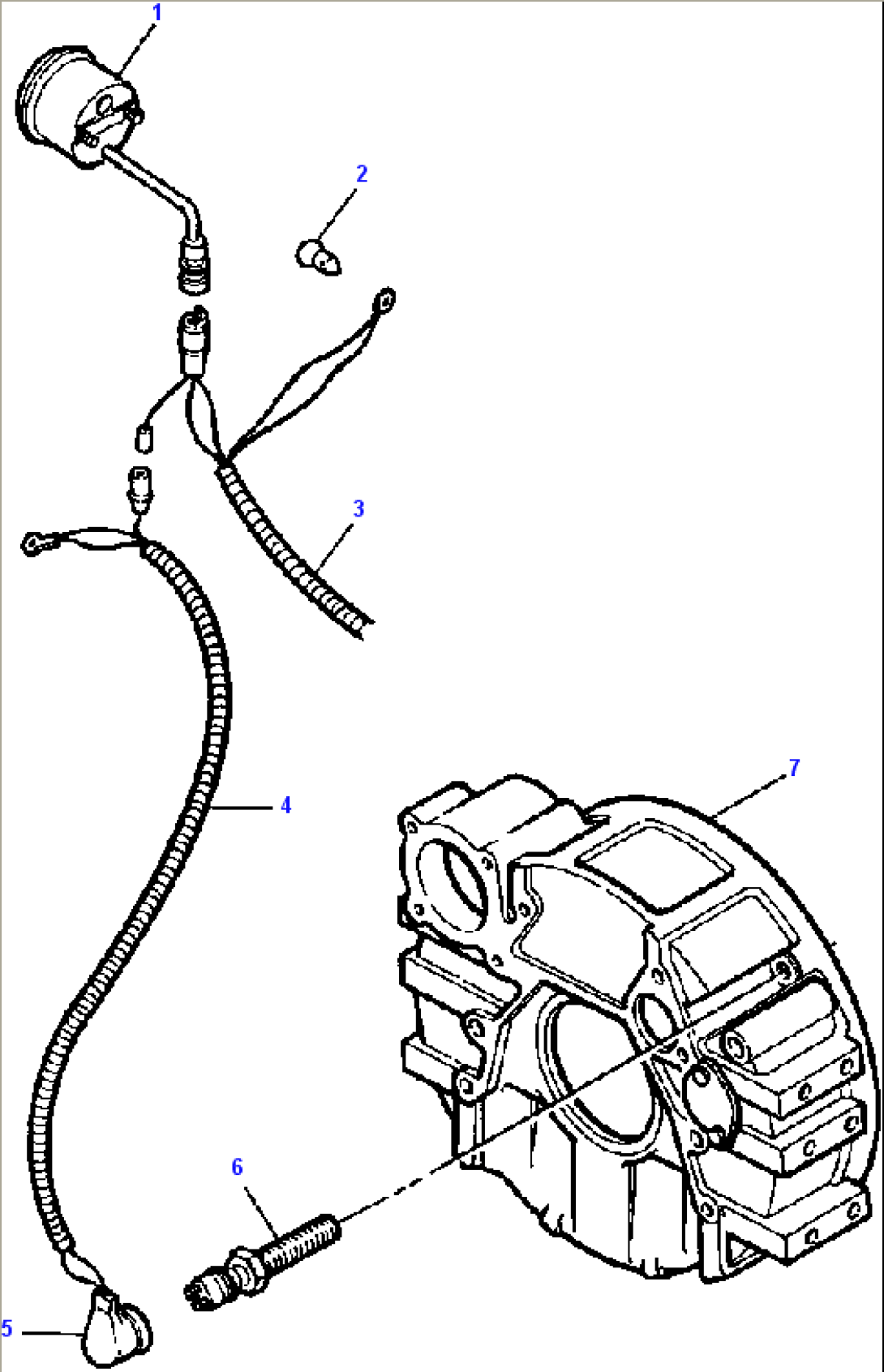

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1253 278 H91 | TACHOMETER | ||
| 2 | 149 174 | BULB | ||
| 3 | HARNESS, PANEL (SEE PG 11-002) | |||
| 4 | HARNESS, MAIN (SEE PG 08-002) | |||
| 5 | 121 552 C1 | CAP, INSULATOR | ||
| 6 | 121 624 C1 | SENDER, TACHOMETER | ||
| 7 | HOUSING, FLYWHEEL (SEE ENGINE PARTS MANUAL) |
