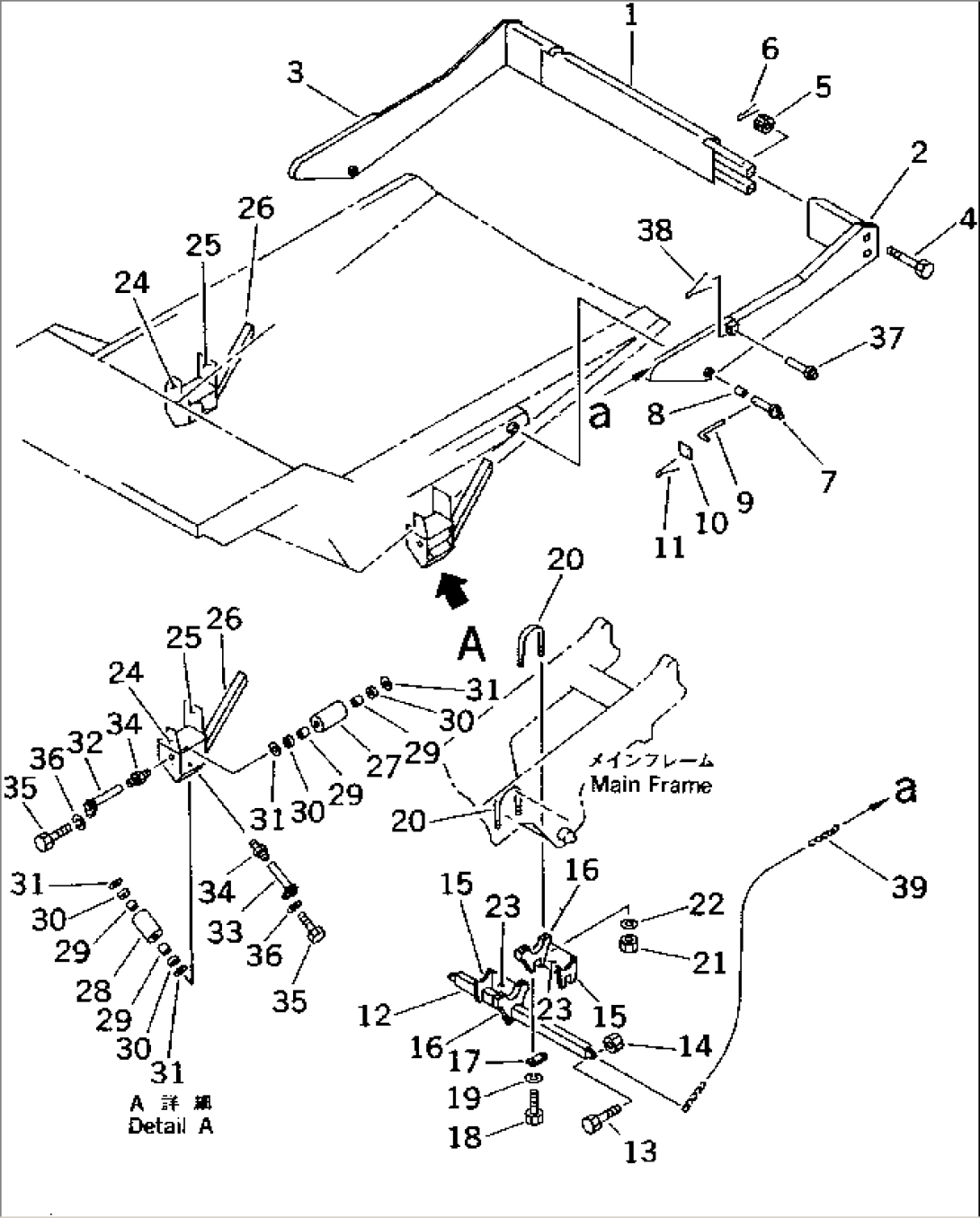

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PH8812-T-E-3 | CENTER REAR ASS'Y | 2001- | |
| 2 | PH8812-T-E-1 | SIDE ARM ASS'Y,L.H. | 2001- | |
| 3 | PH8812-T-E-2 | SIDE ARM ASS'Y,R.H. | 2001- | |
| 4 | PH6861-T-A | BOLT | 2001- | |
| 5 | PH6862-T-A | NUT | 2001- | |
| 6 | PH1708-T-A-4 | PIN,COTTER | 2001- | |
| 7 | PH1409-T-A | PIN,PIVOT | 2001- | |
| 8 | PH1005-T-A | BUSHING | 2001- | |
| 9 | PH2268-T-A | PIN,RETAINER | 2001- | |
| 10 | PH6262-A | PLATE,COVER | 2001- | |
| 11 | PH1708-T-A | PIN,COTTER | 2001- | |
| 12 | PH8964-T-B | TUBE ASS'Y,OUTRIGGER CROSS | 2001- | |
| 13 | PH1668-T-A | BOLT,CHAIN | 2001- | |
| 14 | PH1695-T-A | NUT,LOCK | 2001- | |
| 15 | PH8820-T-D-2 | PLATE,BRAKE | 2001- | |
| 16 | PH8820-T-D-1 | CLAMP,OUTRIGGER | 2001- | |
| 17 | PH8954-T-A | PLATE,CLAMP | 2001- | |
| 18 | PH1618-T-A | CAP,SCREW | 2001- | |
| 19 | PH1660-T-A | WASHER,LOCK | 2001- | |
| 20 | PH8963-A | U-BOLT | 2001- | |
| 21 | PH1664-T-A | NUT | 2001- | |
| 22 | PH1660-T-A | WASHER,LOCK | 2001- | |
| 23 | PH6486-T-A | PLATE | 2001- | |
| 24 | PH8822-T-D-1 | ROLLER,MOUNT¤ L.H. | 2001- | |
| 25 | PH8822-T-D-2 | ROLLER,MOUNT¤ R.H. | 2001- | |
| 26 | PH8823-T-A | ANGLE,CUT | 2001- | |
| 27 | PH8714-T-B-1 | ROLLER | 2001- | |
| 28 | PH8714-T-B-2 | ROLLER | 2001- | |
| 29 | PH7845-T-A | BUSHING | 2001- | |
| 30 | PH8001-A | SEAL,GREASE | 2001- | |
| 31 | PH7761-A-UW | SPACER | 2001- | |
| 32 | PH7992-T-B-2 | PIN | 2001- | |
| 33 | PH7992-T-B-1 | PIN | 2001- | |
| 34 | PH5129-T-A | FITTING,GREASE | 2001- | |
| 35 | PH1616-T-A | CAP,SCREW | 2001- | |
| 36 | PH1660-T-A | WASHER,LOCK | 2001- | |
| 37 | PH6286-B | PIN ASS'Y,LOCKING CHAIN | 2001- | |
| 38 | PH1708-T-A-2 | PIN,COTTER | 2001- | |
| 39 | PH8000-T-A | CHAIN | 2001- |
