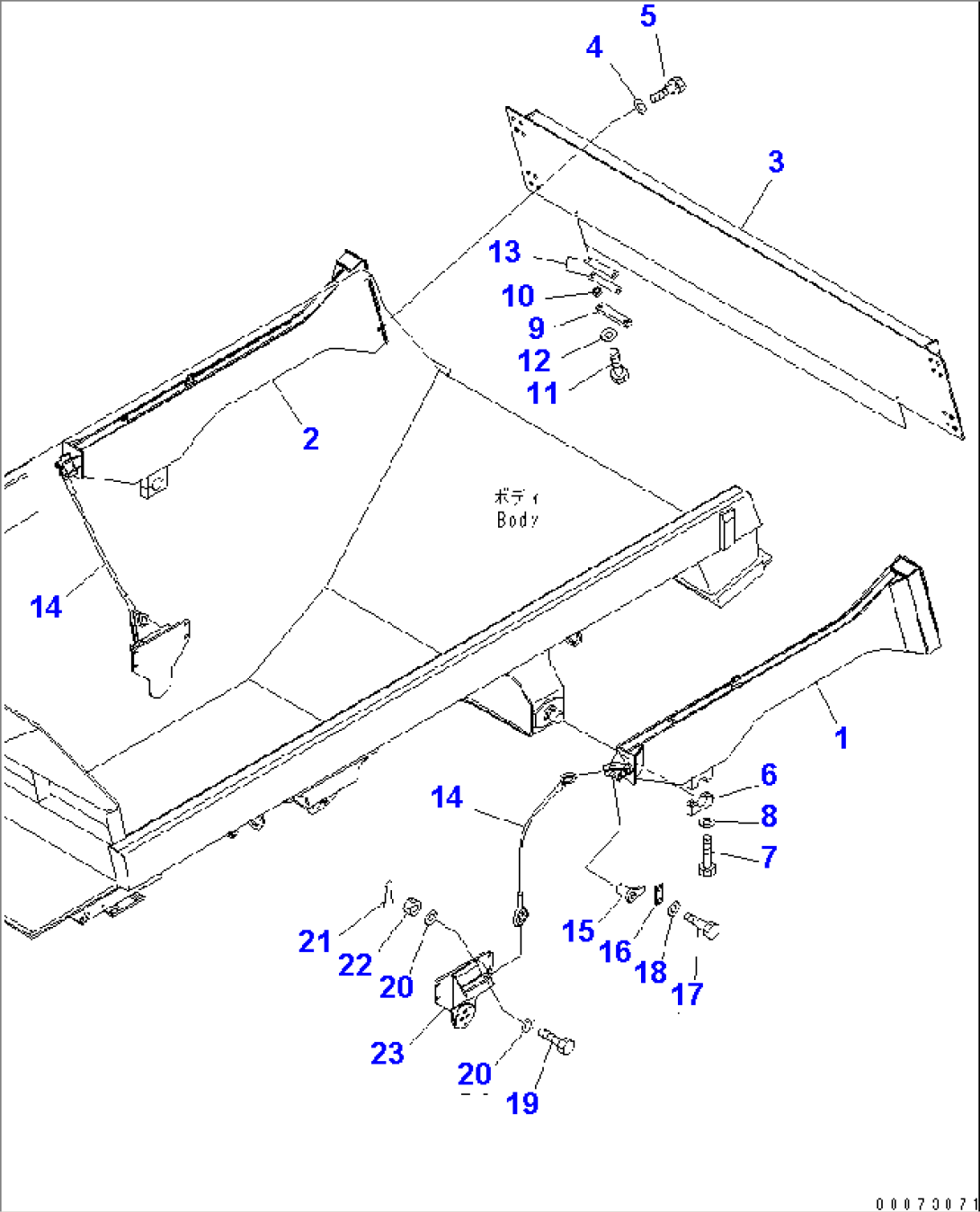

| Item | Part No. | Part Name | Qty | Serial No. |
| 56C-83-14200 | TAIL GATE ASS'Y,SUB | A10001- | ||
| 1 | 56C-83-14111 | GATE,L.H. | A10001- | |
| 2 | 56C-83-14121 | GATE,R.H. | A10001- | |
| 3 | 56C-83-14131 | GATE,REAR | A10001- | |
| 4 | 20Y-09-11150 | SPACER | A10001- | |
| 5 | 01010-82460 | BOLT | A10001- | |
| 6 | 287-70-13330 | CAP | A10001- | |
| 7 | 01011-82410 | BOLT | A10001- | |
| 8 | 01643-32460 | WASHER | A10001- | |
| 9 | 56B-83-14170 | CUSHION | A10001- | |
| 10 | 424-54-14230 | SPACER | A10001- | |
| 11 | 01010-81225 | BOLT | A10001- | |
| 12 | 01643-31232 | WASHER | A10001- | |
| 13 | 56B-83-14290 | SHIM | A10001- | |
| 14 | 56C-83-14160 | WIRE ASS'Y | A10001- | |
| 15 | 565-81-27820 | PIN | A10001- | |
| 16 | 281-70-15290 | PLATE | A10001- | |
| 17 | 01010-81430 | BOLT | A10001- | |
| 18 | 01643-31445 | WASHER | A10001- | |
| 19 | 01013-83615 | BOLT | A10001- | |
| 20 | 01643-33690 | WASHER | A10001- | |
| 21 | 04050-16065 | PIN,COTTER | A10001- | |
| 22 | 01590-33638 | NUT | A10001- | |
| 23 | BRACKET,(SEE FIG. S3300-03A1) | A10001- |
