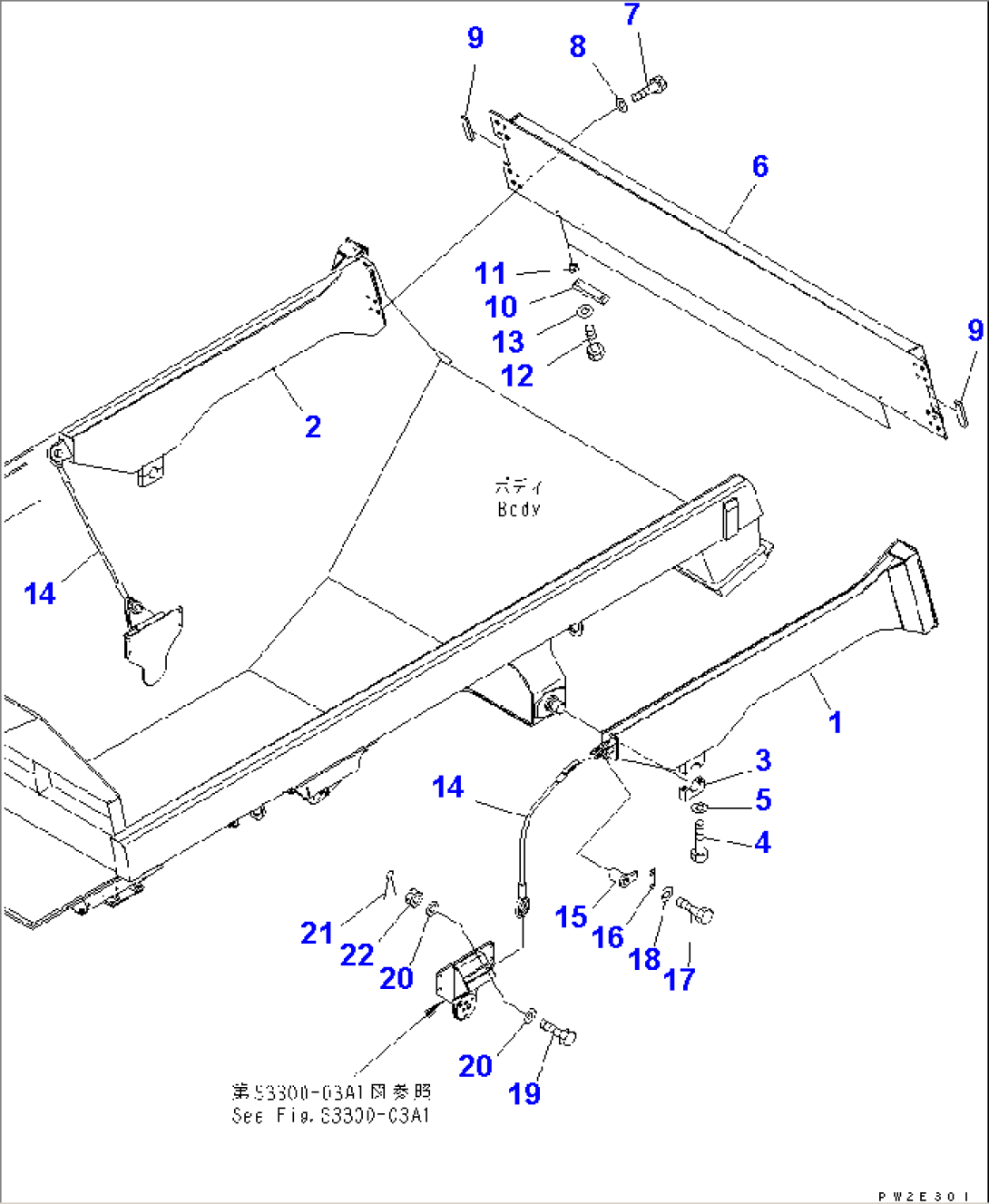

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-83-14110 | GATE,L.H. | 1001-1082 | |
| 2 | 56C-83-14120 | GATE,R.H. | 1001-1082 | |
| 3 | 287-70-13330 | CAP | 1001-@ | |
| 4 | 01011-82410 | BOLT | 1001-@ | |
| 5 | 01643-32460 | WASHER | 1001-@ | |
| 6 | 56C-83-14130 | GATE,REAR | 1001-1082 | |
| 7 | 01010-82460 | BOLT | 1001-@ | |
| 8 | 20Y-09-11150 | SPACER | 1001-@ | |
| 9 | 56B-83-14180 | PLATE | 1001-1082 | |
| 10 | 56B-83-14170 | CUSHION | 1001-@ | |
| 11 | 424-54-14230 | SPACER | 1001-1082 | |
| 12 | 01010-81225 | BOLT | 1001-1082 | |
| 13 | 01643-31232 | WASHER | 1001-1082 | |
| 14 | 56C-83-14160 | WIRE ASS'Y | 1001-@ | |
| 15 | 565-81-27820 | PIN | 1001-@ | |
| 16 | 281-70-15290 | PLATE | 1001-@ | |
| 17 | 01010-81430 | BOLT | 1001-@ | |
| 18 | 01643-31445 | WASHER | 1001-@ | |
| 19 | 01013-83615 | BOLT | 1001-@ | |
| 20 | 01643-33690 | WASHER | 1001-@ | |
| 21 | 04050-16065 | PIN,COTTER | 1001-@ | |
| 22 | 01590-33638 | NUT | 1001-@ |
