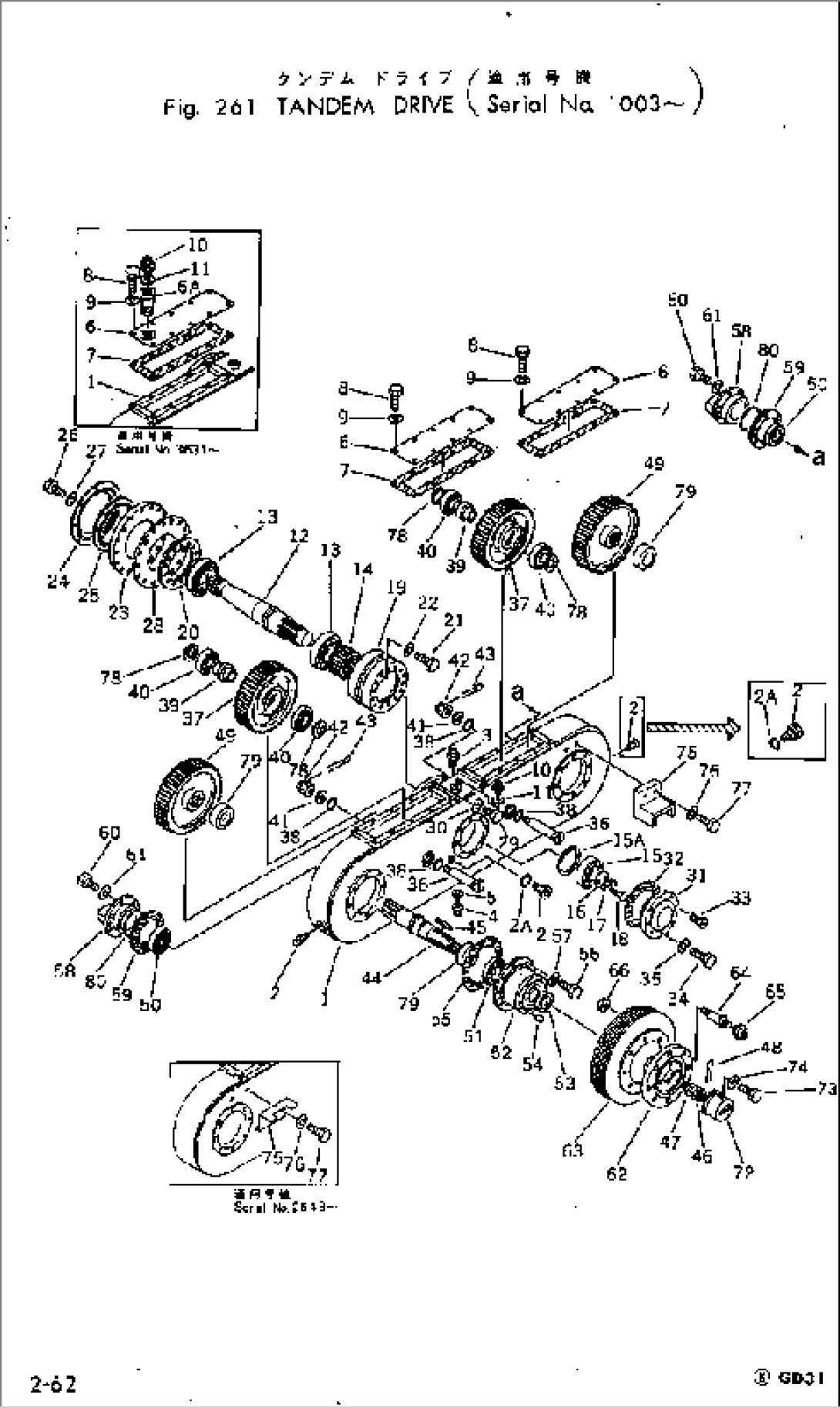

| Item | Part No. | Part Name | Qty | Serial No. |
| 233-23-00051 | TANDEM DRIVE ASS'Y | 1336-2299 | ||
| \0\233-23-00050 | TANDEM DRIVE ASS'Y | 1003-1335 | ||
| 233-23-00041 | TANDEM CASE ASS'Y | 1336-2299 | ||
| \0\233-23-00040 | TANDEM CASE ASS'Y | 1003-1335 | ||
| 1 | 233-23-11112 | CASE | 1336-2299 | |
| 233-23-11111 | CASE | 1003-1335 | ||
| 2 | 07042-00415 | PLUG | 1003-2647 | |
| 3 | 07020-00000 | FITTING | 1003-2299 | |
| 4 | 07044-03620 | PLUG | 1003-2299 | |
| 5 | 07002-12434 | O-RING (KIT) | 1336-2647 | |
| 07003-03642 | GASKET (KIT) | 1003-1335 | ||
| 6 | 233-23-11310 | COVER | 1003-3151 | |
| 7 | 233-23-11330 | GASKET (KIT) | 1003- | |
| 8 | 01000-31020 | BOLT | 1003-2299 | |
| 9 | 01602-21030 | WASHER | 1003- | |
| 10 | 232-23-11220 | BREATHER | .- | |
| \0\07030-03034 | BREATHER | 1003-. | ||
| 11 | 07003-03036 | GASKET (KIT) | 1003-2647 | |
| 12 | 232-23-12110 | SHAFT | 1003-2299 | |
| 13 | 06000-32220 | BEARING | 1003-2539 | |
| 14 | 232-23-12120 | GEAR | 1003-2647 | |
| 15 | 06004-00315 | BEARING | 1003-2647 | |
| 16 | 232-23-12130 | WASHER | 1003-4000 | |
| 17 | 232-23-12140 | LOCK | 1003-4000 | |
| 18 | 01000-31225 | BOLT | 1003-2299 | |
| 19 | 232-23-12150 | BUSHING | 1003- | |
| 20 | 232-23-05510 | SHIM ASS'Y | 1003- | |
| 232-23-12160 | SHIM¤ 0.5MM (KIT) | 1003- | ||
| 232-23-12170 | SHIM¤ 0.2MM (KIT) | 1003- | ||
| 232-23-12180 | SHIM¤ 0.1MM (KIT) | 1003- | ||
| 21 | 01000-31635 | BOLT | 1003-2299 | |
| 22 | 232-23-12190 | WASHER | 1003- | |
| 23 | 232-23-12210 | PLATE | 1003-2299 | |
| 24 | 232-23-12220 | RETAINER | 1003- | |
| 25 | 232-23-12230 | GASKET | 1003-2647 | |
| 26 | 01004-31016 | BOLT | 1103-2299 | |
| 26 | 01000-31016 | BOLT | 1003-1102 | |
| 27 | 04059-01032 | WIRE | 1103-2299 | |
| 27 | 01602-01030 | WASHER | 1003-1102 | |
| 28 | 232-23-12240 | SHIM¤ 0.2MM (KIT) | 1003- | |
| 29 | 01000-31645 | BOLT | 1003-2299 | |
| 30 | 01602-01648 | WASHER | 1003- | |
| 31 | 233-23-12250 | COVER | 1003-2299 | |
| 32 | 232-23-12260 | GASKET (KIT) | 1003-2647 | |
| 33 | 232-23-12270 | BOLT | 1003-2299 | |
| 34 | 01000-41435 | BOLT | 1003-2299 | |
| 35 | 01602-01442 | WASHER | 1003- | |
| 36 | 233-23-12310 | SHAFT | 1003-2299 | |
| 37 | 233-23-12320 | GEAR | 1003-2299 | |
| 38 | 07000-03038 | O-RING (KIT) | 1003- | |
| 39 | 233-23-12340 | SHAFT | 1003- | |
| 40 | 06000-06312 | BEARING | 1003- | |
| 41 | 01640-23345 | WASHER | 1003- | |
| 42 | 01511-33320 | NUT | 1003-2299 | |
| 43 | 04050-06055 | PIN | 1003- | |
| 44 | 233-23-12410 | AXLE | 1003-2299 | |
| 45 | 04000-02000 | KEY | 1003- | |
| 46 | 01510-34850 | NUT | 1003-2299 | |
| 47 | 01640-24860 | WASHER | 1003- | |
| 48 | 04050-08080 | PIN | 1003- | |
| 49 | 233-23-12430 | GEAR | 1003-2623 | |
| 50 | 06000-32212 | BEARING | 1003-2539 | |
| 51 | 06000-32216 | BEARING | 1003-2539 | |
| 233-23-00010 | CAGE ASS'Y | 1003-2299 | ||
| 52 | 233-23-12440 | CAGE | 1003-2299 | |
| 53 | 07011-00075 | SEAL (KIT) | 1003- | |
| 54 | 233-23-12670 | PIN | 2676- | |
| \0\04020-01434 | PIN | 1003-2675 | ||
| 55 | 233-23-12450 | GASKET (KIT) | 1003-2647 | |
| 56 | 01000-31435 | BOLT | 1003-2299 | |
| 57 | 01602-21442 | WASHER | 1003- | |
| 58 | 233-23-12460 | COVER | 1003-2299 | |
| 59 | 233-23-05050 | SHIM ASS'Y | 1003- | |
| 233-23-12470 | SHIM¤ 0.5MM (KIT) | 1003- | ||
| 233-23-12480 | SHIM¤ 0.2MM (KIT) | 1003- | ||
| 233-23-12490 | SHIM¤ 0.1MM (KIT) | 1003- | ||
| 60 | 01000-31435 | BOLT | 1003-2299 | |
| 61 | 01602-21442 | WASHER | 1003- | |
| 233-23-00020 | WHEEL HUB ASS'Y,L.H. | 1003-2299 | ||
| 233-23-00030 | WHEEL HUB ASS'Y,R.H. | 1003-2299 | ||
| 62 | 233-23-13110 | HUB | 1003-2299 | |
| 63 | 233-23-13120 | DRUM | 1003-3151 | |
| 64 | 233-23-13130 | BOLT,L.H. | 1003-2299 | |
| 233-23-13140 | BOLT,R.H. | 1003-2299 | ||
| 65 | 233-23-13150 | NUT,L.H. | 1003-2299 | |
| 233-23-13160 | NUT,R.H. | 1003-2299 | ||
| 66 | 01500-42016 | NUT | 1003-2299 | |
| 72 | 233-23-13170 | COVER | 1003-3151 | |
| 73 | 01000-31025 | BOLT | 1003-2299 | |
| 74 | 01602-01030 | WASHER | 1003-3151 |
