| Item | Part No. | Part Name | Qty | Serial No. |
| 262-23-00010 | TANDEM DRIVE ASS'Y,L.H. | 12001- | ||
| 262-23-00020 | TANDEM DRIVE ASS'Y,R.H. | 12001- | ||

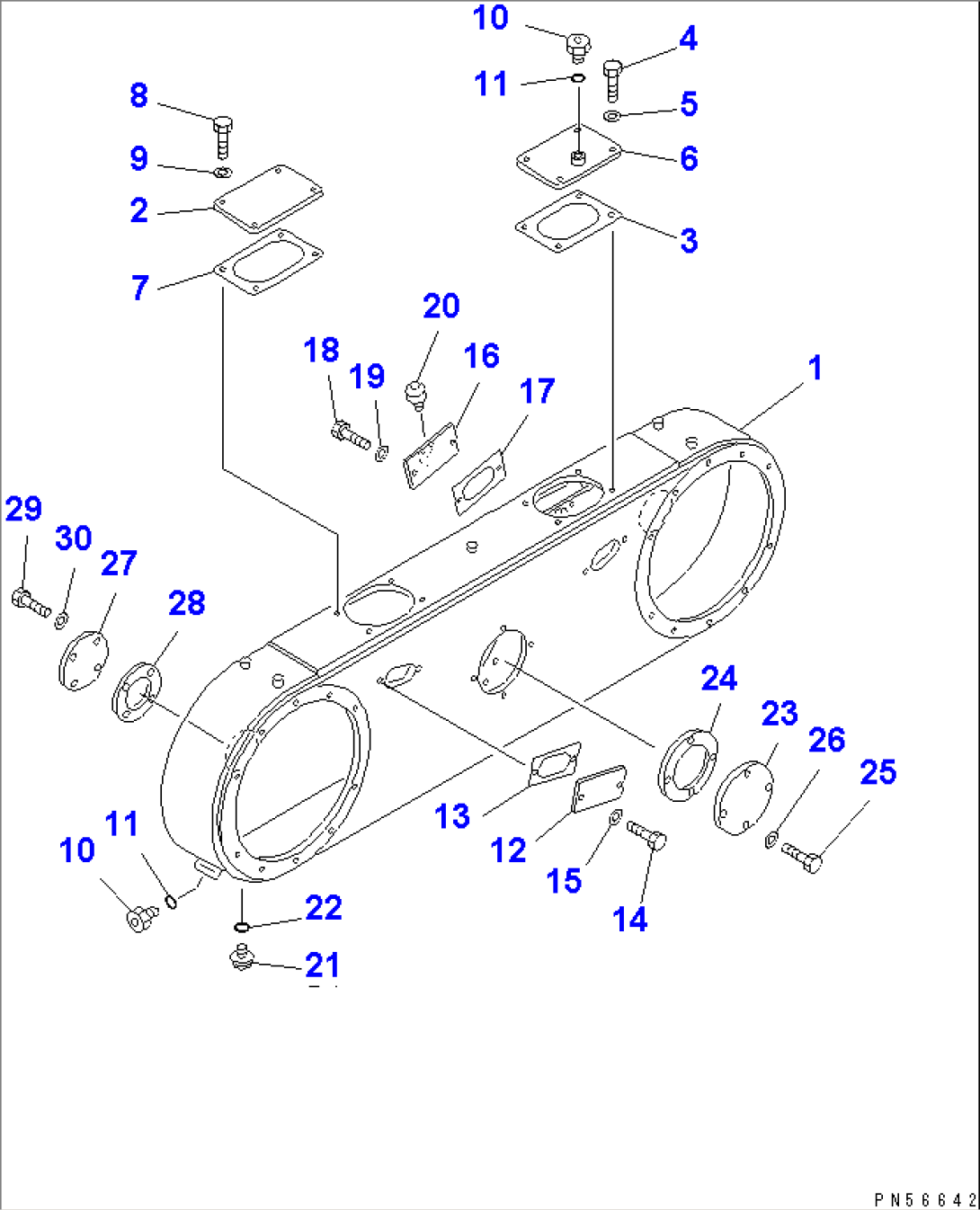

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2651 AND 2653. | ||||
| 1 | 23B-23-21110 | CASE | 12001- | |
| 2 | 23A-23-11341 | COVER | 12001- | |
| 3 | 238-23-16132 | GASKET (K4) | 12001- | |
| 4 | 01010-51230 | BOLT | 12001- | |
| 5 | 01643-31232 | WASHER | 12001- | |
| 6 | 23A-23-11161 | COVER | 12001- | |
| 7 | 238-23-16132 | GASKET (K4) | 12001- | |
| 8 | 01010-51230 | BOLT | 12001- | |
| 9 | 01643-31232 | WASHER | 12001- | |
| 10 | 07040-12414 | PLUG | 12001- | |
| 11 | 07002-12434 | O-RING (K4) | 12001- | |
| 12 | 238-23-11130 | COVER | 12001- | |
| 13 | 238-23-11121 | GASKET (K4) | 12001- | |
| 14 | 01010-51230 | BOLT | 12001- | |
| 15 | 01643-31232 | WASHER | 12001- | |
| 16 | 238-23-11140 | COVER | 12001- | |
| 17 | 238-23-11121 | GASKET (K4) | 12001- | |
| 18 | 01010-51230 | BOLT | 12001- | |
| 19 | 01643-31232 | WASHER | 12001- | |
| 20 | 07030-10252 | BREATHER | 12001- | |
| 21 | 07044-12412 | PLUG | 12001- | |
| 22 | 07002-12434 | O-RING (K4) | 12001- | |
| 23 | 23A-23-11120 | COVER | 12001- | |
| 24 | 238-23-16111 | GASKET (K4) | 12001- | |
| 25 | 01010-51240 | BOLT | 12001- | |
| 26 | 01643-31232 | WASHER | 12001- | |
| 27 | 23A-23-11140 | COVER | 12001- | |
| 28 | 238-23-16121 | GASKET (K4) | 12001- | |
| 29 | 01010-51240 | BOLT | 12001- | |
| 30 | 01643-31232 | WASHER | 12001- |
