| Item | Part No. | Part Name | Qty | Serial No. |
| (235-22-60102) | AXLE ASS'Y | 12624- | ||
| (235-22-60101) | AXLE ASS'Y | 12516-12623 | ||
| (235-22-60100) | AXLE ASS'Y | 12503-12515 | ||
| THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2581A TO 2661. | ||||

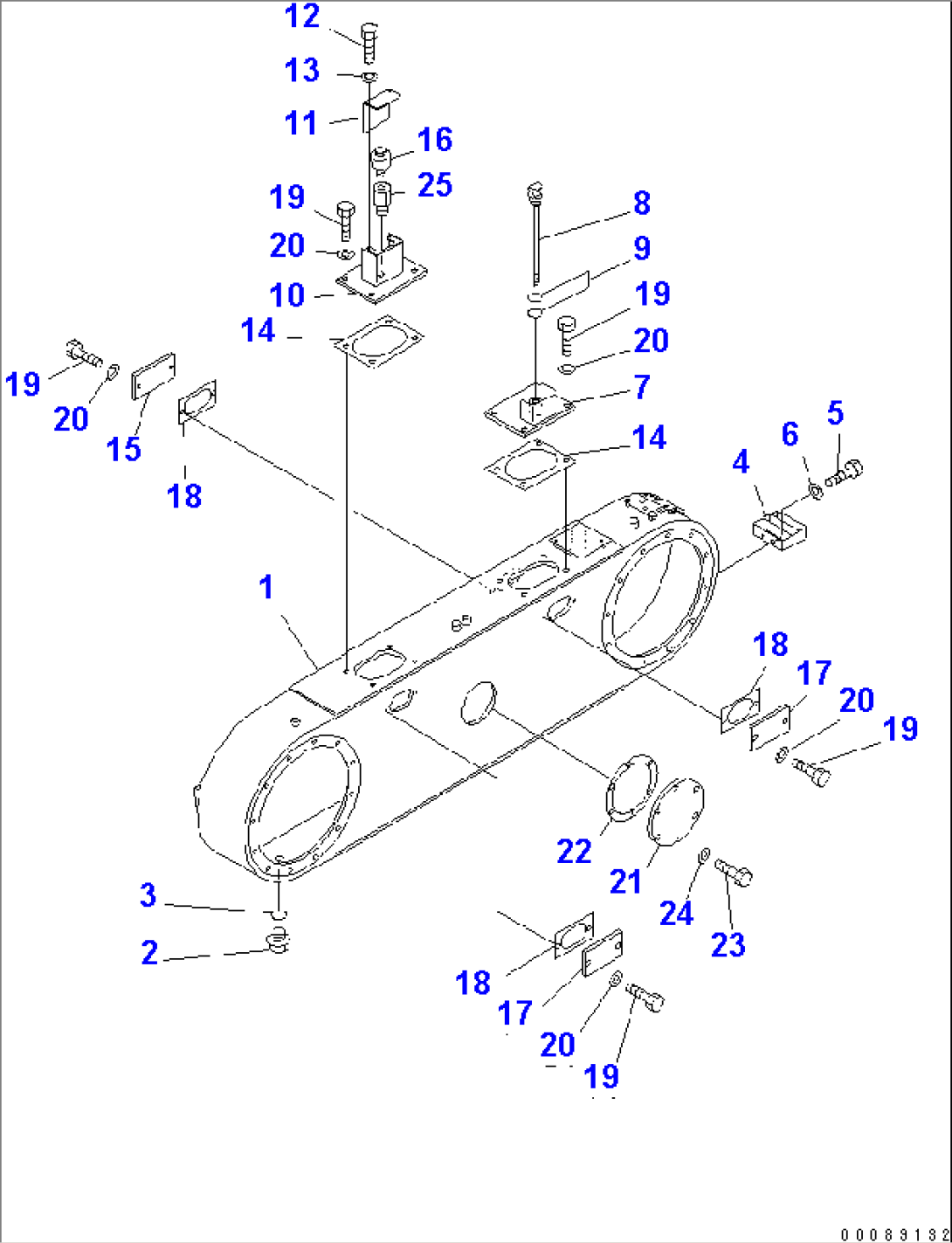

| 235-25-61001 | TANDEM DRIVE ASS'Y | 12503- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2651A TO 2659. | ||||
| 1 | 235-25-11551 | CASE,L.H. | 11001- | |
| 1 | 235-25-11570 | CASE,R.H. | 11001- | |
| 2 | 07044-12412 | PLUG | 11001- | |
| 3 | 07002-12434 | O-RING | 11001- | |
| 4 | 235-25-31150 | STEP | 11014- | |
| 5 | 01010-81225 | BOLT | 11001- | |
| 6 | 01643-31232 | WASHER | 11001- | |
| 7 | 235-25-31130 | COVER | 11001- | |
| 8 | 235-25-11510 | GAUGE | 11001- | |
| 9 | 07002-12434 | O-RING | 11001- | |
| 10 | 235-25-45150 | COVER | 12503- | |
| 11 | 235-25-45160 | COVER | 12503- | |
| 12 | 01010-60820 | BOLT | 12503- | |
| 13 | 01643-30823 | WASHER | 12503- | |
| 14 | 235-25-11141 | GASKET | 11001- | |
| 15 | 234-25-31150 | COVER | 12022- | |
| 16 | 07030-00252 | BREATHER | 12022- | |
| 17 | 234-25-31150 | COVER | 11001- | |
| 18 | 235-25-11160 | GASKET | 11001- | |
| 19 | 01010-81230 | BOLT | 11001- | |
| 20 | 01643-31232 | WASHER | 11001- | |
| 21 | 235-25-11180 | COVER | 11001- | |
| 22 | 235-25-11191 | GASKET | 11001- | |
| 23 | 01010-81235 | BOLT | 11001- | |
| 24 | 01643-31232 | WASHER | 11001- | |
| 25 | 170-21-11190 | NIPPLE | 12022- |
