| Item | Part No. | Part Name | Qty | Serial No. |
| (23E-23-00030) | TANDEM DRIVE ASS'Y,L.H. | 7001- | ||
| (23E-23-00040) | TANDEM DRIVE ASS'Y,R.H. | 7001- | ||

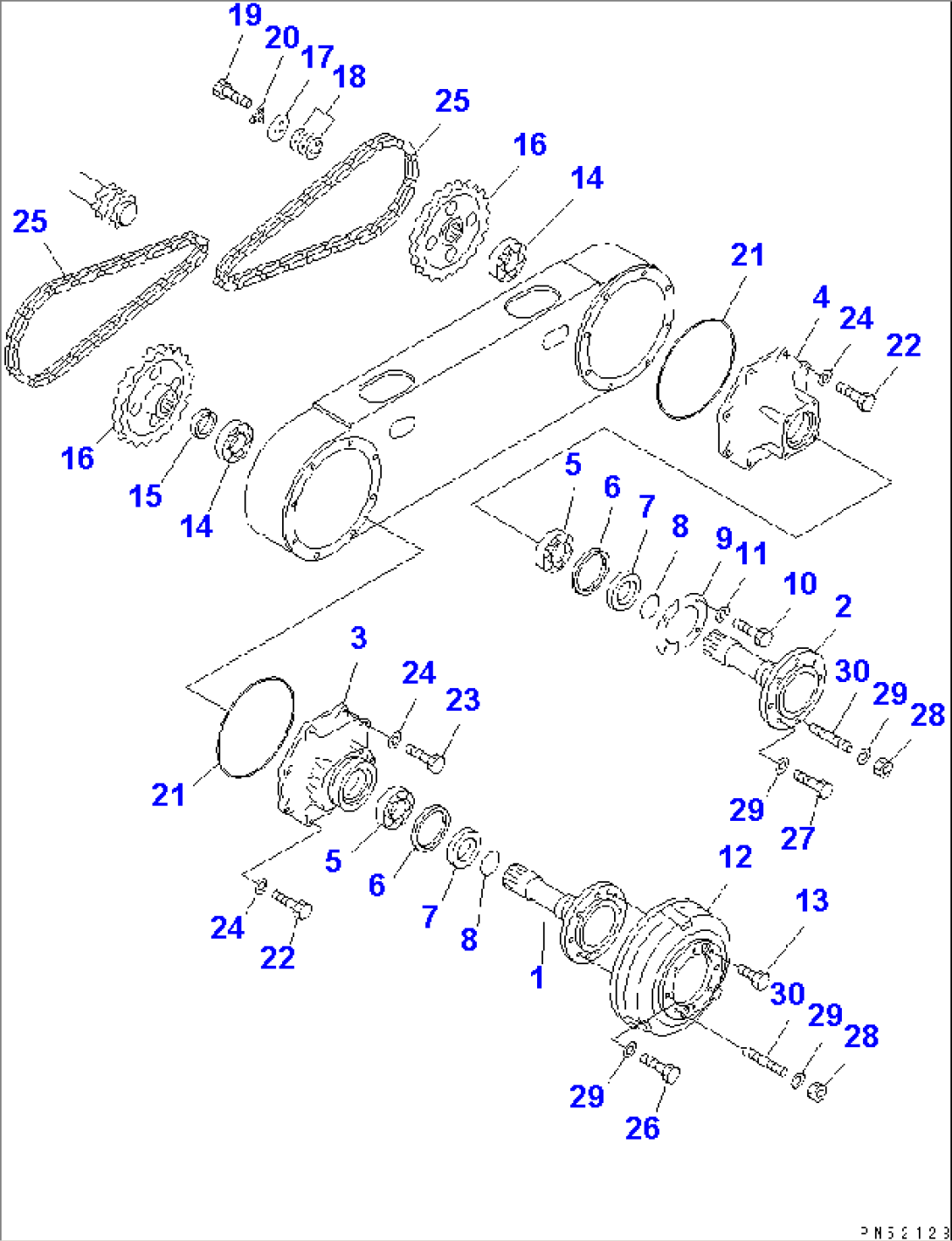

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2651 AND 2653. | ||||
| 1 | 23D-23-11232 | SHAFT | 7001- | |
| 2 | 23D-23-11342 | SHAFT | 7001- | |
| 3 | 23D-23-11220 | CAGE,FRONT | 7001- | |
| 4 | 23D-23-11410 | CAGE,REAR | 7001- | |
| 5 | 06002-32215 | BEARING | 7001- | |
| 6 | 07012-00130 | SEAL,OIL (KIT) | 7001- | |
| 7 | 23D-23-11250 | SPACER | 7001- | |
| 8 | 23D-23-11260 | O-RING (KIT) | 7001- | |
| 9 | 23D-23-11420 | COVER | 7001- | |
| 10 | 01010-81020 | BOLT | 7001- | |
| 11 | 01643-31232 | WASHER | 7001- | |
| 12 | 23D-23-11243 | DRUM | .- | |
| \0\23D-23-11242 | DRUM | 7001-. | ||
| 13 | 01010-81220 | BOLT | 7001- | |
| 14 | 06002-32215 | BEARING | 7001- | |
| 15 | 23D-23-11270 | SPACER | 7001- | |
| 16 | 23D-23-11330 | SPROCKET | 7001- | |
| 17 | 238-22-11371 | HOLDER | 7001- | |
| 18 | 23D-23-00030 | SHIM KIT | 7001- | |
| \6\ | SHIM¤ 0.1MM | 7001- | ||
| \6\ | SHIM¤ 0.2MM | 7001- | ||
| \6\ | SHIM¤ 0.5MM | 7001- | ||
| 19 | 01010-81245 | BOLT | 7001- | |
| 20 | 232-23-12141 | LOCK (KIT) | 7001- | |
| 21 | 07000-15350 | O-RING (KIT) | 7001- | |
| 22 | 01010-81440 | BOLT | 7001- | |
| 23 | 01010-81440 | BOLT | 7001- | |
| 24 | 01643-31445 | WASHER | 7001- | |
| 25 | 23D-23-11500 | CHAIN ASS'Y | 7001- | |
| 23D-23-11510 | PIN,SPRING | 7001- | ||
| 23D-23-11520 | PIN | 7001- | ||
| 23D-23-11530 | PLATE,SIDE | 7001- | ||
| 23D-23-11540 | PLATE,INTERMEDIATE | 7001- | ||
| 26 | 01010-82255 | BOLT | 7001- | |
| 27 | 01010-82240 | BOLT | 7001- | |
| 28 | 01580-12218 | NUT | 7001- | |
| 29 | 01643-32260 | WASHER | 7001- | |
| 30 | 01124-82255 | STUD | 7001- | |
| SERVICE KIT | ||||
| KIT | 23E-23-05012 | SERVICE KIT,TANDEM DRIVE | 7001- |
