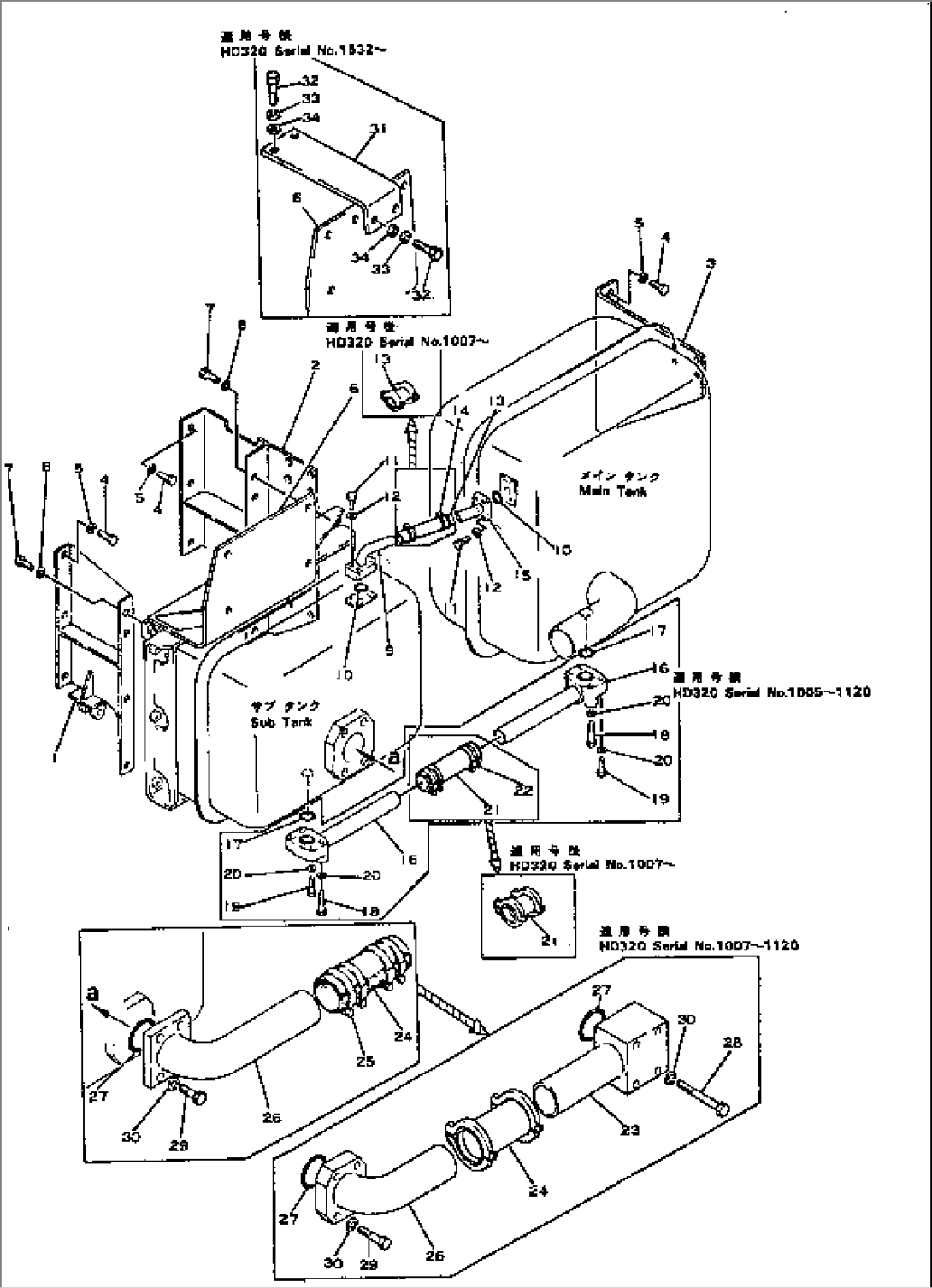

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-60-18131 | BRACKET | 1005-@ | |
| 2 | 566-60-18121 | BRACKET | 1005-@ | |
| 3 | 566-60-18111 | BRACKET | 1005-@ | |
| 4 | 01010-51430 | BOLT | 1005-@ | |
| 5 | 01602-21442 | WASHER | 1005-@ | |
| 6 | 566-60-18142 | BRACKET | 1005-@ | |
| 7 | 01010-51435 | BOLT | 1005-@ | |
| 8 | 01602-21442 | WASHER | 1005-@ | |
| 9 | 566-60-16311 | TUBE | 1007-@ | |
| 9 | 566-60-16310 | TUBE | 1005-1006 | |
| 10 | 07000-13022 | O-RING | 2001-@ | |
| 10 | \0\07000-23022 | O-RING | 1005-2000 | |
| 11 | 01010-50830 | BOLT | 1005-@ | |
| 12 | 01602-20825 | WASHER | 1005-@ | |
| 13 | 07332-00400 | COUPLING ASS'Y | 1121-@ | |
| 13 | \0\141-60-33441 | COUPLING | 1007-1120 | |
| 13 | 07260-02013 | HOSE | 1005-1006 | |
| 14 | 07280-03423 | CLAMP | 1005-1006 | |
| 15 | 566-60-15420 | TUBE | 1005-1120 | |
| 16 | 07378-01250 | PLATE | 1121-1409 | |
| 16 | 566-60-15410 | TUBE | 1005-1120 | |
| 17 | 07000-23038 | O-RING | 1121-1409 | |
| 17 | 07000-23035 | O-RING | 1005-1120 | |
| 18 | 07372-21030 | BOLT | 1121-1409 | |
| 18 | 01010-31055 | BOLT | 1005-1120 | |
| 19 | 01010-31040 | BOLT | 1005-1120 | |
| 20 | 01602-21030 | WASHER | 1005-1120 | |
| 21 | 07332-01000 | COUPLING ASS'Y | 1121-1409 | |
| 21 | \0\6162-62-6180 | COUPLING | 1007-1120 | |
| 21 | 07260-03216 | HOSE | 1005-1006 | |
| 22 | 281-09-11520 | CLAMP | 1005-1006 | |
| 23 | 566-60-18241 | TUBE | 1121-2000 | |
| 23 | 566-60-18240 | TUBE | 1007-1120 | |
| 24 | 07332-02400 | COUPLING | 1122-2000 | |
| 24 | \0\175-03-34160 | JOINT | 1007-1121 | |
| 24 | 07260-07422 | HOSE | 1005-1006 | |
| 25 | 568-61-11190 | CLAMP | 1005-1006 | |
| 566-60-18251 | TUBE | 1121-2000 | ||
| 26 | 566-60-18250 | TUBE | 1007-1120 | |
| 26 | 566-60-18260 | TUBE | 1005-1006 | |
| 27 | 07000-22085 | O-RING | 1005-2000 | |
| 28 | 01010-51640 | BOLT | 1121-2000 | |
| 28 | 01011-31615 | BOLT | 1007-1120 | |
| 29 | 07372-01660 | BOLT | 1007-1120 | |
| 29 | 07372-01650 | BOLT | 1005-1006 | |
| 30 | 01602-21648 | WASHER | 1007-2000 | |
| 30 | 01602-21648 | WASHER | 1005-1006 | |
| 31 | 569-60-16150 | BRACKET | 1532-2000 | |
| 32 | 01010-51235 | BOLT | 1532-2000 | |
| 33 | 01602-21236 | WASHER | 1532-2000 | |
| 34 | 01643-31232 | WASHER | 1532-2000 |
