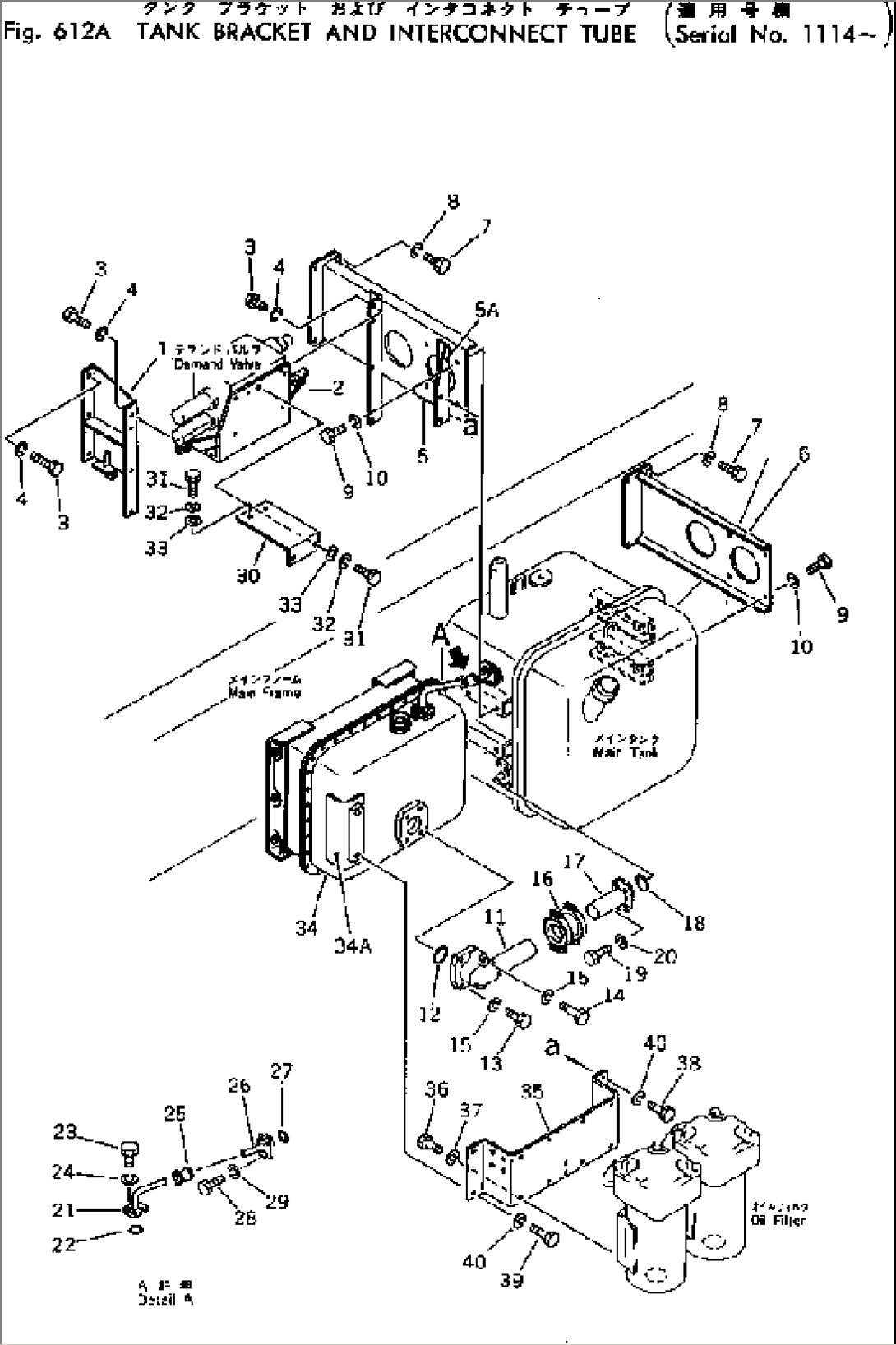

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-60-18131 | BRACKET | 1002- | |
| 2 | 566-60-18142 | BRACKET | 1002- | |
| 3 | 01010-51435 | BOLT | 1002- | |
| 4 | 01602-21442 | WASHER | 1002- | |
| 5 | (569-99-92330) | BRACKET | 1114- | |
| 5A | (569-61-18230) | BRACKET | 1114- | |
| 6 | 569-60-16110 | BRACKET | 1002- | |
| 7 | 01010-51435 | BOLT | 1002- | |
| 8 | 01602-21442 | WASHER | 1002- | |
| 9 | 01010-51430 | BOLT | 1002- | |
| 10 | 01602-21442 | WASHER | 1002- | |
| 11 | 566-60-18242 | TUBE | 1069- | |
| 12 | 07000-13045 | O-RING | 1069- | |
| 13 | 01010-51260 | BOLT | 1069- | |
| 14 | 01010-51270 | BOLT | 1069- | |
| 15 | 01602-21236 | WASHER | 1069- | |
| 16 | 07332-01200 | COUPLING | 1069- | |
| 16 | 07332-51200 | GASKET | 1069- | |
| 16 | 07332-61200 | CLAMP | 1069- | |
| 17 | 569-60-16141 | TUBE | 1069- | |
| 18 | 07000-13048 | O-RING | 1069- | |
| 19 | 01010-51040 | BOLT | 1069- | |
| 20 | 01602-21030 | WASHER | 1002- | |
| 21 | 566-60-16311 | TUBE | 1002- | |
| 22 | 07000-13022 | O-RING | 1002- | |
| 23 | 01010-50830 | BOLT | 1002- | |
| 24 | 01602-20825 | WASHER | 1002- | |
| 25 | 07332-00400 | COUPLING ASS'Y | 1002- | |
| 25 | 07332-50400 | GASKET | 1002- | |
| 25 | 07332-60400 | CLAMP | 1002- | |
| 26 | 566-60-15420 | TUBE | 1002- | |
| 27 | 07000-13022 | O-RING | 1002- | |
| 28 | 01010-50830 | BOLT | 1002- | |
| 29 | 01602-20825 | WASHER | 1002- | |
| 30 | 569-60-16150 | BRACKET | 1002- | |
| 31 | 01010-51235 | BOLT | 1002- | |
| 32 | 01602-21236 | WASHER | 1002- | |
| 33 | 01643-31232 | WASHER | 1002- | |
| 34 | (569-99-92320) | TANK | 1114- | |
| 34A | (569-61-18220) | BRACKET | 1114- | |
| 35 | (569-61-18211) | BRACKET | 1114- | |
| 36 | (01010-51230) | BOLT | 1114- | |
| 37 | (01602-21236) | WASHER | 1114- | |
| 38 | (01010-51435) | BOLT | 1114- | |
| 39 | (01010-51430) | BOLT | 1114- | |
| 40 | (01602-21442) | WASHER | 1114- |
