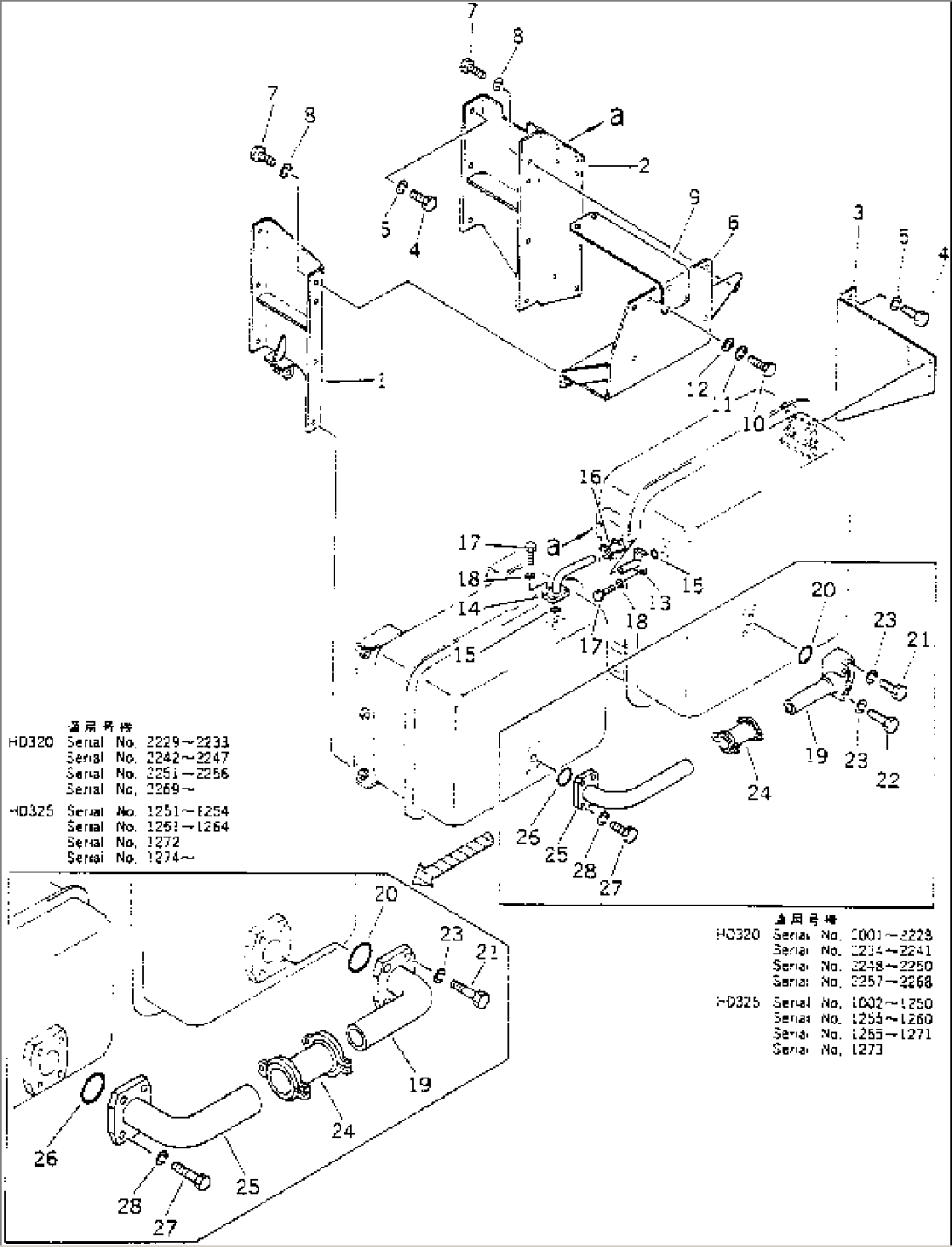

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-60-18131 | BRACKET | 1005- | |
| 2 | 566-60-18121 | BRACKET | 1005- | |
| 3 | 566-60-18111 | BRACKET | 1005- | |
| 4 | 01010-51430 | BOLT | 1005- | |
| 5 | 01602-21442 | WASHER | 1005- | |
| 6 | 566-60-18142 | BRACKET | 1005- | |
| 7 | 01010-51435 | BOLT | 1005- | |
| 8 | 01602-21442 | WASHER | 1005- | |
| 9 | 569-60-16150 | BRACKET | 1532- | |
| 10 | 01010-51235 | BOLT | 1532- | |
| 11 | 01602-21236 | WASHER | 1432- | |
| 12 | 01643-31232 | WASHER | 1532- | |
| 13 | 566-60-15420 | TUBE | 1005- | |
| 14 | 566-60-16311 | TUBE | 1007- | |
| 15 | 07000-13022 | O-RING | 2001- | |
| 16 | 07332-00400 | COUPLING ASS'Y | 1121- | |
| 17 | 01010-50830 | BOLT | 1005- | |
| 18 | 01602-20825 | WASHER | 1005- | |
| 19 | 560-60-18241 | TUBE | 2269- | |
| 19 | 566-60-18242 | TUBE | 2257-2268 | |
| 19 | 560-60-18241 | TUBE | 2251-2256 | |
| 19 | 566-60-18242 | TUBE | 2248-2250 | |
| 19 | 560-60-18241 | TUBE | 2242-2247 | |
| 19 | 566-60-18242 | TUBE | 2234-2241 | |
| 19 | 560-60-18241 | TUBE | 2229-2233 | |
| 19 | 566-60-18242 | TUBE | 2001-2228 | |
| 19 | 07000-12085 | O-RING | 2269- | |
| 19 | 07000-13045 | O-RING | 2257-2268 | |
| 19 | 07000-12085 | O-RING | 2251-2256 | |
| 19 | 07000-13045 | O-RING | 2248-2250 | |
| 19 | 07000-12085 | O-RING | 2242-2247 | |
| 19 | 07000-13045 | O-RING | 2234-2241 | |
| 19 | 07000-12085 | O-RING | 2229-2233 | |
| 19 | 07000-13045 | O-RING | 2001-2228 | |
| 21 | 01010-51640 | BOLT | 2269- | |
| 21 | 01010-51260 | BOLT | 2257-2268 | |
| 21 | 01010-51640 | BOLT | 2251-2256 | |
| 21 | 01010-51260 | BOLT | 2248-2250 | |
| 21 | 01010-51640 | BOLT | 2242-2247 | |
| 21 | 01010-51260 | BOLT | 2234-2241 | |
| 21 | 01010-51640 | BOLT | 2229-2233 | |
| 21 | 01010-51260 | BOLT | 2001-2228 | |
| 22 | 01010-51270 | BOLT | 2257-2268 | |
| 22 | 01010-51270 | BOLT | 2248-2250 | |
| 22 | 01010-51270 | BOLT | 2234-2241 | |
| 22 | 01010-51270 | BOLT | 2001-2228 | |
| 23 | 01602-21648 | WASHER | 2269- | |
| 23 | 01602-21236 | WASHER | 2257-2268 | |
| 23 | 01602-21648 | WASHER | 2251-2256 | |
| 23 | 01602-21236 | WASHER | 2248-2250 | |
| 23 | 01602-21648 | WASHER | 2242-2247 | |
| 23 | 01602-21236 | WASHER | 2234-2241 | |
| 23 | 01602-21648 | WASHER | 2229-2233 | |
| 23 | 01602-21236 | WASHER | 2001-2228 | |
| 24 | 07332-02400 | COUPLING | 2269- | |
| 24 | 07332-01200 | COUPLING | 2257-2268 | |
| 24 | 07332-02400 | COUPLING | 2251-2256 | |
| 24 | 07332-01200 | COUPLING | 2248-2250 | |
| 24 | 07332-02400 | COUPLING | 2242-2247 | |
| 24 | 07332-01200 | COUPLING | 2234-2241 | |
| 24 | 07332-02400 | COUPLING | 2229-2233 | |
| 24 | 07332-01200 | COUPLING | 2001-2228 | |
| 25 | 566-60-18251 | TUBE | 2269- | |
| 25 | 566-60-18252 | TUBE | 2257-2268 | |
| 25 | 566-60-18251 | TUBE | 2251-2256 | |
| 25 | 566-60-18252 | TUBE | 2248-2250 | |
| 25 | 566-60-18251 | TUBE | 2242-2247 | |
| 25 | 566-60-18252 | TUBE | 2234-2241 | |
| 25 | 566-60-18251 | TUBE | 2229-2233 | |
| 25 | 566-60-18252 | TUBE | 2001-2228 | |
| 26 | 07000-13085 | O-RING | 2269- | |
| 26 | 07000-13048 | O-RING | 2257-2268 | |
| 26 | 07000-13085 | O-RING | 2251-2256 | |
| 26 | 07000-13048 | O-RING | 2248-2250 | |
| 26 | 07000-13085 | O-RING | 2242-2247 | |
| 26 | 07000-13048 | O-RING | 2234-2241 | |
| 26 | 07000-13085 | O-RING | 2229-2233 | |
| 26 | 07000-13048 | O-RING | 2001-2228 | |
| 27 | 01010-51640 | BOLT | 2269- | |
| 27 | 01010-51240 | BOLT | 2257-2268 | |
| 27 | 01010-51640 | BOLT | 2251-2256 | |
| 27 | 01010-51240 | BOLT | 2248-2250 | |
| 27 | 01010-51640 | BOLT | 2242-2247 | |
| 27 | 01010-51240 | BOLT | 2234-2241 | |
| 27 | 01010-51640 | BOLT | 2229-2233 | |
| 27 | 01010-51240 | BOLT | 2001-2228 | |
| 28 | 01602-21648 | WASHER | 2269- | |
| 28 | 01602-21236 | WASHER | 2257-2268 | |
| 28 | 01602-21648 | WASHER | 2251-2256 | |
| 28 | 01602-21236 | WASHER | 2248-2250 | |
| 28 | 01602-21648 | WASHER | 2242-2247 | |
| 28 | 01602-21236 | WASHER | 2234-2241 | |
| 28 | 01602-21648 | WASHER | 2229-2233 | |
| 28 | 01602-21236 | WASHER | 2001-2228 |
