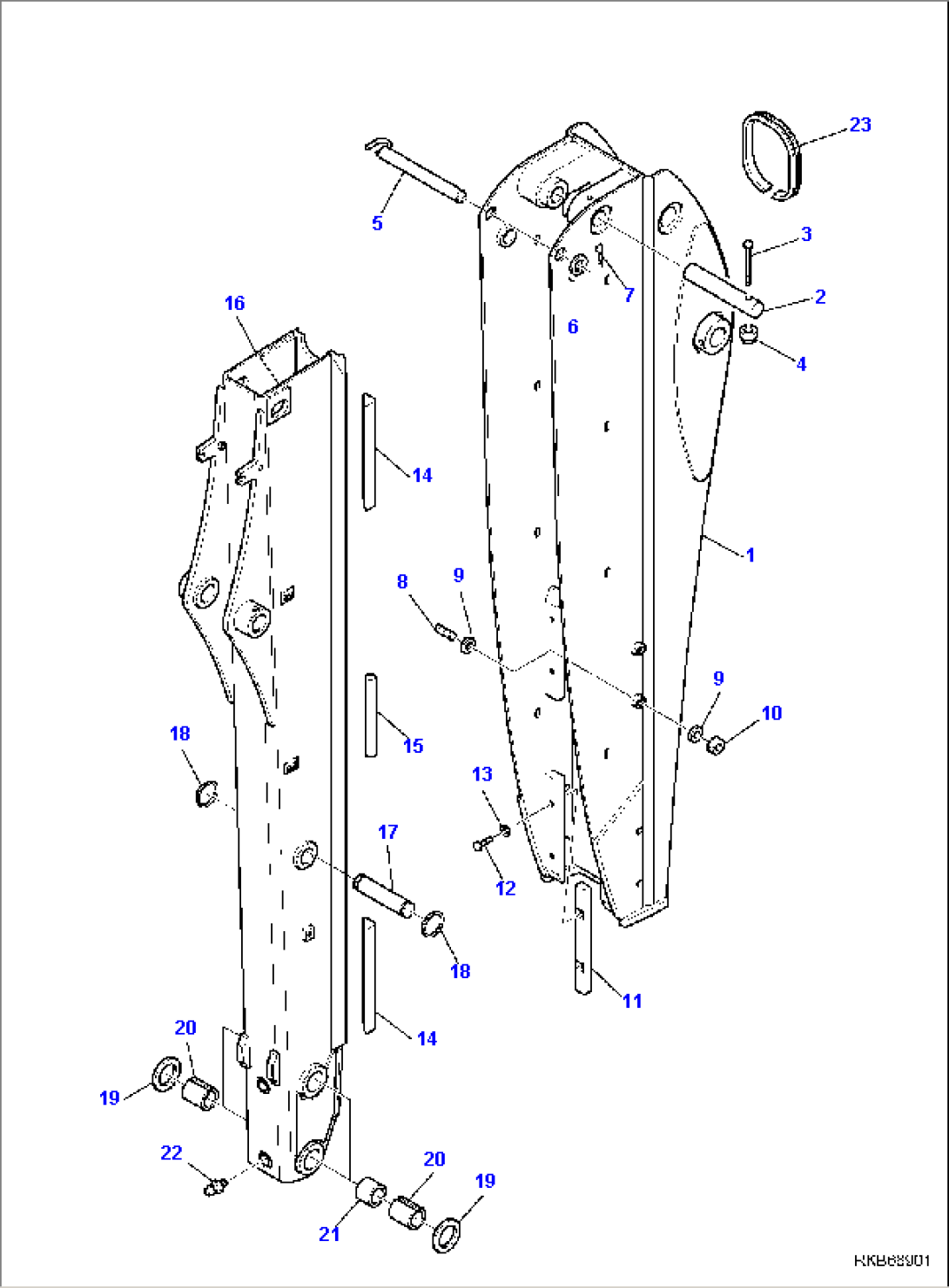

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-1611 | JIG ARM - FIXED PART ASSEMBLY | F61569-F61854 | |
| 1 | 42N-856-1612 | JIG ARM - FIXED PART ASSEMBLY | F61855- | |
| 2 | 37B-09-46039 | PIN | F61569- | |
| 3 | 01011-81010 | BOLT | F61569- | |
| 4 | 21D-09-24190 | NUT | F61569- | |
| 5 | 42N-856-3320 | PIN | F61569- | |
| 6 | 21D-09-72510 | WASHER | F61569- | |
| 7 | 21D-09-85530 | PIN, SNAP | F61569- | |
| 8 | 42N-856-3330 | SCREW | F61569- | |
| 9 | 01640-21826 | WASHER | F61569- | |
| 10 | 01580-11815 | NUT | F61569- | |
| 11 | 42N-856-2840 | SHOE | F61569- | |
| 12 | 01016-51040 | BOLT | F61569- | |
| 13 | 01643-31032 | WASHER | F61569- | |
| 14 | 42N-856-1520 | SLIDE | F61569- | |
| 15 | 42N-856-2830 | SPACER | F61569- | |
| 16 | 42N-856-4910 | MOVABLE ARM | F61569- | |
| 17 | 42N-856-1710 | PIN | F61569- | |
| 18 | 04064-04018 | SNAP, RING | F61569- | |
| 19 | 37B-09-4F024 | SHIM, 4.750 MM | F61569- | |
| 20 | 37B-09-54006 | BUSHING | F61569- | |
| 21 | 37B-09-4C064 | SPACER | F61569- | |
| 22 | 21D-09-89140 | FITTING, GREASE | F61569- | |
| 23 | 42N-856-3860 | SEAL | F61569- |
