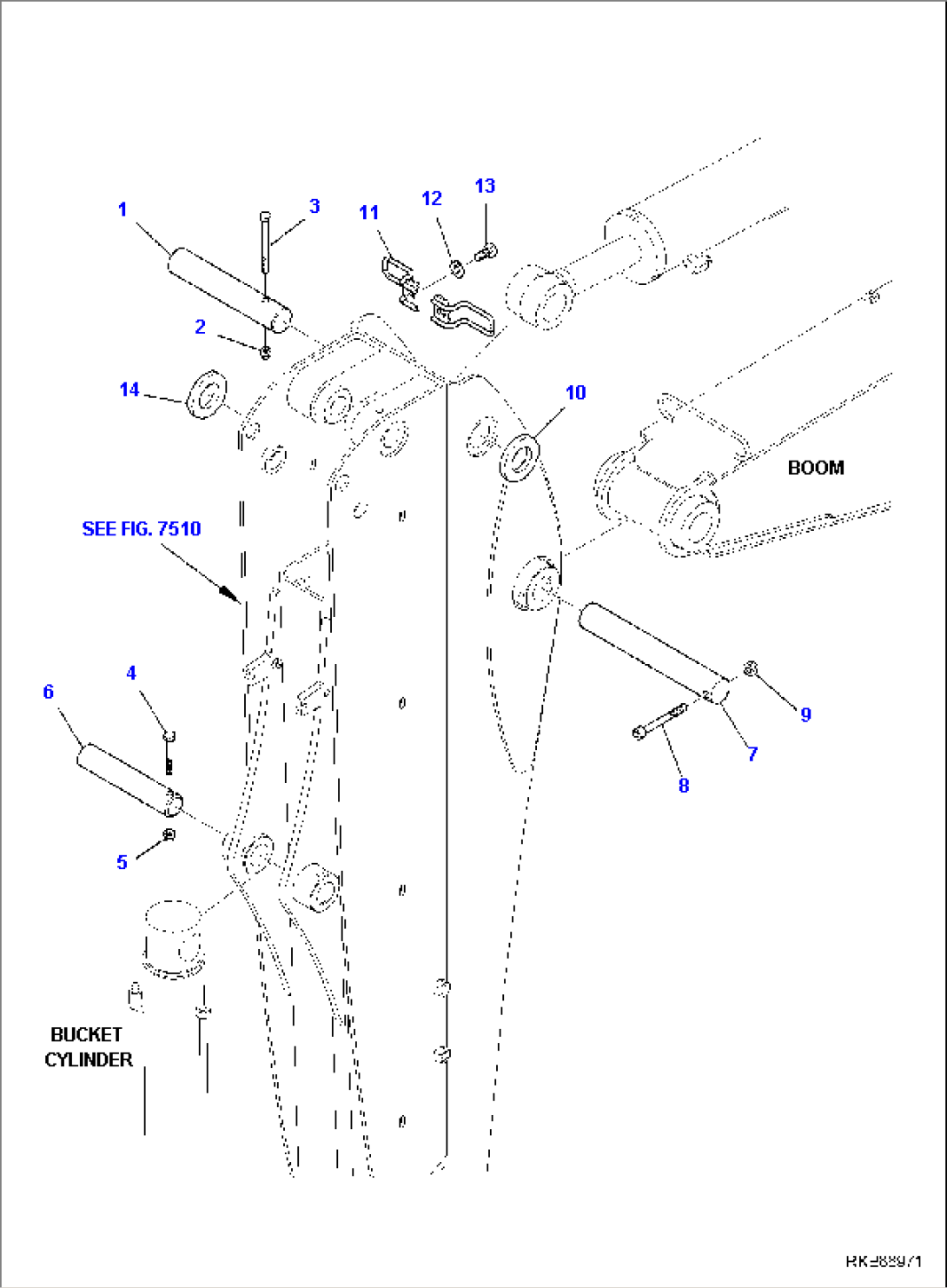

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-856-1410 | PIN | F80211- | |
| 2 | 21D-09-24190 | NUT | F80211- | |
| 3 | 01011-81020 | BOLT | F80211- | |
| 4 | 01010-81090 | BOLT | F80211- | |
| 5 | 21D-09-24190 | NUT | F80211- | |
| 6 | 42N-856-1450 | PIN | F80211- | |
| 7 | 42N-856-1790 | PIN | F80211- | |
| 8 | 01253-71210 | BOLT | F80211- | |
| 9 | 21D-09-24200 | NUT | F80211- | |
| 10 | 201-70-23140 | SPACER, 1.000 MM | F80211- | |
| 11 | 42N-856-1550 | CLAMP | F80301- | |
| 12 | 01643-31032 | WASHER | F80301- | |
| 13 | 01010-81020 | BOLT | F80301- | |
| 14 | 22C-70-31510 | SPACER, 1.000 MM | F80211- | |
| SEE FIG. 7510 |
