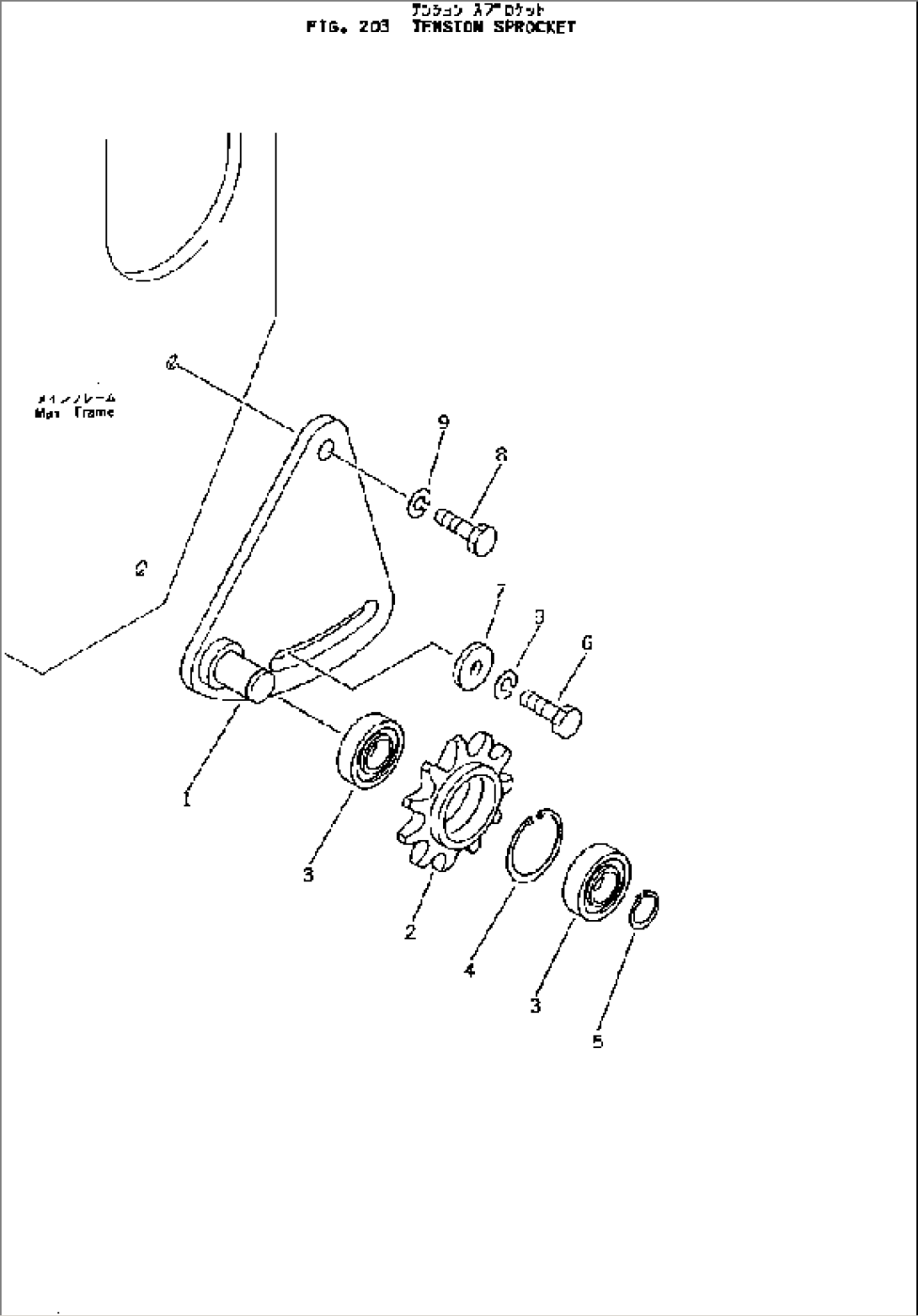

| Item | Part No. | Part Name | Qty | Serial No. |
| 257-30-24100 | TENSION ASS'Y | 1501- | ||
| 1 | 257-30-24200 | BRACKET | 1501- | |
| 2 | 266-30-44310 | SPROCKET | 1001- | |
| 3 | 06006-06206 | BEARING | 1001- | |
| 4 | 04065-06220 | RING,SNAP | 1001- | |
| 5 | 04064-03015 | RING,SNAP | 1001- | |
| 6 | 01010-31640 | BOLT | 1501- | |
| 7 | 268-40-12410 | WASHER | 1001- | |
| 8 | 01010-31635 | BOLT | 1001- | |
| 9 | 01602-01648 | WASHER,SPRING | 1001- |
